CS-330 T - Echo Chainsaw (SN: C09613001001 - C09613999999) Flywheel, Ignition Parts Diagram

Model CS-330T Dimensions: 10.9 x 9.7 x 8.4 in (277 x 247 x 214 mm) Weight (dry, no chain/guide bar): 3.6 kg (7.9 lb) Displacement: 32.6 cc (1.989 cu in) Engine: air-cooled, 2-stroke, single-cylinder, 50:1 centrifugal clutch Ignition: NGK BPM-8Y 310 CDI Starter: recoil, automatic clutch, Echo Power Blend(TM) Mixture ratio: 2 400-2 800:1 (air/fuel) Idle rpm: 2 400-2 800; WOT rpm: 13 000-14 000 Fuel tank: 310 ml (10.5 fl oz) Oil tank: 290 ml (9.8 fl oz) - auto-pump, adjustable Guide bar: standard 14 in. or 16 in.; optional 12 in. Chain: optional 12, 14, 16 in. Features: front hand guard, anti-vibration, chain brake lever, catalytic muffler. Engine family: 6exhs.0334kb.

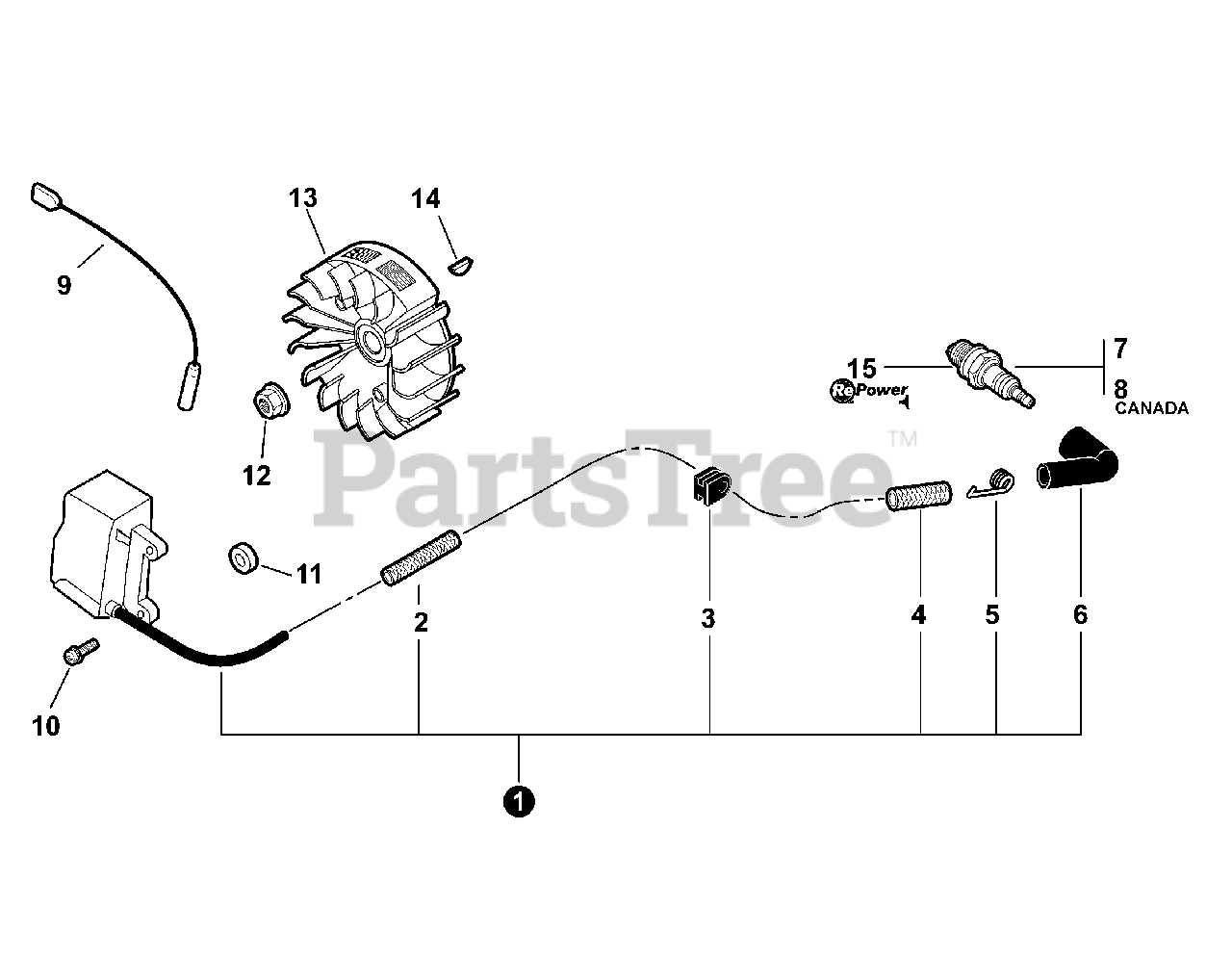

Flywheel, Ignition Parts Diagram

  • Title

1

Echo A411000242

COIL ASSY, IGNITION

Note: Includes Items 2-6

$78.99

$

In Stock, only 2 left!

0

2

Echo P003001450

TUBE, INSULATOR

$5.99

$

Usually ships in 2-4 days

0

3

Echo 15611004920

GROMMET

$0.99

$

In Stock, Qty 20+

0

4

Echo P003001440

TUBE, INSULATOR

$7.99

$

Usually ships in 2-4 days

0

5

Echo A426000020

TERMINAL, SPARK PLUG

$1.49

$

In Stock, only 1 left!

0

6

Echo A427000020

CAP, SPARK PLUG

$7.49

$

Usually ships in 2-4 days

0

7

Echo 15901019830

SPARK PLUG - BPM8Y

$3.99

$

In Stock, Qty 20+

0

8

Echo A425000000

SPARK PLUG - BPMR8Y

Note: Included In RePower Tune-up kit

$3.99

$

In Stock, Qty 20+

0

9

Echo V485000590

LEAD - IGNITION

$4.99

$

Usually ships in 2-4 days

0

10

Echo 90023805022

SCREW 5×22

$0.99

$

In Stock, only 4 left!

0

11

Echo 15011716430

WASHER 5.2×12×3

$3.49

$

In Stock, Qty 20+

0

12

Echo 90051500008

NUT, FLANGE M8

$1.99

$

In Stock, only 4 left!

0

13

Echo A409000241

FLYWHEEL

$66.99

$

Usually ships in 2-4 days

0

14

Echo 10014212330

KEY, WOODRUFF

$1.99

$

In Stock, Qty 20+

0

15

Echo 90159

TUNE-UP KIT - REPOWER
(Superseded to 90159Y)

Note: See RePower Maintenance

$

$

Not available
