CS-330 T - Echo Chainsaw (SN: C33914001001 - C33914999999) Fuel System Parts Diagram

Chainsaw

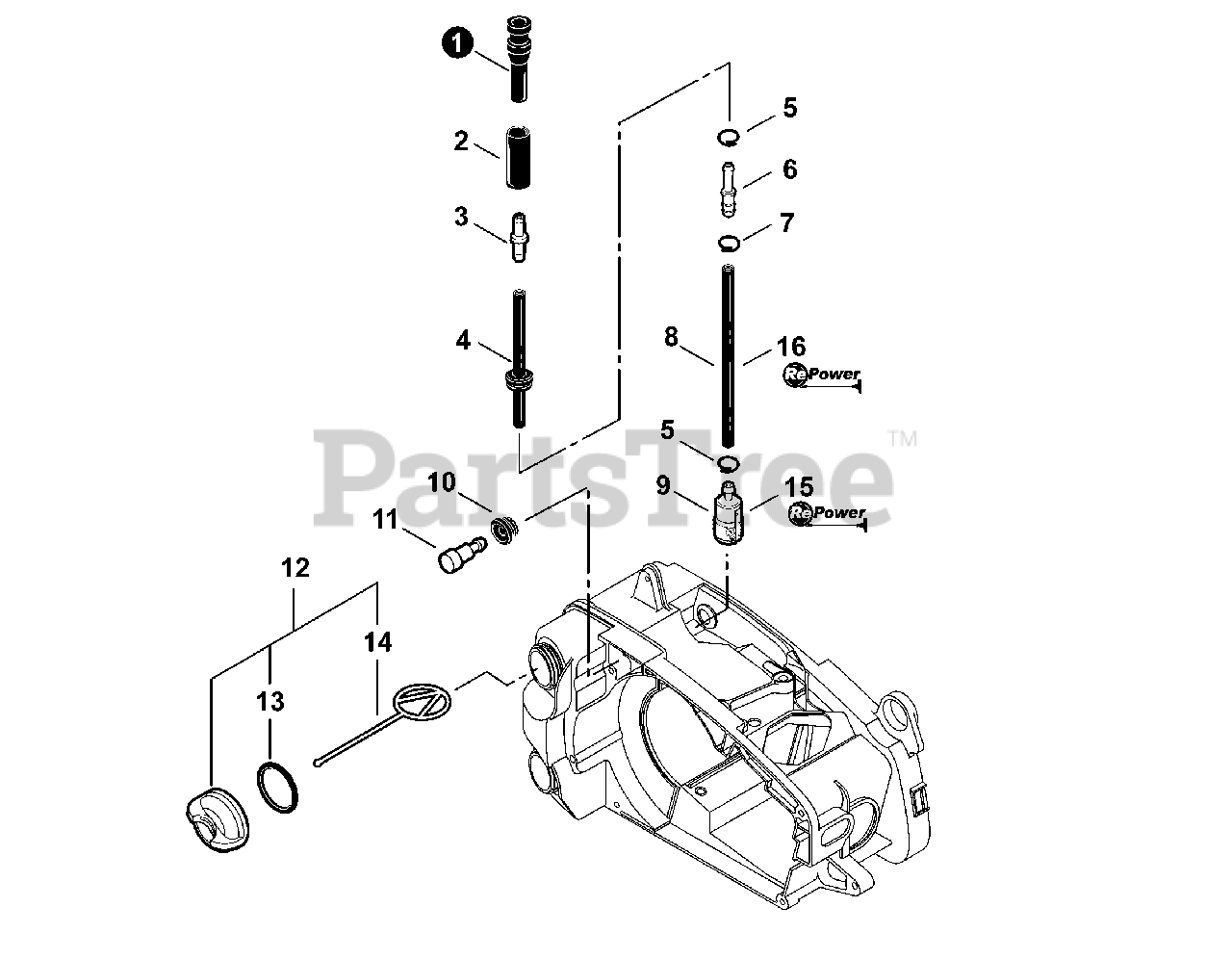

Fuel System Parts Diagram

  • Title

1

Echo V470000691

PIPE, FUEL

$3.49

$

In Stock, Qty 5

0

2

Echo V475007380

TUBE 6.5×30

$5.49

$

Usually ships in 2-4 days

0

3

Echo V186000510

CONNECTOR, PIPE

$1.99

$

In Stock, Qty 20+

0

4

Echo V470000712

PIPE ASSY, FUEL
(Superseded to V470000714)

$8.99

$

In Stock, only 1 left!

0

5

Echo V490001271

CLIP 5

$0.99

$

In Stock, Qty 5

0

6

Echo V186000520

CONNECTOR, PIPE 5×3.5

$0.99

$

In Stock, Qty 20+

0

7

Echo V490001240

CLIP 6

$0.99

$

In Stock, Qty 20+

0

8

Echo V471003820

PIPE, FUEL 3×5×95

$

$

Not available

9

Echo 13120514931

FILTER, FUEL
(Superseded to A369000470)

$9.99

$

In Stock, Qty 20+

0

10

Echo V137000000

GROMMET, FUEL
(Superseded to V137000001)

$1.99

$

In Stock, Qty 20+

0

11

Echo A356000031

VENT ASSY

$9.49

$

In Stock, Qty 20+

0

12

Echo P021038080

CAP ASSY, FUEL - ORANGE

Note: Includes Items 12-13

$7.49

$

In Stock, Qty 8

0

13

Echo V581000590

O-RING

$1.49

$

In Stock, Qty 20+

0

14

Echo A365000050

CONNECTOR, CAP L= 60mm

$2.49

$

In Stock, Qty 6

0

15

Echo 90159

TUNE-UP KIT - REPOWER
(Superseded to 90159Y)

$27.99

$

In Stock, only 2 left!

0

16

Echo 90014

PIPE, BULK - REPOWER 3×5mm BLACK

$50.99

$

In Stock, Qty 10

0
