CS-3400 - Echo Chainsaw (Type 1) Clutch Assembly, Bar & Chain, Tools Parts Diagram

CS-3400 specs: external 260x230x220 mm, weight 3.4 kg (saw only). Fuel tank 250 ml, oil 150 ml (50:1 mix). Guide bar 300 / 350 mm, chain pitch 9.53 mm, gauge 1.27 mm. Engine 2-cycle single-cyl, 30.1 cc, 11000 rpm, 1.04 kW, 1.18 kW max. Fuel consumption 0.61 kg/h, 0.63 g/(kWh). Sound 96.8 dB, 97.2 dB. Braking time 0.05-0.07 s. Vibration 4.3/5.2 m/s². Options: front guard, throttle lock, chain catcher, anti-vibration, spiked bumper.

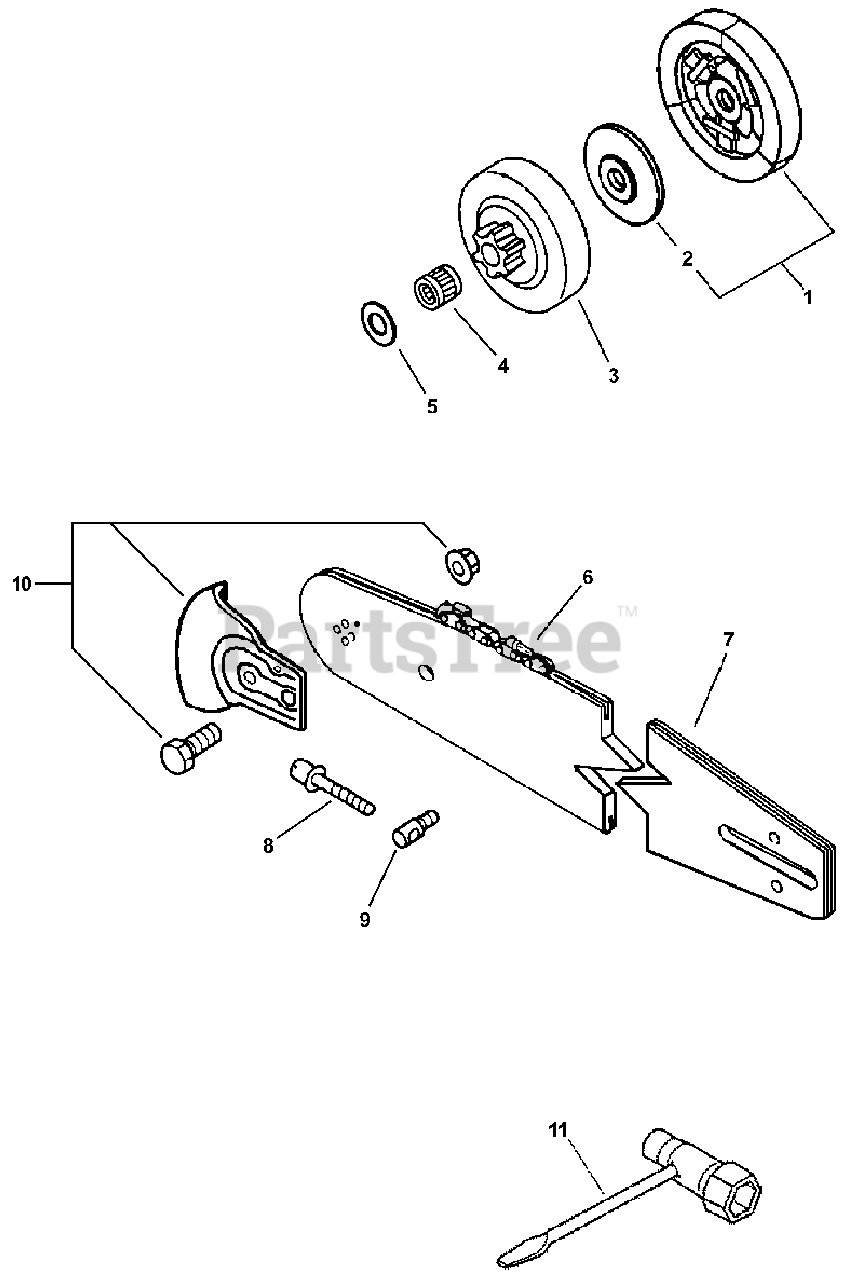

Clutch Assembly, Bar & Chain, Tools Parts Diagram

  • Title

1

Echo P021000260

CLUTCH ASSY
(Superseded to P021005900)

Note: Includes ITEM 2

$48.99

$

In Stock, only 4 left!

0

2

Echo 17501939430

PLATE, CLUTCH

$9.99

$

In Stock, Qty 13

0

3

Echo 17500539133

DRUM, CLUTCH 3/8"

$22.99

$

In Stock, Qty 20+

0

4

Echo 17501235630

BEARING, NEEDLE 10×13×10

$15.99

$

In Stock, Qty 20+

0

5

Echo 175014-39131

WASHER 10.2×24.5×1.2
(Superseded to 17501439131)

$2.99

$

In Stock, Qty 20+

0

6

Echo 91VG45CQ

SAWING CHAIN - 12" -- XTRAGUARD
(Superseded to 91PX45CQ)

Note: GAUGE: .050" / PITCH: .375" Low Vibration

$27.99

$

In Stock, Qty 11

0

6

Echo 91VG52CQ

SAW CHAIN 14" XTRAGUARD
(Superseded to 91PX52CQ)

Note: GAUGE: .050" / PITCH: .375" Low Vibration

$29.99

$

In Stock, Qty 20+

0

6

Echo 91VG57CQ

SAW CHAIN 16"

Note: GAUGE: .050" / PITCH: .375" Low Vibration

$29.99

$

In Stock, Qty 20+

0

7

Echo 12A0CD3745

GUIDE BAR, 12" DOUBLE-GUARD
(Superseded to 12A0CD3745C)

Note: GAUGE: .050"

$42.99

$

In Stock, Qty 20+

0

7

Echo 14A0CD3752

GUIDE BAR, 14" DOUBLE-GUARD
(Superseded to 14A0CD3752C)

Note: GAUGE: .050"

$53.99

$

In Stock, Qty 20+

0

7

Echo 16A0CD3757

GUIDE BAR, 16" DOUBLE-GUARD

Note: GAUGE: .050"

$56.99

$

In Stock, Qty 20+

0

8

Echo 43301639131

BOLT 5

$5.49

$

In Stock, Qty 20+

0

9

Echo 43301403931

TENSIONER, CHAIN

$5.99

$

In Stock, Qty 20+

0

10

Echo 2894901

KICK GUARD KIT

$5.49

$

Usually ships in 2-4 days

0

11

UNKNOWN

$

$

Not available
