CS-3400 - Echo Chainsaw (Type 1) Engine, Engine Cover Parts Diagram

CS-3400 specs: external 260x230x220 mm, weight 3.4 kg (saw only). Fuel tank 250 ml, oil 150 ml (50:1 mix). Guide bar 300 / 350 mm, chain pitch 9.53 mm, gauge 1.27 mm. Engine 2-cycle single-cyl, 30.1 cc, 11000 rpm, 1.04 kW, 1.18 kW max. Fuel consumption 0.61 kg/h, 0.63 g/(kWh). Sound 96.8 dB, 97.2 dB. Braking time 0.05-0.07 s. Vibration 4.3/5.2 m/s². Options: front guard, throttle lock, chain catcher, anti-vibration, spiked bumper.

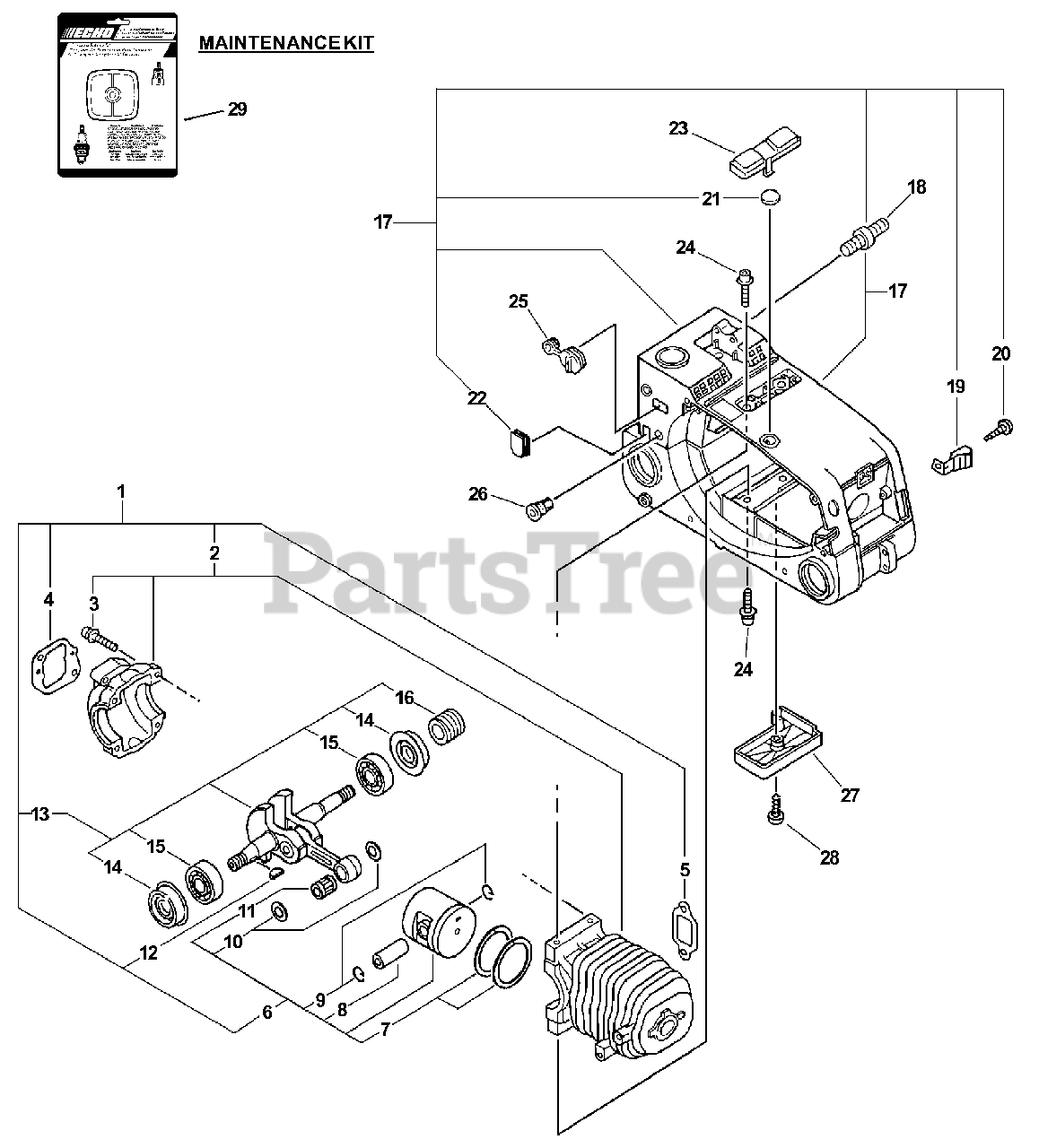

Engine, Engine Cover Parts Diagram

  • Title

1

Echo SB1019

SHORT BLOCK - SB1019
(Superseded to Discontinued)

Note: INCLUDES 2-16

$

$

Not available

2

CRANKCASE SET

Note: Includes ITEM 3

$

$

Not available

3

Echo 900238-05025

SCREW 5×25

$0.99

$

In Stock, Qty 20+

0

4

Echo V103000120

GASKET, INTAKE

$1.99

$

In Stock, Qty 20+

0

5

Echo 14551013931

GASKET, MUFFLER

$2.49

$

In Stock, Qty 20+

0

6

Echo 10000039530

PISTON KIT
(Superseded to 10000039230)

Note: INCLUDES ITEMS 7-10

$100.99

$

Usually ships in 2-4 days

0

7

Echo 10001113330

RING, PISTON

$8.99

$

In Stock, only 1 left!

0

8

Echo 10001315330

PIN, PISTON

$7.99

$

Usually ships in 2-4 days

0

9

Echo 100015-04630

RING, SNAP
(Superseded to 10001504630)

$0.99

$

In Stock, Qty 20+

0

10

Echo 100014-11520

WASHER, THRUST

$3.99

$

In Stock, Qty 8

0

11

Echo 17501203930

BEARING, NEEDLE 8

$13.99

$

In Stock, only 2 left!

0

12

Echo 10014242030

KEY, WOODRUFF
(Superseded to 10014239130)

$3.49

$

In Stock, Qty 6

0

13

Echo 10010039130

CRANKSHAFT ASSY
(Superseded to Discontinued)

Note: Includes ITEMS 14-16

$

$

Not available

14

Echo 10021338330

SEAL, OIL

$6.99

$

Usually ships in 2-4 days

0

15

Echo 9403536201

BEARING, BALL - 6201 C3

$9.99

$

In Stock, Qty 20+

0

16

Echo V652000021

GEAR, WORM

$17.99

$

In Stock, Qty 7

0

17

Echo 10400439231

ENGINE COVER KIT
(Superseded to 10400439233)

Note: INCLUDES ITEMS 18-22

$124.99

$

Usually ships in 2-4 days

0

18

Echo V224000031

BOLT, STUD 6

$1.99

$

In Stock, Qty 20+

0

19

Echo 10421539131

LATCH

$5.49

$

In Stock, only 1 left!

0

20

Echo 90025304010

SCREW 4×10

$0.99

$

In Stock, Qty 9

0

21

Echo 16391139130

PLUG

$2.49

$

In Stock, only 2 left!

0

22

Echo 10403439130

PLUG

$3.99

$

Usually ships in 2-4 days

0

23

Echo 10402939230

PLUG

$10.99

$

In Stock, only 2 left!

0

24

Echo 9111005016

BOLT 5×16

$0.99

$

In Stock, Qty 20+

0

25

Echo 12901039130

GROMMET
(Superseded to 12901039131)

$3.49

$

In Stock, only 2 left!

0

26

Echo 12902339131

GROMMET, IDLE

$2.49

$

In Stock, only 2 left!

0

27

Echo 10404439230

PLUG

$30.99

$

Usually ships in 2-4 days

0

28

Echo 90025604016

SCREW 4×16

$0.99

$

In Stock, Qty 20+

0

29

Echo 90068

TUNE-UP KIT - REPOWER
(Superseded to 90148)

Note: Includes ITEMS 30-32 OPTIONAL

$

$

Not available

30

Echo 13031039131

FILTER, AIR
(Superseded to 13031039132)

Note: OPTIONAL - NOT SHOWN

$13.99

$

In Stock, Qty 20+

0

31

Echo 131205-07320

FILTER, FUEL

Note: OPTIONAL - NOT SHOWN

$6.49

$

In Stock, Qty 20+

0

32

Echo 15901010630

SPARK PLUG - BPM7A
(Superseded to 15901010230)

Note: OPTIONAL - NOT SHOWN

$3.99

$

In Stock, Qty 20+

0
