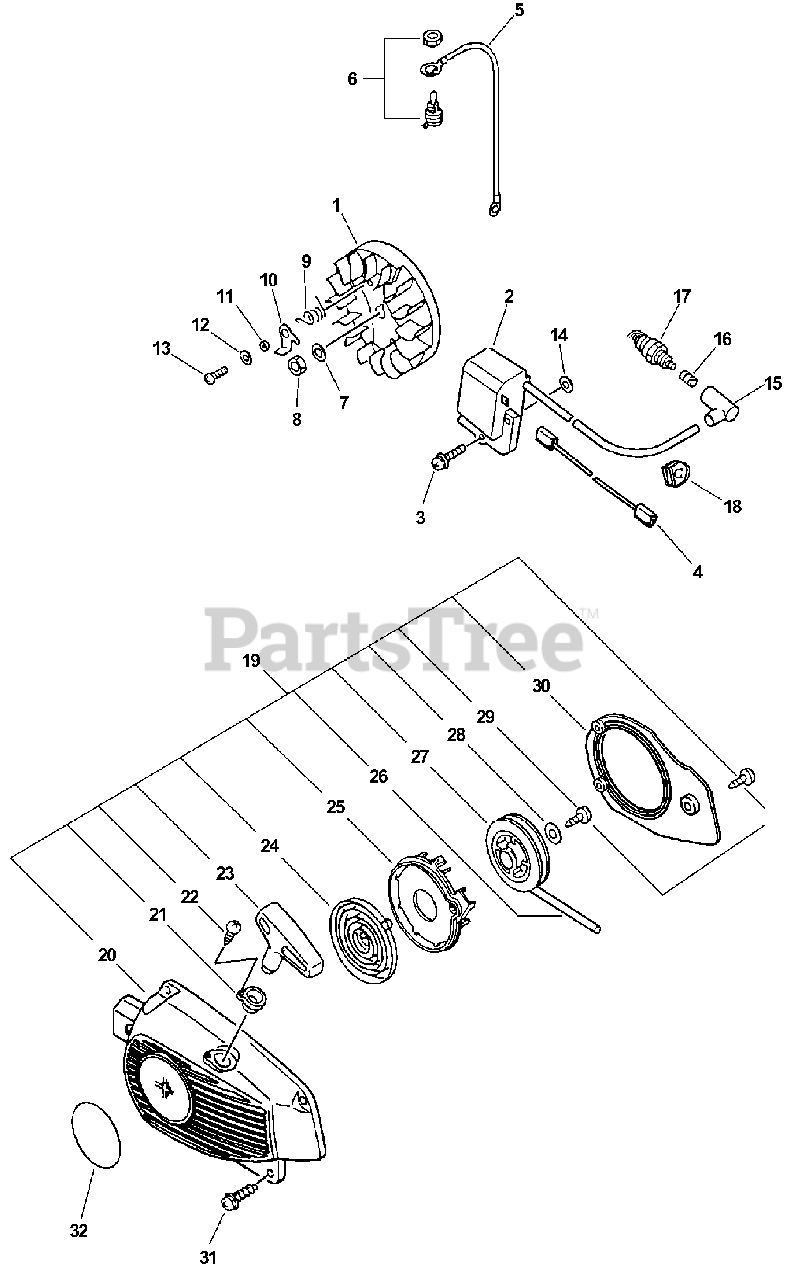

CS-3400 - Echo Chainsaw (Type 1E) Ignition, Starter Assembly Parts Diagram

Chainsaw (Type 1E)

Ignition, Starter Assembly Parts Diagram

  • Title

1

Echo 15680035630

FLYWHEEL

Note: S/N 001001-550497, CANADA - SN 001001-002488 MAY ONLY BE USED WITH 15662639130 - COIL, IGNITION

$123.99

$

Usually ships in 2-4 days

0

2

Echo 15662639130

COIL, IGNITION

Note: S/N 001001-550497, CANADA - SN 001001-002488 MAY ONLY BE USED WITH 15680035630 - FLYWHEEL

$103.99

$

In Stock, only 3 left!

0

3

Echo 900238-05020

SCREW 5×20

Note: S/N 001001-550497, CANADA - SN 001001-002488

$0.99

$

In Stock, Qty 10

0

1

Echo 15680039233

FLYWHEEL

Note: S/N 550498 & UP, CANADA - SN 002489 & UP MAY ONLY BE USED WITH 15662639230 - COIL, IGNITION

$73.99

$

Usually ships in 2-4 days

0

2

Echo A411000150

COIL, IGNITION

Note: S/N 550498 & UP, CANADA - SN 002489 & UP MAY ONLY BE USED WITH 15680039230 - FLYWHEEL

$90.99

$

In Stock, only 1 left!

0

3

Echo 90023805022

SCREW 5×22

Note: S/N 550498 & UP, CANADA - SN 002489 & UP

$0.99

$

In Stock, only 4 left!

0

4

Echo 16201039431

LEAD - IGNITION L= 95

Note: S/N 550498 & UP, CANADA - SN 002489 & UP

$3.49

$

In Stock, only 2 left!

0

5

Echo 16201039131

LEAD - GROUND L= 100

$6.49

$

In Stock, Qty 7

0

6

Echo 16340019830

SWITCH, ON-OFF

$11.99

$

In Stock, only 2 left!

0

7

Echo 90060000008

WASHER 8.5×16×1.2

$0.99

$

Usually ships in 2-4 days

0

8

Echo 90050000008

NUT M8

$0.99

$

In Stock, Qty 20+

0

9

Echo 17723435430

SPRING, TORSION

$2.99

$

In Stock, only 4 left!

0

10

Echo A514000000

PAWL, STARTER
(Superseded to A514000001)

$3.99

$

In Stock, Qty 15

0

11

Echo 17724704630

SPACER 5.2×8×2.1

$2.49

$

In Stock, only 4 left!

0

12

Echo 900603-00005

WASHER 5.5×12×0.8

$0.99

$

In Stock, Qty 20+

0

13

Echo 90021605012

SCREW 5×12

$0.99

$

In Stock, only 2 left!

0

14

Echo 15011716430

WASHER 5.2×12×3

$3.49

$

In Stock, Qty 5

0

15

Echo 159012-01620

CAP, SPARK PLUG

$1.99

$

In Stock, only 2 left!

0

16

Echo 159011-03432

TERMINAL, SPARK PLUG
(Superseded to 15901103432)

$1.99

$

In Stock, Qty 20+

0

17

Echo 15901010630

SPARK PLUG - BPM7A
(Superseded to 15901010230)

$3.99

$

In Stock, Qty 20+

0

17

Echo 15901010230

SPARK PLUG - BPMR7A

Note: CANADA MODELS

$3.99

$

In Stock, Qty 20+

0

18

Echo 15611004920

GROMMET

$0.99

$

In Stock, Qty 20+

0

19

Echo 17720039631

STARTER ASSY
(Superseded to Discontinued)

Note: INCLUDES ITEMS 20-30

$

$

Not available

20

Echo 17723239532

CASE, STARTER
(Superseded to 17723239630)

$35.99

$

In Stock, only 4 left!

0

21

Echo 17722739131

GUIDE, ROPE

$4.49

$

In Stock, only 2 left!

0

22

Echo 90029603014

SCREW 3×14

$0.99

$

In Stock, Qty 7

0

23

Echo 17722835431

GRIP, STARTER
(Superseded to 17722835432)

$9.99

$

In Stock, Qty 16

0

24

Echo 17722039631

SPRING, RECOIL
(Superseded to P021045370)

$18.99

$

Usually ships in 2-4 days

0

25

Echo 17722139630

PLATE, STARTER

$3.99

$

In Stock, only 1 left!

0

26

Echo 17722606530

ROPE, STARTER 3.0×850

Note: RePower BULK OPTION: 99944445000

$7.49

$

In Stock, Qty 5

0

27

Echo 17721535632

REEL, ROPE

$13.99

$

In Stock, only 1 left!

0

28

Echo 17721404630

WASHER 4.1×15.5×1T

$0.99

$

In Stock, Qty 5

0

29

Echo 90025304014

SCREW 4×14

$0.99

$

In Stock, only 2 left!

0

31

Echo 90025604016

SCREW 4×16

$0.99

$

In Stock, Qty 20+

0

32

Echo 89011849330

LABEL, ECHO

$7.49

$

In Stock, only 2 left!

0
