CS-341 - Echo Chainsaw (SN: 02001001 - 02999999) Intake S/N: 02001001 - 02008444 Parts Diagram

Chainsaw

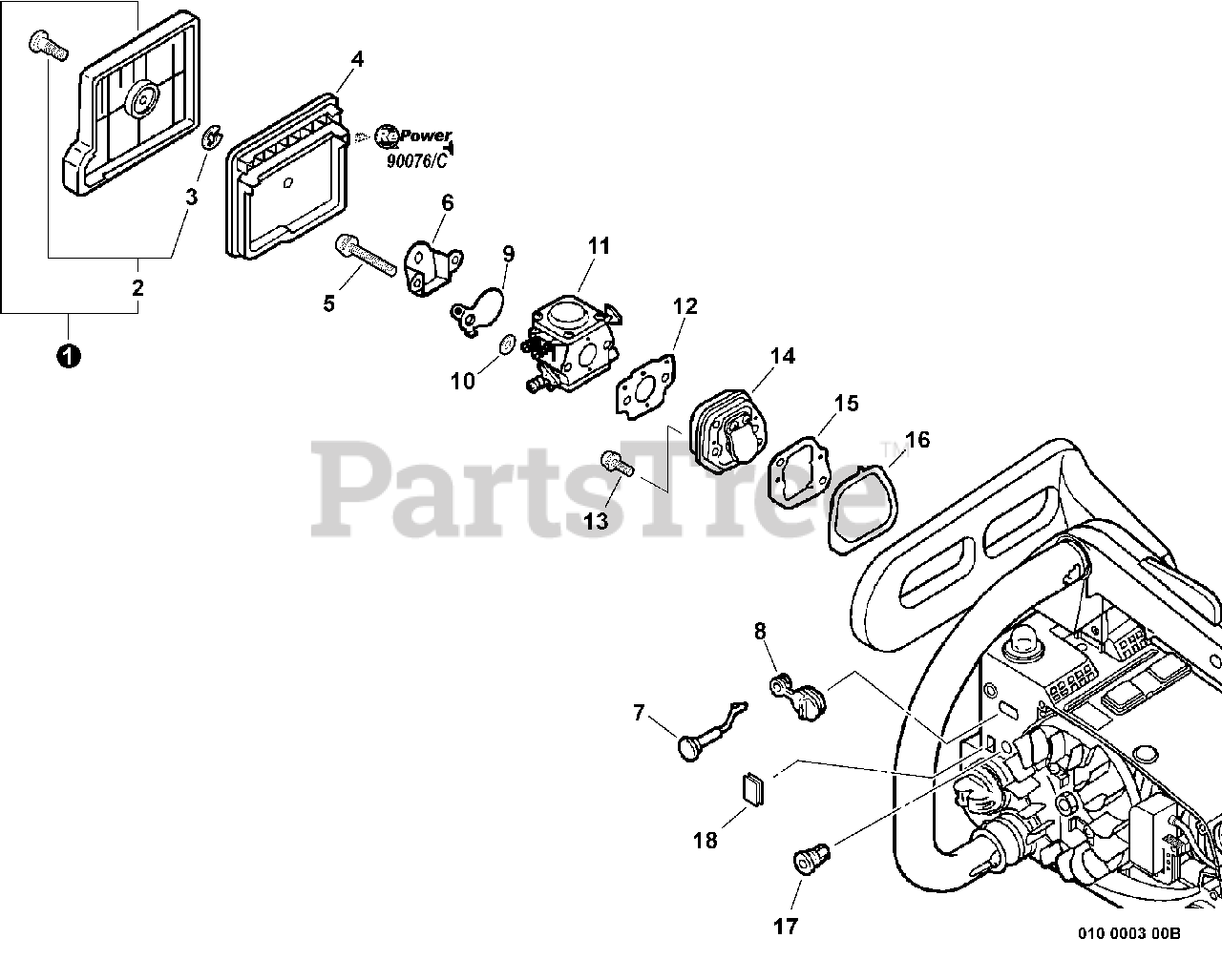

Intake S/N: 02001001 - 02008444 Parts Diagram

  • Title

1

Echo 13030239136

AIR FILTER COVER ASSY

Note: Includes ITEM 2-3

$21.99

$

In Stock, Qty 5

0

2

Echo 13040613933

THUMBSCREW

Note: Includes ITEM 3

$4.99

$

In Stock, Qty 7

0

3

Echo 90070000004

RING, RETAINING - 4

$0.99

$

In Stock, Qty 20+

0

4

Echo 13031039132

FILTER, AIR

Note: Included In RePower KIT

$13.99

$

In Stock, Qty 20+

0

5

Echo 90023805045

SCREW - 5X45

$0.99

$

In Stock, Qty 8

0

6

Echo 12901139130

PLATE, PREVENT

$6.49

$

In Stock, only 2 left!

0

7

Echo 17851039230

ROD, CHOKE

$6.99

$

In Stock, only 2 left!

0

8

Echo 17881039630

GROMMET

$6.99

$

In Stock, Qty 6

0

9

Echo 17851539130

SHUTTER, CHOKE

$2.99

$

In Stock, only 2 left!

0

10

Echo 17851603930

WASHER
(Superseded to 17851600830)

$0.99

$

In Stock, Qty 20+

0

11

------------------

CARBURETOR

Note: See Carburetor Diagram For Details

$

$

Not available

12

Echo V103000021

GASKET, INTAKE

$1.49

$

In Stock, Qty 20+

0

13

Echo 90025005018

SCREW - 5X18

$0.99

$

In Stock, Qty 7

0

14

Echo P021000010

INSULATOR KIT

$24.99

$

In Stock, only 2 left!

0

15

Echo V103000120

GASKET, INTAKE

$1.99

$

In Stock, Qty 20+

0

16

Echo 13001239131

SEAL
(Superseded to 13001239132)

$3.49

$

In Stock, Qty 9

0

17

Echo 12902339131

GROMMET

$2.49

$

In Stock, only 2 left!

0

18

Echo 10403439130

PLUG

$3.99

$

Usually ships in 2-4 days

0

19

Echo 90076

RePower TUNE-UP KIT
(Superseded to 90149)

$24.99

$

In Stock, Qty 5

0

19

Echo 90076/C

RePower TUNE-UP KIT
(Superseded to 90149)

Note: CANADA MODELS

$24.99

$

In Stock, Qty 5

0
