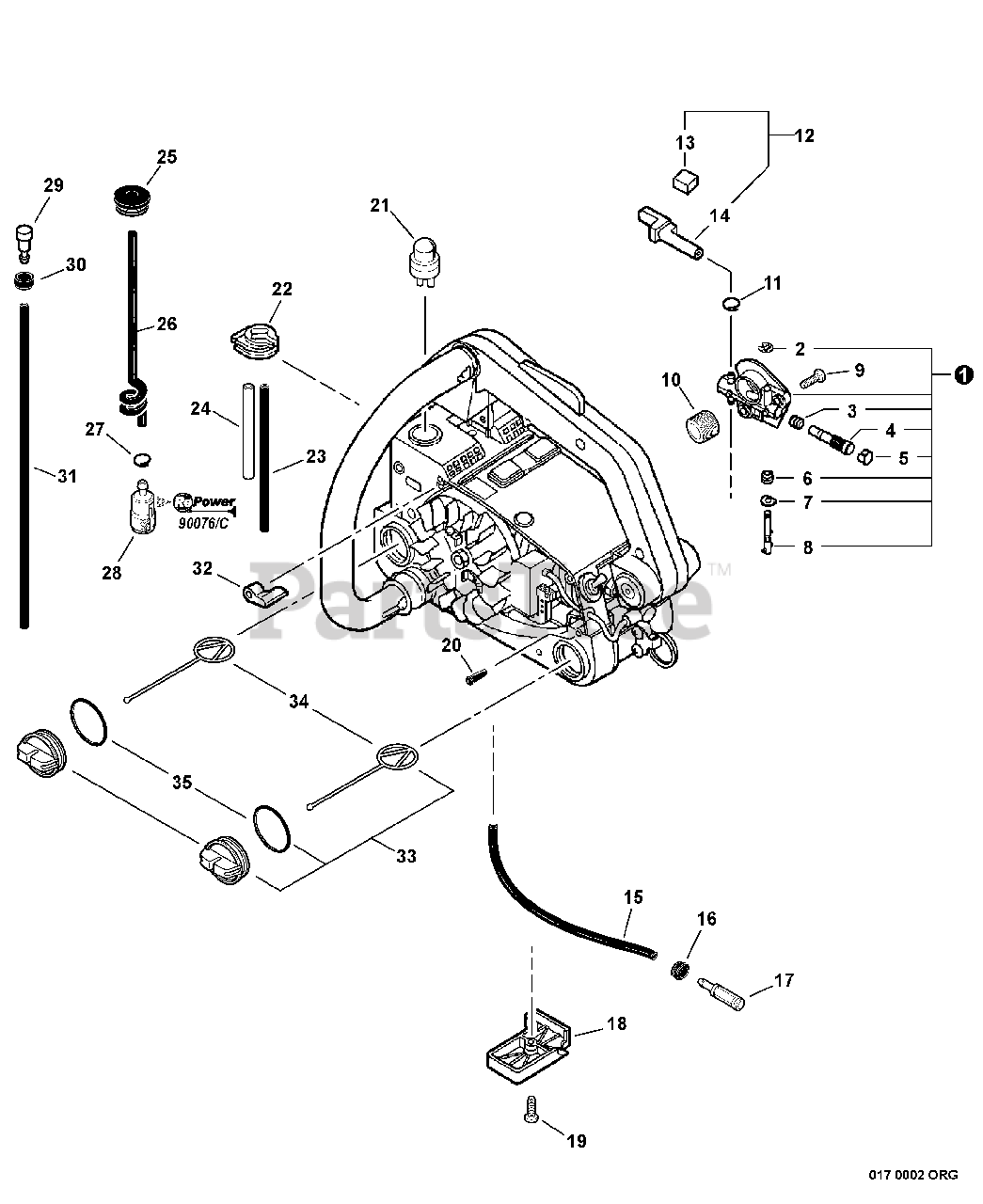

CS-341 - Echo Chainsaw (SN: C07611001001 - C07611999999) Fuel System, Auto Oiler S/N: C07611001001 - C07611021600 Parts Diagram

Chainsaw

Fuel System, Auto Oiler S/N: C07611001001 - C07611021600 Parts Diagram

  • Title

1

Echo 43700239130

AUTO-OILER ASSY

Note: Includes ITEMS 2-8

$83.99

$

In Stock, only 2 left!

0

2

Echo 12312715030

E-RING

$0.99

$

In Stock, Qty 5

0

3

Echo 43701938330

SPRING

$4.49

$

Usually ships in 2-4 days

0

4

Echo 43702437330

PLUNGER ASSY

$28.99

$

Usually ships in 2-4 days

0

5

Echo 43706237330

CAP, OIL PUMP

$4.49

$

In Stock, only 3 left!

0

6

Echo 43701537330

SPRING

$4.49

$

Usually ships in 2-4 days

0

7

Echo 43702937330

WASHER

$3.49

$

In Stock, only 1 left!

0

8

Echo 43701639130

ADJUSTER, OILER

$20.99

$

In Stock, only 2 left!

0

9

Echo 90023505012

SCREW 5×12

$0.99

$

In Stock, Qty 6

0

10

Echo V652000021

GEAR, WORM

$17.99

$

In Stock, only 2 left!

0

11

Echo V490001230

CLIP Ø6.5 MM

$0.99

$

In Stock, Qty 20+

0

12

Echo 43720139131

PIPE KIT, OIL
(Superseded to P100002730)

Note: Includes ITEMS 13-14

$14.99

$

In Stock, only 1 left!

0

13

Echo 43724439130

PAD, FOAM

$0.99

$

Usually ships in 2-4 days

0

14

Echo 43721139133

PIPE, OIL OUTLET
(Superseded to 43721139134)

$2.49

$

In Stock, only 2 left!

0

15

Echo V471000110

PIPE 3×6×115 BLACK
(Superseded to V471000111)

Note: RePower BULK OPTION: 90015

$2.99

$

In Stock, Qty 5

0

16

Echo V137000010

GROMMET

$2.99

$

In Stock, only 1 left!

0

17

Echo 43620502832

FILTER, OIL

$8.99

$

Usually ships in 2-4 days

0

18

Echo 10404439130

COVER, BOTTOM

$10.99

$

Usually ships in 2-4 days

0

19

Echo 90025604016

SCREW 4×16

$0.99

$

In Stock, Qty 20+

0

20

Echo 436114-13930

VENT ASSY
(Superseded to 43611413930)

$7.49

$

In Stock, Qty 6

0

21

Echo 12318139130

BULB, PURGE

$8.49

$

In Stock, Qty 20+

0

22

Echo 13275839131

BRACKET, BULB

$12.99

$

In Stock, only 2 left!

0

23

Echo V471001200

PIPE, FUEL 3x-5x-70 BLACK
(Superseded to V471001201)

Note: RePower BULK OPTION: 90014

$2.49

$

In Stock, Qty 20+

0

24

Echo 13271639130

PIPE, FUEL 2×4×42 CLEAR

Note: RePower BULK OPTION: 90018

$1.99

$

In Stock, Qty 20+

0

25

Echo 13211539130

GROMMET, FUEL
(Superseded to 13211539131)

$3.49

$

In Stock, Qty 20+

0

26

Echo 13201239130

PIPE, FUEL 3×6×160
(Superseded to 13201239131)

$7.99

$

In Stock, Qty 17

0

27

Echo V490001230

CLIP Ø6.5 MM

$0.99

$

In Stock, Qty 20+

0

28

Echo 131205-07320

FILTER, FUEL

Note: Included In RePower KIT

$6.49

$

In Stock, Qty 20+

0

29

Echo A356000031

VENT ASSY

$9.49

$

In Stock, Qty 20+

0

30

Echo 13132839130

HOLDER, VENT

$9.99

$

In Stock, only 2 left!

0

31

Echo 13201004920

PIPE, FUEL 3×5×150 BLACK
(Superseded to 13201004921)

Note: RePower BULK OPTION: 90014

$1.99

$

In Stock, Qty 6

0

32

Echo 13033639530

PLUG

$6.99

$

In Stock, only 2 left!

0

33

Echo P021011590

CAP ASSY, OIL - BLACK

Note: Includes ITEMS 34-35

$11.99

$

In Stock, Qty 5

0

34

Echo A365-000050

CONNECTOR, CAP L= 60 MM
(Superseded to A365000050)

$2.49

$

In Stock, Qty 5

0

35

Echo 90072100025

O-RING 25

$2.99

$

In Stock, Qty 15

0

36

Echo 90076

TUNE-UP KIT
(Superseded to 90149)

$24.99

$

In Stock, only 4 left!

0

36

Echo 90076/C

TUNE-UP KIT
(Superseded to 90149)

Note: CANADA MODELS

$24.99

$

In Stock, only 4 left!

0
