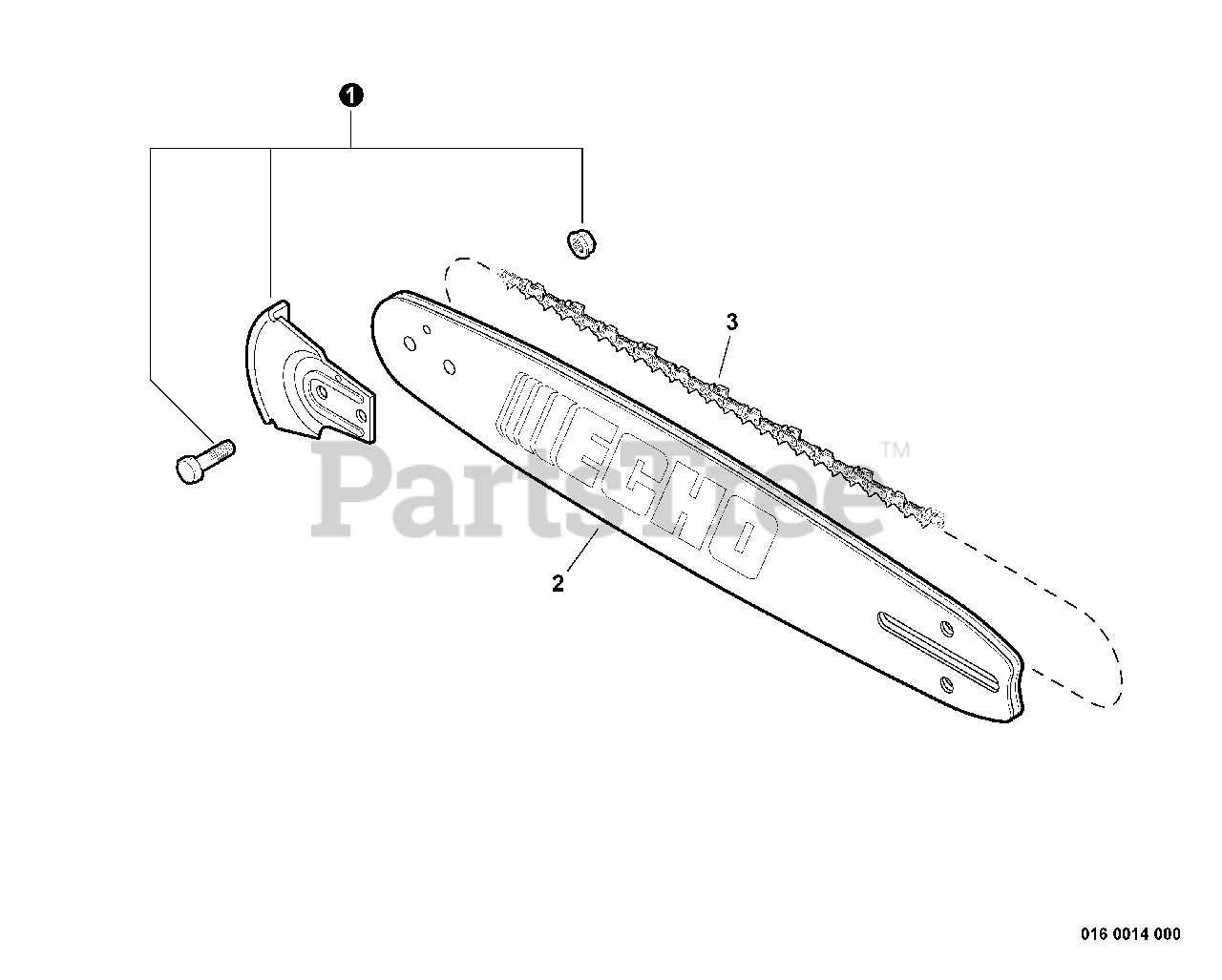

CS-341 - Echo Chainsaw (SN: C08511001001 - C08511999999) Guide Bar, Saw Chain, Kick Guard Parts Diagram

Model CS-341 - Dimensions: 260 x 235 x 220 mm (10.2 x 9.2 x 8.7 in). - Dry head weight: 3.3 kg (7.3 lb). - Engine: 1-cylinder, 2-stroke, air-driven valve, 33.4 cc (2.03 in�). - Carburetor: diaphragm type. - Magneto: CDI system. - Spark plug: NGK BPM-8Y. - Starter: electric. - Transmission: automatic centrifugal clutch. - Fuel mixture: 50:1 gasoline + 2-stroke oil (unleaded 89 octane, no >10 % alcohol or MTBE, no E-15/E-85). - Oil: Power Blend X(TM) universal 2-stroke. - Engine oil tank: 0.26 L (9 fl oz). - Chain & bar oil tank: 0.15 L (5 fl oz). - Chain: 14-in. standard; optional 12-in or 16-in. - Chain type: low-kickback per ANSI B175.1-2000. - Features: safety guard, anti-vibration handle, chain brake, kickback protector, silencer.
