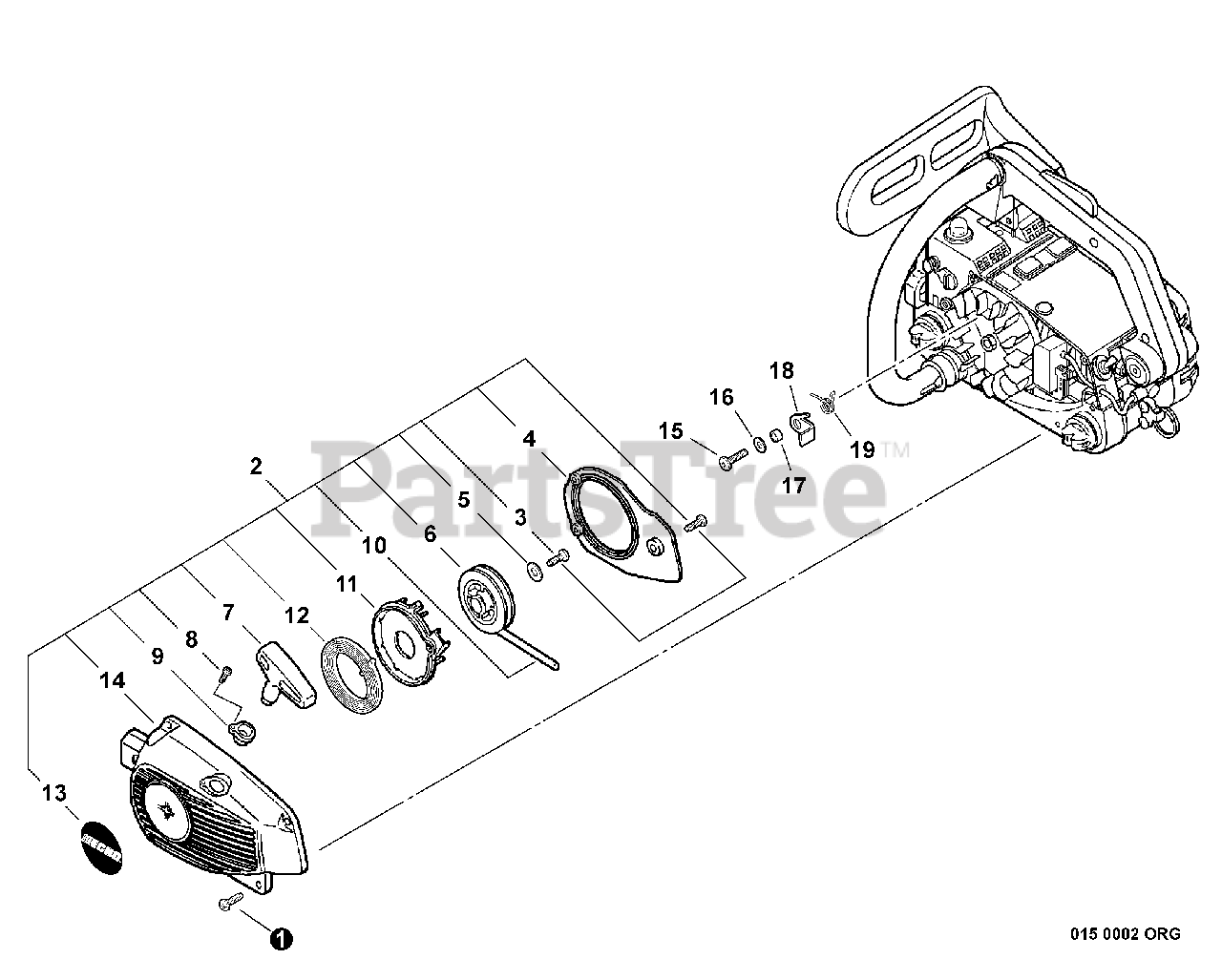

CS-341 - Echo Chainsaw (SN: C23111001001 - C23111999999) Starter Parts Diagram

Chainsaw

Starter Parts Diagram

  • Title

1

Echo 90025604016

SCREW 4×16

$0.99

$

In Stock, Qty 20+

0

2

Echo P021011560

STARTER ASSY

Note: Includes ITEMS 3-14

$72.99

$

In Stock, only 2 left!

0

3

Echo 90025304014

SCREW 4×14

$0.99

$

In Stock, only 2 left!

0

5

Echo 17721404630

WASHER 4.1×15.5×1T

$0.99

$

In Stock, Qty 5

0

6

Echo A506000090

REEL, ROPE

$13.99

$

In Stock, only 1 left!

0

7

Echo 17722835431

GRIP, STARTER
(Superseded to 17722835432)

$9.99

$

In Stock, Qty 16

0

8

Echo 90029603014

SCREW 3×14

$0.99

$

In Stock, Qty 7

0

9

Echo 17722739131

GUIDE, ROPE

$4.49

$

In Stock, only 2 left!

0

10

Echo 17722606530

ROPE, STARTER 3.0×850

Note: RePower BULK OPTION: 99944445000

$7.49

$

In Stock, Qty 5

0

11

Echo 17722139630

PLATE, STARTER

$3.99

$

In Stock, only 1 left!

0

12

Echo 17722039631

SPRING, RECOIL
(Superseded to P021045370)

$18.99

$

Usually ships in 2-4 days

0

13

Echo 89011849330

LABEL, ECHO

$7.49

$

In Stock, only 2 left!

0

14

Echo A500000460

CASE, STARTER

$24.99

$

Usually ships in 2-4 days

0

15

Echo 90021605012

SCREW 5×12

$0.99

$

In Stock, only 2 left!

0

16

Echo 900603-00005

WASHER 5.5×12×0.8

$0.99

$

In Stock, Qty 20+

0

17

Echo 17724704630

SPACER 5.2×8×2.1

$2.49

$

In Stock, only 4 left!

0

18

Echo A514000000

PAWL, STARTER
(Superseded to A514000001)

$3.99

$

In Stock, Qty 15

0

19

Echo 17723435430

SPRING, TORSION

$2.99

$

In Stock, only 4 left!

0
