CS-341 - Echo Chainsaw (SN: C24912001001 - C24912999999) Starter Parts Diagram

Chainsaw

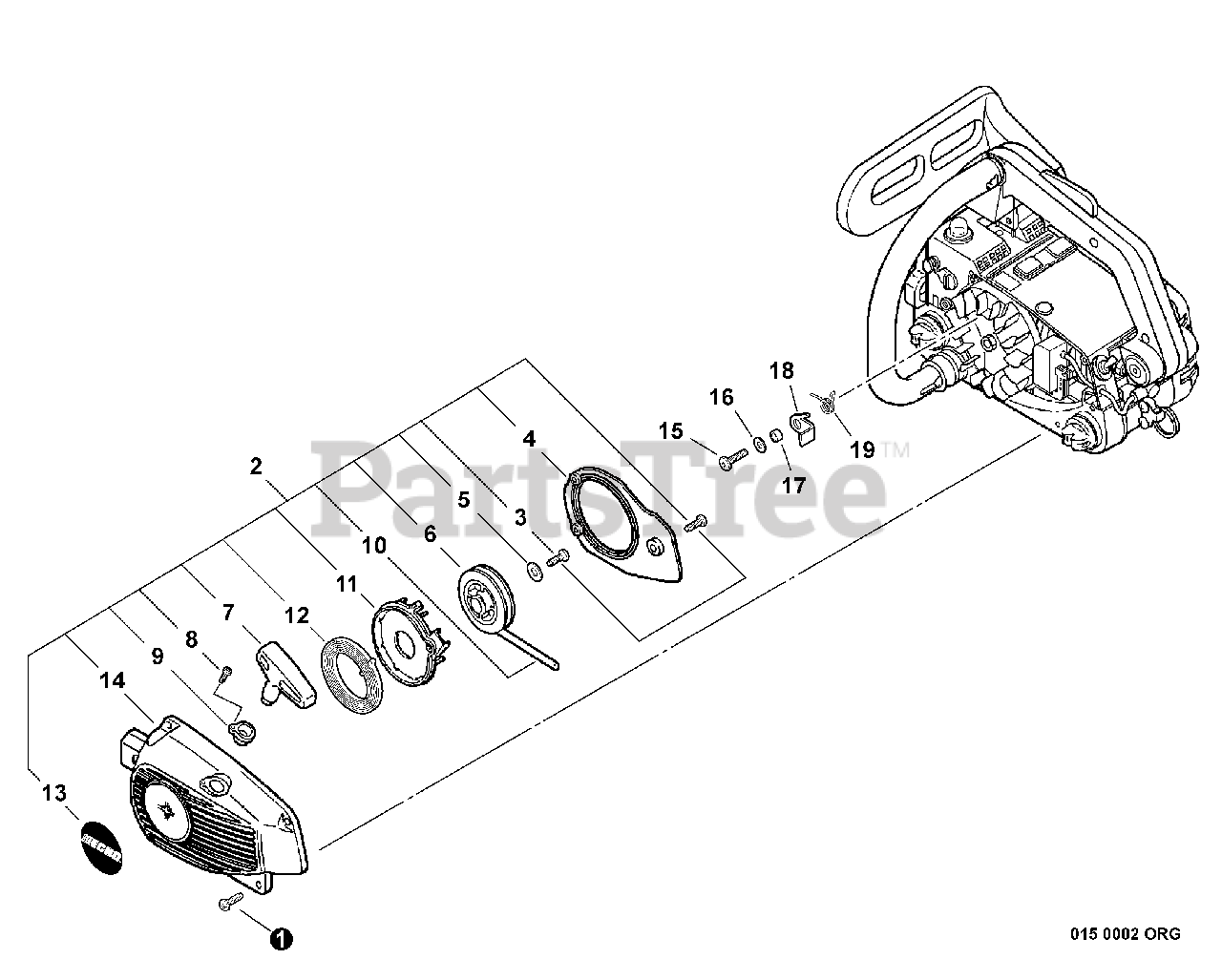

Starter Parts Diagram

  • Title

1

Echo 90025604016

SCREW - 4X16

$0.99

$

In Stock, Qty 16

0

2

Echo P021011560

STARTER ASSY

Note: Includes ITEMS 3-14

$66.99

$

In Stock, only 1 left!

0

3

Echo 90025304014

SCREW - 4X14

$0.99

$

In Stock, Qty 7

0

5

Echo 17721404630

WASHER

$0.99

$

In Stock, Qty 6

0

6

Echo A506000090

REEL, ROPE

$12.99

$

In Stock, only 2 left!

0

7

Echo 17722835431

GRIP, STARTER
(Superseded to 17722835432)

$9.49

$

In Stock, Qty 20+

0

8

Echo 90029603014

SCREW - 3X14

$0.99

$

Usually ships in 2-4 days

0

9

Echo 17722739131

GUIDE, ROPE

$4.49

$

In Stock, only 2 left!

0

10

Echo 17722606530

ROPE, STARTER - 3X850

Note: RePower BULK OPTION: 99944445000

$6.99

$

In Stock, only 2 left!

0

11

Echo 17722139630

PLATE, STARTER

$3.49

$

In Stock, only 2 left!

0

12

Echo 17722039631

REWIND SPRING ASSY
(Superseded to P021045370)

$17.99

$

In Stock, Qty 14

0

13

Echo 89011849330

LABEL - ECHO

$6.99

$

In Stock, only 2 left!

0

14

Echo A500000460

CASE, STARTER - ORANGE

$22.99

$

Usually ships in 2-4 days

0

15

Echo 90021605012

SCREW - 5X12

$0.99

$

Usually ships in 2-4 days

0

16

Echo 90060300005

WASHER - 5

$0.99

$

In Stock, Qty 20+

0

17

Echo 17724704630

SPACER

$2.49

$

In Stock, Qty 5

0

18

Echo A514000000

PAWL, STARTER
(Superseded to A514000001)

$3.99

$

In Stock, Qty 15

0

19

Echo 17723435430

SPRING, RETURN

$2.49

$

In Stock, only 2 left!

0
