CS-3410 - Echo Chainsaw (SN: C93512001001 - C93512999999) Chain Brake Parts Diagram

Chainsaw

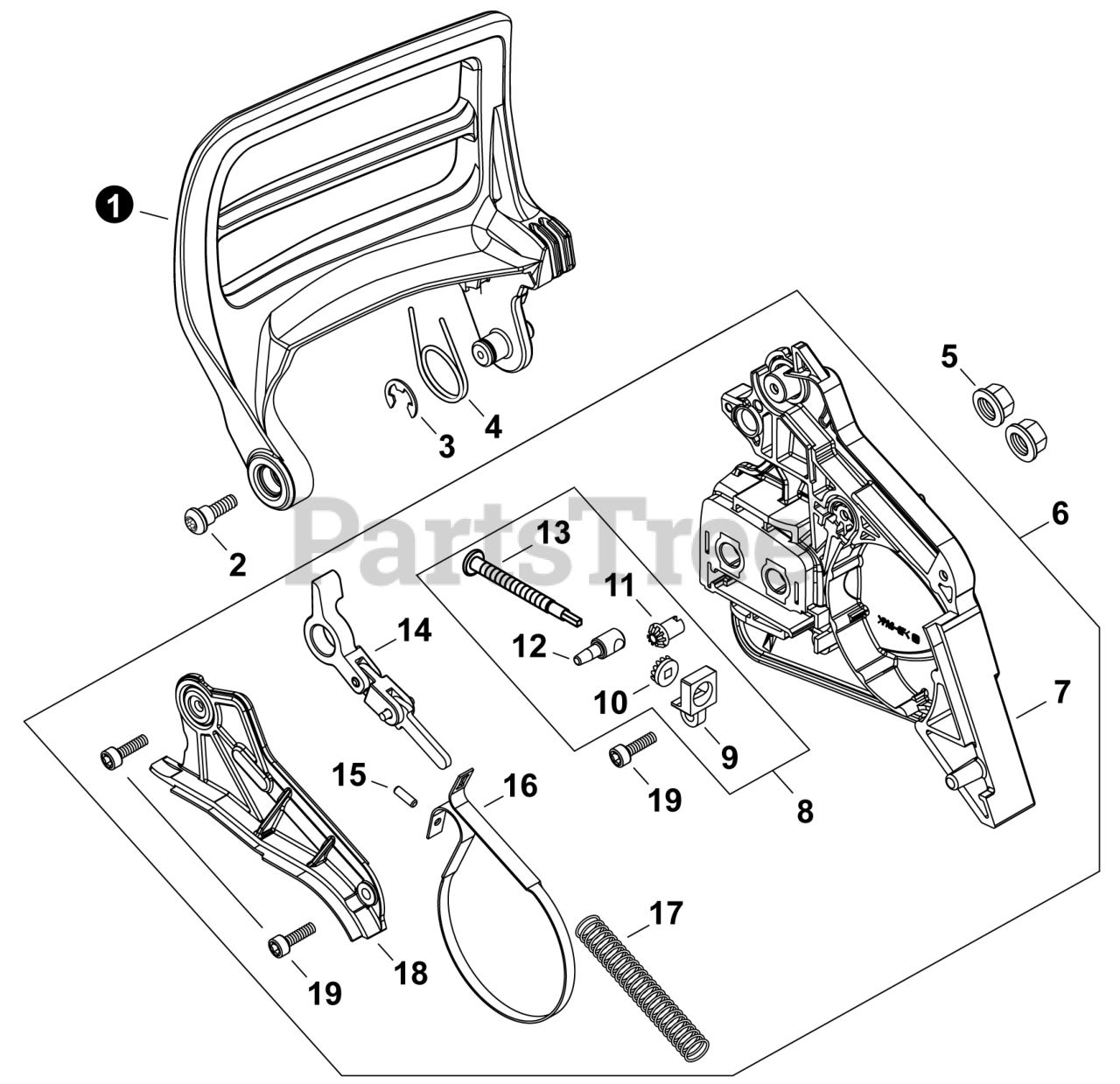

Chain Brake Parts Diagram

  • Title

1

Echo C320000590

LEVER, BRAKE

$12.99

$

In Stock, only 2 left!

0

2

Echo V203002270

BOLT 5x13

$0.99

$

In Stock, Qty 10

0

3

Echo 90070000008

RING, RETAINING - 8

$0.99

$

Usually ships in 2-4 days

0

4

Echo V452000250

SPRING, TORSION

$1.99

$

In Stock, only 1 left!

0

5

Echo V265000200

NUT, FLANGE M8x1.25

$1.99

$

In Stock, Qty 20+

0

6

Echo P100009580

SPROCKET GUARD ASSY

Note: Includes items 7-19

$31.99

$

In Stock, Qty 8

0

7

Echo C300001190

GUARD, SPROCKET

$17.99

$

In Stock, only 2 left!

0

8

Echo P021048510

TENSIONER KIT, CHAIN

Note: Includes items 9-13

$18.99

$

Usually ships in 2-4 days

0

9

Echo V355000140

COLLAR 8

$1.49

$

In Stock, Qty 16

0

10

Echo V651000011

GEAR, BEVEL

$8.99

$

In Stock, Qty 20+

0

11

Echo V651000001

GEAR, BEVEL

$8.99

$

In Stock, Qty 8

0

12

Echo C309000030

TENSIONER, CHAIN

$4.99

$

In Stock, Qty 20+

0

13

Echo V203000110

SCREW, CHAIN TENSION

$6.49

$

In Stock, Qty 20+

0

14

Echo C334000100

CONNECTOR, BRAKE

$17.99

$

In Stock, only 3 left!

0

15

Echo 9305030098

PIN, SPRING 3x9.8

$0.99

$

In Stock, Qty 20+

0

16

Echo C328000030

BAND, BRAKE

$7.49

$

In Stock, Qty 5

0

17

Echo V450000070

SPRING, COMPRESSION

$2.99

$

In Stock, Qty 8

0

18

Echo C345000720

COVER, BRAKE

$2.99

$

Usually ships in 2-4 days

0

19

Echo V804000000

BOLT, TORX 4x12

$0.99

$

In Stock, Qty 5

0
