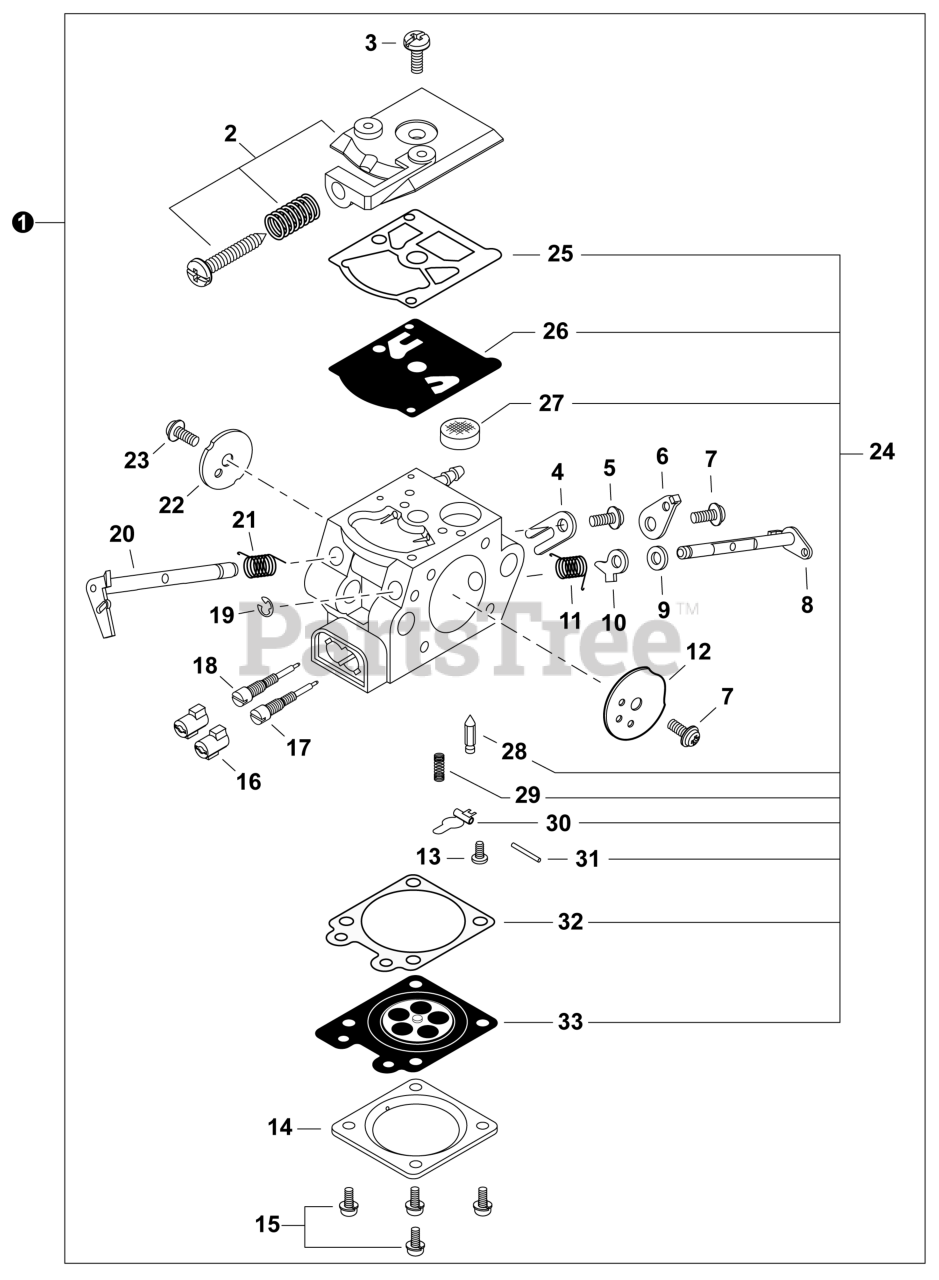

CS-3410 - Echo Chainsaw (SN: C93613001001 - C93613999999) Carburetor Parts Diagram

Chainsaw

Carburetor Parts Diagram

  • Title

1

Echo A021005640

CARBURETOR - GC-05

Note: Includes items 2-33

$51.99

$

Usually ships in 2-4 days

0

2

Echo P006001620

COVER ASSY, FUEL PUMP

$22.99

$

Usually ships in 0 days

0

3

SCREW

$

$

Not available

4

CLIP, SHAFT

$

$

Not available

5

SCREW

$

$

Not available

6

LEVER, THROTTLE

$

$

Not available

7

SCREW

$

$

Not available

8

SHAFT, CHOKE

$

$

Not available

9

WASHER

$

$

Not available

10

LEVER, FAST IDLE

$

$

Not available

11

SPRING

$

$

Not available

12

VALVE, CHOKE

$

$

Not available

13

SCREW

$

$

Not available

14

COVER, METERING DIAPHRAGM

$

$

Not available

15

SCREW

$

$

Not available

16

CAP, LIMITER

$

$

Not available

17

Echo P006001600

NEEDLE, HIGH SPEED

$7.49

$

Usually ships in 0 days

0

18

Echo P006001610

NEEDLE, LOW SPEED

$7.49

$

Usually ships in 0 days

0

19

E-RING

$

$

Not available

20

SHAFT, THROTTLE

$

$

Not available

21

SPRING, THROTTLE RETURN

$

$

Not available

22

VALVE, THROTTLE

$

$

Not available

23

SCREW

$

$

Not available

24

Echo P021054780

REPAIR KIT, CARBURETOR

Note: Includes items 25-33

$14.99

$

Usually ships in 0 days

0

25

GASKET, FUEL PUMP

$

$

Not available

26

DIAPHRAGM, PUMP

$

$

Not available

27

SCREEN, FUEL INLET

$

$

Not available

28

VALVE, INLET NEEDLE

$

$

Not available

29

SPRING, METERING LEVER

$

$

Not available

30

LEVER, METERING

$

$

Not available

31

PIN, METERING LEVER

$

$

Not available

32

GASKET, METERING DIAPHRAGM

$

$

Not available

33

DIAPHRAGM, METERING

$

$

Not available
