CS-3410 - Echo Chainsaw (SN: F06615001001 - F06615999999) Carburetor Parts Diagram

Chainsaw

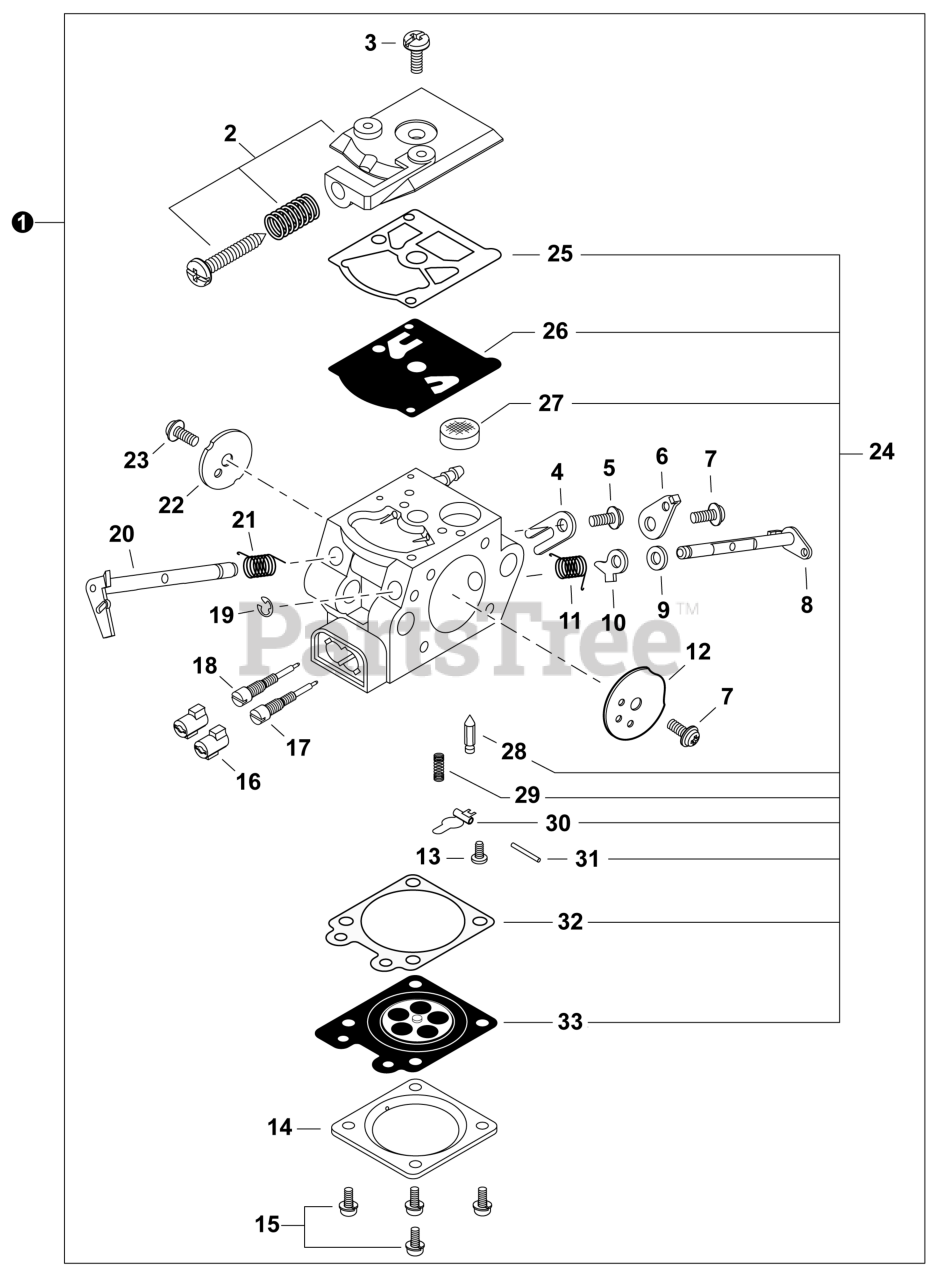

Carburetor Parts Diagram

  • Title

1

Echo A021005640

CARBURETOR - GC-05-1

Note: Includes Items 2-33

$51.99

$

Usually ships in 2-4 days

0

2

Echo P006001620

COVER ASSY, FUEL PUMP

Note: +

$22.99

$

Usually ships in 2-4 days

0

3

--

SCREW

Note: +

$

$

Not available

4

--

CLIP, SHAFT

Note: +

$

$

Not available

5

--

SCREW

Note: +

$

$

Not available

6

--

LEVER, THROTTLE

Note: +

$

$

Not available

7

--

SCREW

Note: +

$

$

Not available

8

--

SHAFT, CHOKE

Note: +

$

$

Not available

9

--

WASHER

Note: +

$

$

Not available

10

--

LEVER, FAST IDLE

Note: +

$

$

Not available

11

--

SPRING

Note: +

$

$

Not available

12

--

VALVE, CHOKE

Note: +

$

$

Not available

13

--

SCREW

Note: +

$

$

Not available

14

--

COVER, METERING DIAPHRAGM

Note: +

$

$

Not available

15

--

SCREW

Note: +

$

$

Not available

16

Echo P006001660

CAP, LIMITER

Note: +

$13.99

$

Usually ships in 2-4 days

0

17

Echo P006001600

NEEDLE, HIGH SPEED

Note: +

$7.49

$

Usually ships in 2-4 days

0

18

Echo P006001610

NEEDLE, LOW SPEED

Note: +

$7.49

$

Usually ships in 2-4 days

0

19

--

E-RING

Note: +

$

$

Not available

20

--

SHAFT, THROTTLE

Note: +

$

$

Not available

21

--

SPRING, THROTTLE RETURN

Note: +

$

$

Not available

22

--

VALVE, THROTTLE

Note: +

$

$

Not available

23

--

SCREW

Note: +

$

$

Not available

24

Echo P021054780

REPAIR KIT, CARBURETOR

Note: Includes Items 25-33+

$14.99

$

Usually ships in 2-4 days

0

25

--

GASKET, FUEL PUMP

Note: ++

$

$

Not available

26

--

DIAPHRAGM, PUMP

Note: ++

$

$

Not available

27

--

SCREEN, FUEL INLET

Note: ++

$

$

Not available

28

--

VALVE, INLET NEEDLE

Note: ++

$

$

Not available

29

--

SPRING, METERING LEVER

Note: ++

$

$

Not available

30

--

LEVER, METERING

Note: ++

$

$

Not available

31

--

PIN, METERING LEVER

Note: ++

$

$

Not available

32

--

GASKET, METERING DIAPHRAGM

Note: ++

$

$

Not available

33

--

DIAPHRAGM, METERING

Note: ++

$

$

Not available
