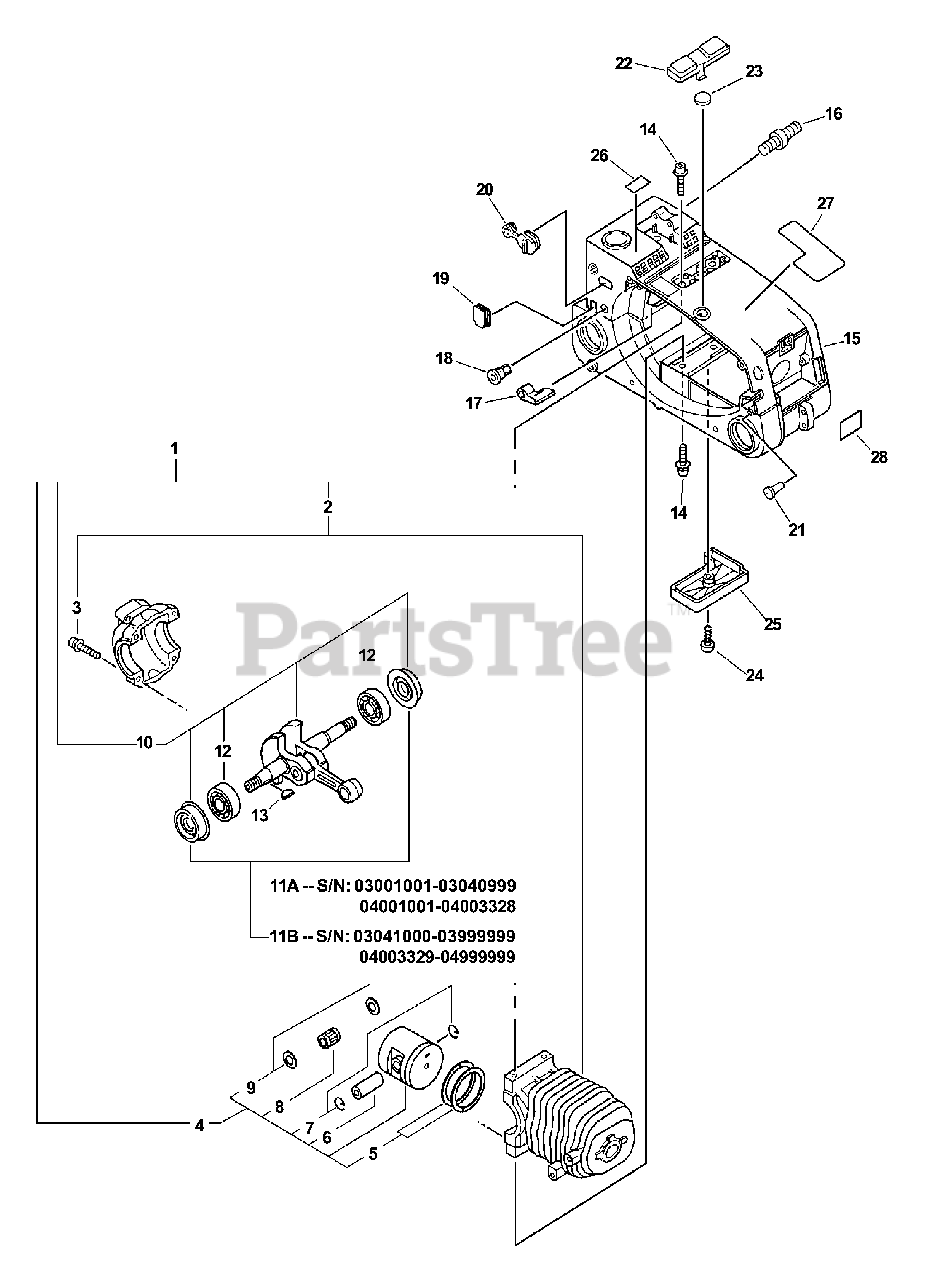

CS-345 - Echo Chainsaw (SN: 03001001 - 03999999) Engine, Short Block -- SB1069, Engine Cover Parts Diagram

Chainsaw

Engine, Short Block -- SB1069, Engine Cover Parts Diagram

  • Title

1

Echo SB1069

SHORT BLOCK

Note: INCLUDES ITEMS 2-12; OPTIONAL ENGINE REPOWER

$265.99

$

Usually ships in 2-4 days

0

2

CRANKCASE SET

Note: Includes ITEM 3

$

$

Not available

3

Echo 900238-05025

SCREW 5×25

$0.99

$

In Stock, Qty 20+

0

4

Echo P021002271

PISTON KIT

Note: INCLUDES ITEMS 5-9

$89.99

$

Usually ships in 2-4 days

0

5

Echo A101000060

RING, PISTON

$7.49

$

Usually ships in 2-4 days

0

6

Echo 10001315330

PIN, PISTON

$7.99

$

Usually ships in 2-4 days

0

7

Echo 100015-04630

RING, SNAP
(Superseded to 10001504630)

$0.99

$

In Stock, Qty 20+

0

8

Echo 17501203930

BEARING, NEEDLE 8

$13.99

$

Usually ships in 2-4 days

0

9

Echo 100014-11520

WASHER, THRUST

$3.99

$

In Stock, only 2 left!

0

10

CRANKSHAFT ASSY

Note: Includes ITEMS 11-12

$

$

Not available

11A

Echo 10021338330

SEAL, OIL

Note: S/N: 03001001-03040999 & 04001001-04003328

$6.99

$

In Stock, only 2 left!

0

11B

Echo V505000011

SEAL, OIL 12

Note: S/N: 03041000-03999999 & 04003329-04999999

$9.49

$

In Stock, Qty 6

0

12

Echo 9403536201

BEARING, BALL - 6201 C3

$9.99

$

In Stock, only 3 left!

0

13

Echo 10014239130

KEY, WOODRUFF

$3.49

$

In Stock, Qty 6

0

14

Echo 9111005016

BOLT 5×16

$0.99

$

In Stock, Qty 20+

0

15

Echo A190000021

COVER, ENGINE - GRAY
(Superseded to A190000022)

$112.99

$

In Stock, only 2 left!

0

16

Echo V224000031

BOLT, STUD 6

$1.99

$

In Stock, Qty 20+

0

17

Echo 13033639530

PLUG

$6.99

$

In Stock, only 2 left!

0

18

Echo 12902339131

GROMMET, IDLE

$2.49

$

In Stock, only 2 left!

0

19

Echo 10403439130

PLUG

$3.99

$

Usually ships in 2-4 days

0

20

Echo 17881039630

GROMMET, CHOKE

$6.99

$

In Stock, only 3 left!

0

21

Echo 436114-13930

VENT ASSY
(Superseded to 43611413930)

$7.49

$

In Stock, Qty 6

0

22

Echo 10402939230

PLUG

$10.99

$

In Stock, only 3 left!

0

23

Echo 16391139130

PLUG

$2.49

$

In Stock, only 2 left!

0

24

Echo 90025604016

SCREW 4×16

$0.99

$

In Stock, Qty 20+

0

25

Echo 10404439230

PLUG

$30.99

$

Usually ships in 2-4 days

0

26

Echo 89016739230

LABEL, PURGE PUMP

$4.99

$

Usually ships in 2-4 days

0

27

Echo 89011439433

LABEL, KICK BACK WARNING
(Superseded to 89011439434)

$

$

Not available

28

Echo X505002310

LABEL, CAUTION - HOT

$2.49

$

In Stock, only 2 left!

0
