CS-3450 - Echo Chainsaw (Type 1) Clutch Assembly, Bar & Chain, Tools Parts Diagram

CS-3450 Technical Data: - Dimensions: 260 x 230 x 220 mm (10.2 x 9.1 x 8.7 in) - Weight (dry, no chain/guide): 3.4 kg (7.5 lb) - Engine: 33.4 cc (2.03 cu in), air-cooled, 2-stroke, single-cylinder, magneto CDI (NGK BPM-7A)

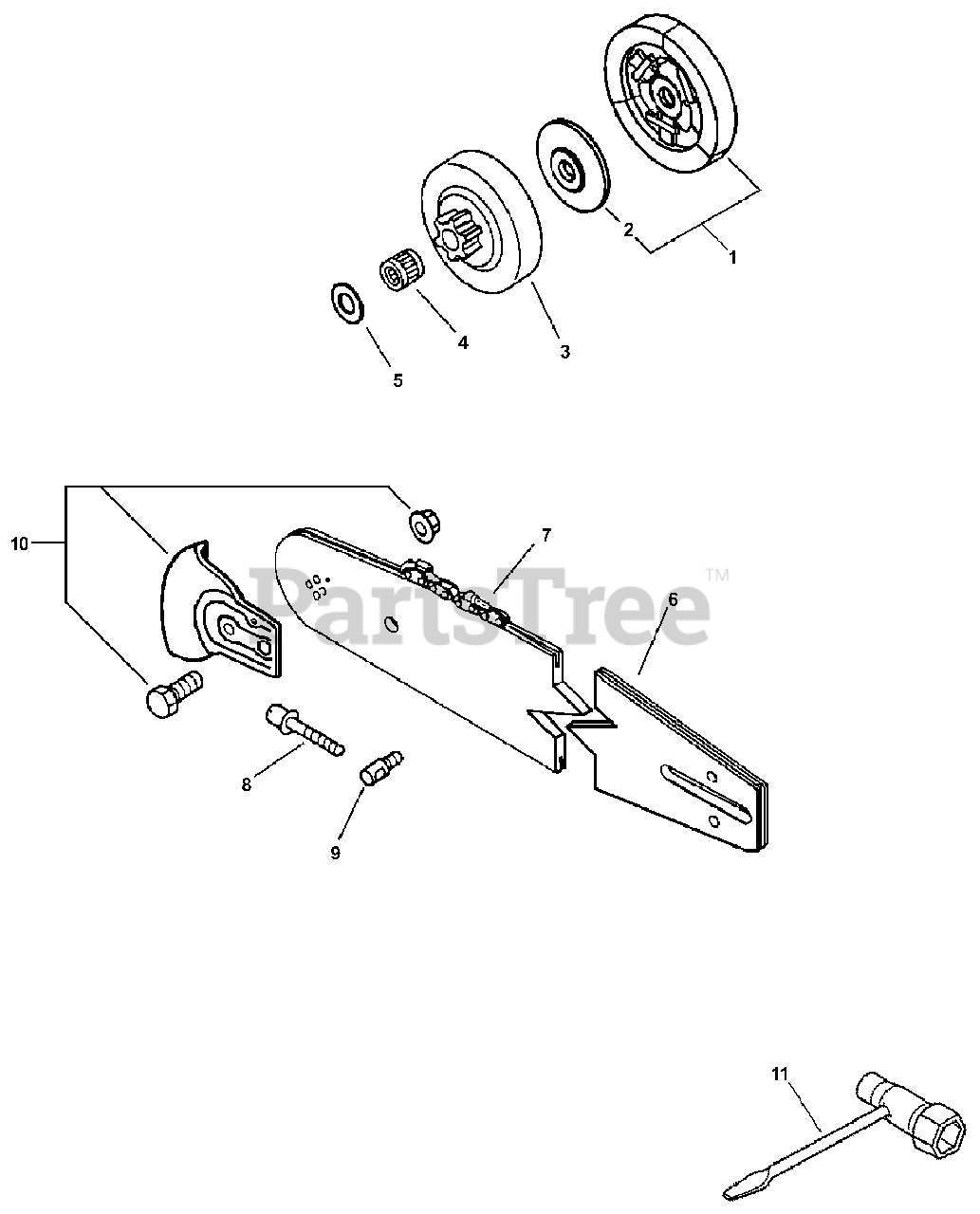

Clutch Assembly, Bar & Chain, Tools Parts Diagram

  • Title

1

Echo P021000260

CLUTCH ASSY
(Superseded to P021005900)

Note: Includes ITEM 2

$48.99

$

In Stock, only 4 left!

0

2

Echo 17501939430

PLATE, CLUTCH

$9.99

$

In Stock, Qty 13

0

3

Echo 17500539133

DRUM, CLUTCH 3/8"

$22.99

$

In Stock, Qty 20+

0

4

Echo 17501235630

BEARING, NEEDLE 10×13×10

$15.99

$

In Stock, Qty 20+

0

5

Echo 175014-39131

WASHER 10.2×24.5×1.2
(Superseded to 17501439131)

$2.99

$

In Stock, Qty 20+

0

6

Echo 12A0CD3745

GUIDE BAR, 12" DOUBLE-GUARD
(Superseded to 12A0CD3745C)

Note: GAUGE: .050"

$42.99

$

In Stock, Qty 20+

0

6

Echo 14A0CD3752

GUIDE BAR, 14" DOUBLE-GUARD
(Superseded to 14A0CD3752C)

Note: GAUGE: .050"

$53.99

$

In Stock, Qty 20+

0

6

Echo 16A0CD3757

GUIDE BAR, 16" DOUBLE-GUARD

Note: GAUGE: .050"

$56.99

$

In Stock, Qty 20+

0

7

Echo 91VG45CQ

SAWING CHAIN - 12" -- XTRAGUARD
(Superseded to 91PX45CQ)

Note: GAUGE: .050" / PITCH: .375" Low Vibration

$27.99

$

In Stock, Qty 11

0

7

Echo 91VG52CQ

SAW CHAIN 14" XTRAGUARD
(Superseded to 91PX52CQ)

Note: GAUGE: .050" / PITCH: .375" Low Vibration

$29.99

$

In Stock, Qty 20+

0

7

Echo 91VG57CQ

SAW CHAIN 16"

Note: GAUGE: .050" / PITCH: .375" Low Vibration

$29.99

$

In Stock, Qty 20+

0

8

Echo 43301639131

BOLT 5

$5.49

$

In Stock, Qty 20+

0

9

Echo 43301403931

TENSIONER, CHAIN

$5.99

$

In Stock, Qty 20+

0

10

Echo 2894901

KICK GUARD KIT

$5.49

$

Usually ships in 2-4 days

0

11

Echo 89541039131

T-WRENCH 10×19 MM
(Superseded to 89541039132)

$4.49

$

In Stock, Qty 18

0
