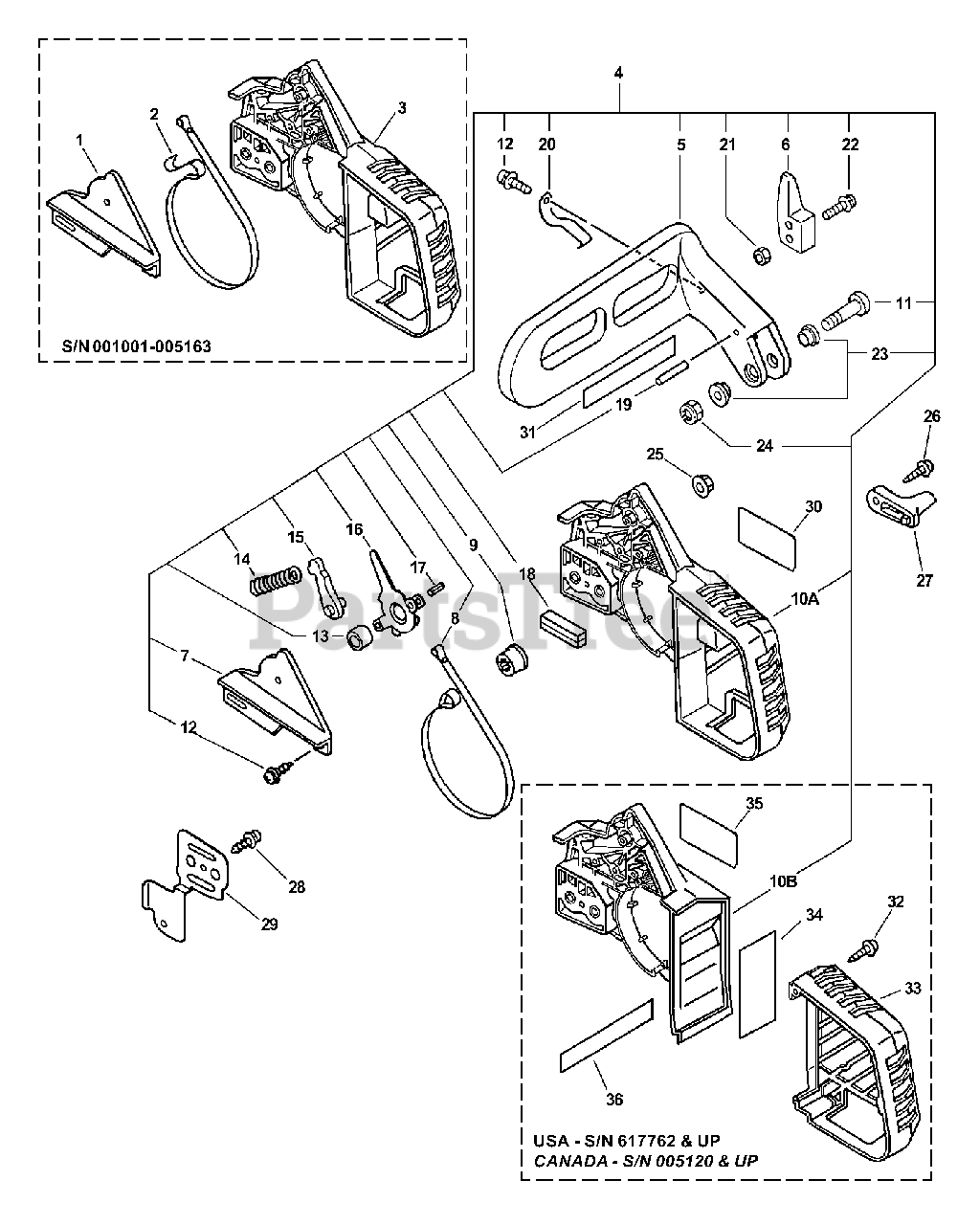

CS-3450 - Echo Chainsaw (Type 1E) Chain Brake Assembly Parts Diagram

Chainsaw (Type 1E)

Chain Brake Assembly Parts Diagram

  • Title

1

Echo 43331039230

COVER, BRAKE

Note: S/N 001001-005163

$6.49

$

Usually ships in 2-4 days

0

2

Echo 43312339130

BAND, BRAKE

Note: S/N 001001-005163

$9.49

$

Usually ships in 2-4 days

0

3

Echo 43300539233

GUARD, SPROCKET

Note: S/N 001001-005163

$35.99

$

Usually ships in 2-4 days

0

4

Echo 43310060530

CHAIN BRAKE ASSY
(Superseded to 43310060531)

Note: INCLUDES ITEMS 5-24; S/N 001001-617761, CANADA - S/N 001001-005119

$

$

Not available

5

Echo 43311160531

LEVER, BRAKE
(Superseded to P050007300)

Note: S/N 001001-617761, CANADA - S/N 001001-005119

$20.99

$

In Stock, only 2 left!

0

6

Echo 43317139130

WEIGHT, BRAKE

Note: S/N 001001-617761, CANADA - S/N 001001-005119

$18.99

$

Usually ships in 2-4 days

0

11

Echo 90020905030

SCREW 5×30

Note: S/N 001001-617761, CANADA - S/N 001001-005119

$0.99

$

In Stock, only 4 left!

0

30

Echo 89015139530

LABEL, CS-3450

Note: S/N 001001-617761, CANADA - S/N 001001-005119

$6.99

$

Usually ships in 2-4 days

0

31

Echo 89019239532

LABEL, BAR & CHAIN

Note: US MODELS; S/N 001001-617761, CANADA - S/N 001001-005119

$3.49

$

Usually ships in 2-4 days

0

31

Echo 89035439131

LABEL, BAR & CHAIN
(Superseded to Discontinued)

Note: CANADA MODELS; S/N 001001-617761, CANADA - S/N 001001-005119

$

$

Not available

7

Echo 43331039530

COVER, BRAKE

Note: S/N 005164 & UP

$6.49

$

Usually ships in 2-4 days

0

8

Echo 43312339530

BAND, BRAKE

Note: S/N 005164 & UP

$9.49

$

In Stock, only 2 left!

0

9

Echo 43314235430

ADJUSTER, BRAKE

Note: S/N 005164 & UP

$3.99

$

In Stock, only 2 left!

0

10A

Echo 43300539530

GUARD, SPROCKET

Note: S/N 005164-617761

$33.99

$

In Stock, only 3 left!

0

4

Echo C032000051

CHAIN BRAKE ASSY
(Superseded to C032000052)

Note: INCLUDES ITEM 5-24; S/N 617762 & UP, CANADA - S/N 005120 & UP

$99.99

$

In Stock, only 2 left!

0

5

Echo 43314739631

LEVER, BRAKE

Note: S/N 617762 & UP, CANADA - S/N 005120 & UP

$30.99

$

Usually ships in 2-4 days

0

6

Echo 43317139630

WEIGHT, BRAKE

Note: S/N 617762 & UP, CANADA - S/N 005120 & UP

$18.99

$

Usually ships in 2-4 days

0

7

Echo 43331039530

COVER, BRAKE

Note: S/N 617762 & UP, CANADA - S/N 005120 & UP

$6.49

$

Usually ships in 2-4 days

0

8

Echo 43312339530

BAND, BRAKE

Note: S/N 617762 & UP, CANADA - S/N 005120 & UP

$9.49

$

In Stock, only 2 left!

0

9

Echo 43314235430

ADJUSTER, BRAKE

Note: S/N 617762 & UP, CANADA - S/N 005120 & UP

$3.99

$

In Stock, only 2 left!

0

10B

Echo C300000040

GUARD, SPROCKET
(Superseded to C300000041)

Note: S/N 617762 & UP, CANADA - S/N 005120 & UP

$33.99

$

In Stock, Qty 5

0

11

Echo 9131805032

SCREW 5×32

Note: S/N 617762 & UP, CANADA - S/N 005120 & UP

$0.99

$

In Stock, Qty 10

0

32

Echo 90025305020

SCREW, TAPPING 5×20

Note: S/N 617762 & UP, CANADA - S/N 005120 & UP

$1.99

$

In Stock, Qty 20+

0

33

Echo A320000030

COVER, EXHAUST
(Superseded to A320000031)

Note: S/N 617762 & UP, CANADA - S/N 005120 & UP

$5.99

$

In Stock, Qty 13

0

34

Echo V341000000

SHIELD, HEAT 35×60×0.10

Note: S/N 617762 & UP, CANADA - S/N 005120 & UP

$1.49

$

In Stock, Qty 11

0

35

Echo X503001750

LABEL, MODEL

Note: S/N 617762 & UP, CANADA - S/N 005120 & UP

$2.49

$

Usually ships in 2-4 days

0

36

Echo 89019239532

LABEL, BAR & CHAIN

Note: US MODELS; S/N 617762 & UP, CANADA - S/N 005120 & UP

$3.49

$

Usually ships in 2-4 days

0

36

Echo 89035439131

LABEL, BAR & CHAIN
(Superseded to Discontinued)

Note: CANADA MODELS; S/N 617762 & UP, CANADA - S/N 005120 & UP

$

$

Not available

12

Echo 90025304010

SCREW 4×10

Note: S/N 001001 & UP

$0.99

$

In Stock, Qty 9

0

13

Echo 43311635430

SPACER 8×12×9

Note: S/N 001001 & UP

$6.49

$

In Stock, only 1 left!

0

14

Echo 43312235430

SPRING, COMPRESSION

Note: S/N 001001 & UP

$3.99

$

In Stock, only 2 left!

0

15

Echo 43320935430

STOPPER, BRAKE

Note: S/N 001001 & UP

$5.99

$

In Stock, only 2 left!

0

16

Echo 43320835431

LEVER, BRAKE

Note: S/N 001001 & UP

$22.99

$

In Stock, only 2 left!

0

17

Echo 90033040088

PIN, SPRING 4×8.8

Note: S/N 001001 & UP

$1.49

$

In Stock, only 4 left!

0

18

Echo 43331232630

SEAL, BRAKE

Note: S/N 001001 & UP

$1.49

$

In Stock, only 3 left!

0

19

Echo 90033040238

ROLLER 4×23.8

Note: S/N 001001 & UP

$0.99

$

In Stock, only 4 left!

0

20

Echo 43311439130

SPRING, FLAT

Note: S/N 001001 & UP

$3.49

$

Usually ships in 2-4 days

0

21

Echo 900500-00004

NUT M4

Note: S/N 001001 & UP

$0.99

$

In Stock, Qty 20+

0

22

Echo 900238-04022

SCREW 4×22

Note: S/N 001001 & UP

$0.99

$

In Stock, only 2 left!

0

23

Echo 43316739130

COLLAR 5.3×10×13×L5

Note: S/N 001001 & UP

$3.49

$

In Stock, Qty 12

0

24

Echo 90056000005

NUT, LOCK M5

Note: S/N 001001 & UP

$1.49

$

In Stock, Qty 14

0

25

Echo 43301903933

NUT, FLANGE M6

Note: S/N 001001 & UP

$1.49

$

In Stock, Qty 20+

0

26

Echo 90025305020

SCREW, TAPPING 5×20

Note: S/N 001001 & UP

$1.99

$

In Stock, Qty 20+

0

27

Echo 43302635430

CHAIN CATCHER

Note: S/N 001001 & UP

$2.49

$

In Stock, Qty 20+

0

28

Echo 90025304010

SCREW 4×10

Note: S/N 001001 & UP

$0.99

$

In Stock, Qty 9

0

29

Echo 43301239131

PLATE, GUIDE

Note: S/N 001001 & UP

$9.49

$

In Stock, Qty 13

0
