CS-3450 - Echo Chainsaw (Type 1E) Clutch, Cutting Attachment, Tools Parts Diagram

CS-3450 Technical Data: - Dimensions: 260 x 230 x 220 mm (10.2 x 9.1 x 8.7 in) - Weight (dry, no chain/guide): 3.4 kg (7.5 lb) - Engine: 33.4 cc (2.03 cu in), air-cooled, 2-stroke, single-cylinder, magneto CDI (NGK BPM-7A)

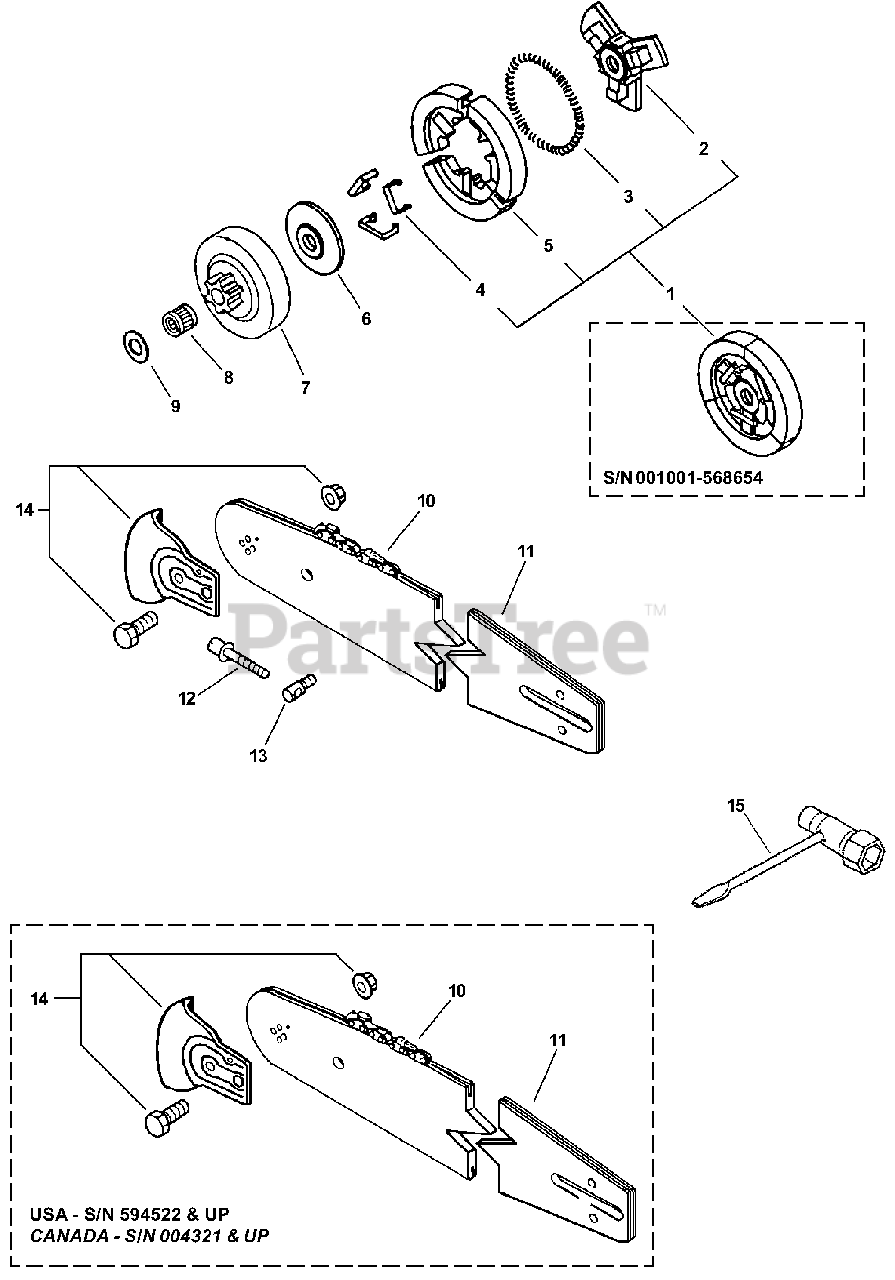

Clutch, Cutting Attachment, Tools Parts Diagram

  • Title

1

Echo P021000260

CLUTCH ASSY
(Superseded to P021005900)

Note: S/N 001001-568654

$48.99

$

In Stock, only 4 left!

0

1

Echo A056000010

CLUTCH ASSY

Note: INCLUDES ITEMS 2-5; S/N 568655 & UP

$64.99

$

In Stock, only 2 left!

0

2

Echo A552000000

HUB, CLUTCH

Note: S/N 568655 & UP

$17.99

$

Usually ships in 2-4 days

0

3

Echo 17501839430

SPRING, TORSION

Note: S/N 568655 & UP

$3.99

$

In Stock, Qty 7

0

4

Echo 17502259530

SPRING, FLAT

Note: S/N 568655 & UP

$4.49

$

In Stock, Qty 6

0

5

Echo A555000000

SHOE, CLUTCH
(Superseded to P021000270)

Note: S/N 568655-617761

$41.99

$

In Stock, only 1 left!

0

5

Echo P021000270

SHOE SET, CLUTCH (3PCS)

Note: S/N 617762 & UP

$41.99

$

In Stock, only 1 left!

0

6

Echo 17501939430

PLATE, CLUTCH

Note: S/N 001001 & UP

$9.99

$

In Stock, Qty 13

0

7

Echo 17500539133

DRUM, CLUTCH 3/8"

Note: S/N 001001 & UP

$22.99

$

In Stock, Qty 20+

0

8

Echo 17501235630

BEARING, NEEDLE 10×13×10

Note: S/N 001001 & UP

$15.99

$

In Stock, Qty 20+

0

9

Echo 175014-39131

WASHER 10.2×24.5×1.2
(Superseded to 17501439131)

Note: S/N 001001 & UP

$2.99

$

In Stock, Qty 20+

0

10

Echo 91VG45CQ

SAWING CHAIN - 12" -- XTRAGUARD
(Superseded to 91PX45CQ)

Note: S/N 001001 & UP GAUGE: .050" / PITCH: .375"

$27.99

$

In Stock, Qty 11

0

10

Echo 91VG52CQ

SAW CHAIN 14" XTRAGUARD
(Superseded to 91PX52CQ)

Note: S/N 001001 & UP GAUGE: .050" / PITCH: .375"

$29.99

$

In Stock, Qty 20+

0

10

Echo 91VG57CQ

SAW CHAIN 16"

Note: S/N 001001 & UP GAUGE: .050" / PITCH: .375"

$29.99

$

In Stock, Qty 20+

0

11

Echo 12A0CD3745

GUIDE BAR, 12" DOUBLE-GUARD
(Superseded to 12A0CD3745C)

Note: S/N 001001-594521, CANADA - S/N 001001-004320GAUGE: .050" GAUGE: .050"

$42.99

$

In Stock, Qty 20+

0

11

Echo 14A0CD3752

GUIDE BAR, 14" DOUBLE-GUARD
(Superseded to 14A0CD3752C)

Note: S/N 001001-594521, CANADA - S/N 001001-004320GAUGE: .050" GAUGE: .050"

$53.99

$

In Stock, Qty 20+

0

11

Echo 16A0CD3757

GUIDE BAR, 16" DOUBLE-GUARD

Note: S/N 001001-594521, CANADA - S/N 001001-004320 GAUGE: .050"

$56.99

$

In Stock, Qty 20+

0

12

Echo 43301639131

BOLT 5

Note: S/N 001001-594521, CANADA - S/N 001001-004320

$5.49

$

In Stock, Qty 20+

0

13

Echo 43301403931

TENSIONER, CHAIN

Note: S/N 001001-594521, CANADA - S/N 001001-004320

$5.99

$

In Stock, Qty 20+

0

11

Echo 12A0ZD3745

GUIDE BAR, 12"

Note: S/N 594522 & UP, CANADA - 004321 & UP GAUGE: .050"

$

$

Not available

11

Echo 14A0ZD3752

GUIDE BAR, 14"
(Superseded to 14A0ZD3752C)

Note: S/N 594522 & UP, CANADA - 004321 & UP GAUGE: .050"

$48.99

$

In Stock, only 2 left!

0

11

Echo 16A0ZD3757

GUIDE BAR, 16"
(Superseded to 16A0ZD3757C)

Note: S/N 594522 & UP, CANADA - 004321 & UP GAUGE: .050"

$60.99

$

In Stock, only 1 left!

0

14

Echo 2894901

KICK GUARD KIT

Note: S/N 001001 & UP

$5.49

$

Usually ships in 2-4 days

0

15

Echo 89541039131

T-WRENCH 10×19 MM
(Superseded to 89541039132)

Note: S/N 001001 & UP

$4.49

$

In Stock, Qty 18

0
