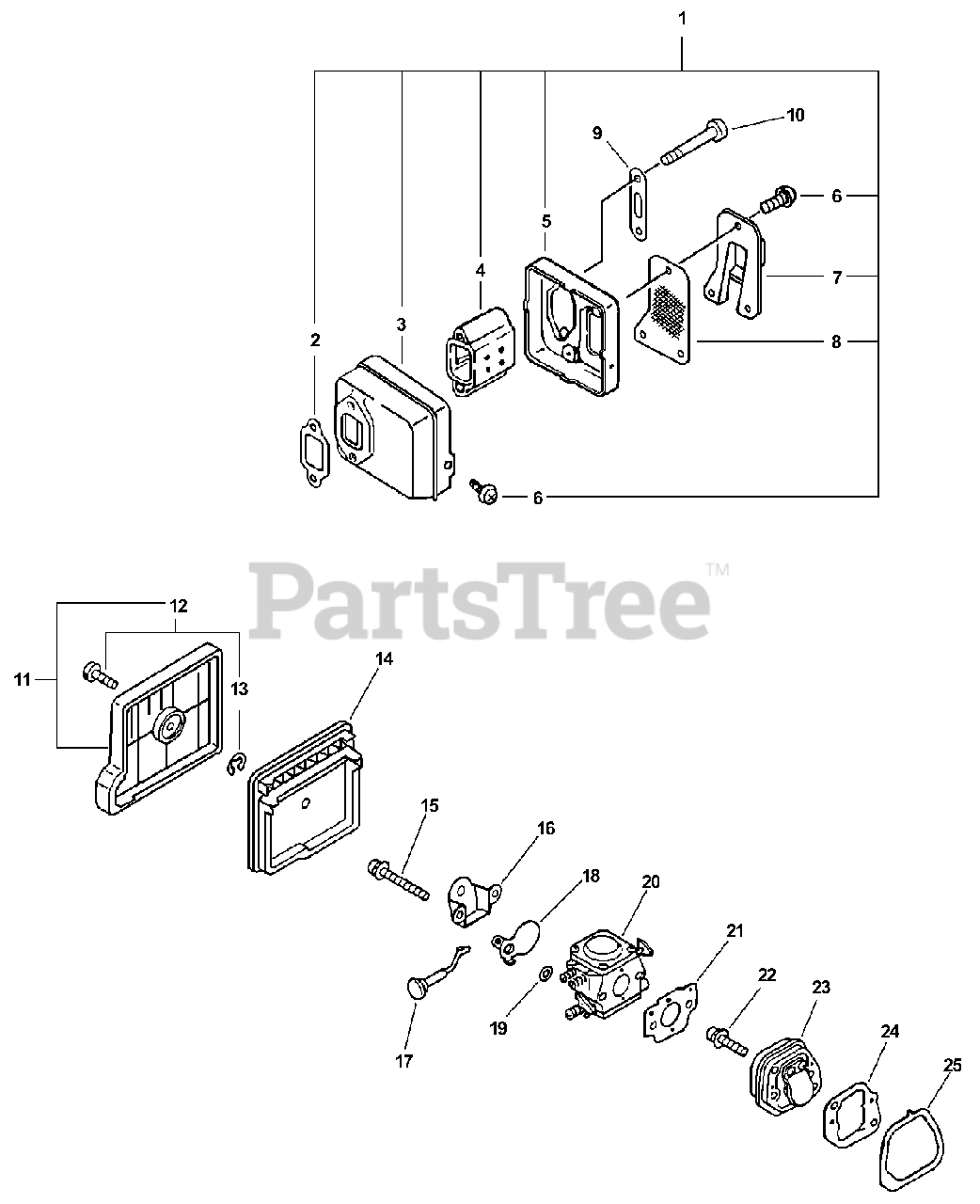

CS-3450 - Echo Chainsaw (Type 1E) Intake, Exhaust Parts Diagram

Chainsaw (Type 1E)

Intake, Exhaust Parts Diagram

  • Title

1

Echo 14580335532

MUFFLER ASSY
(Superseded to Discontinued)

Note: INCLUDES ITEMS 2-8; S/N 001001 & UP

$

$

Not available

2

Echo 14551013931

GASKET, EXHAUST

Note: S/N 001001 & UP

$2.49

$

In Stock, Qty 20+

0

3

Echo 14585813931

GUIDE, EXHAUST

Note: S/N 001001 & UP

$

$

Not available

4

Echo 14585913930

BAFFLE, MUFFLER

$7.49

$

Usually ships in 2-4 days

0

5

Echo 14586135530

GUIDE, EXHAUST
(Superseded to Discontinued)

Note: S/N 001001 & UP

$

$

Not available

6

Echo 90025004008

SCREW - 4X8

Note: S/N 001001 & UP

$0.99

$

Usually ships in 2-4 days

0

7

Echo 14587635530

GUIDE, EXHAUST
(Superseded to Discontinued)

Note: S/N 001001 & UP

$

$

Not available

8

Echo 14586213931

SCREEN, SPARK ARRESTOR
(Superseded to Discontinued)

Note: S/N 001001 & UP

$

$

Not available

9

Echo 14564213930

PLATE

Note: S/N 001001 & UP

$2.49

$

In Stock, only 1 left!

0

10

Echo 10102313930

BOLT - FLANGE

Note: S/N 001001 & UP

$0.99

$

In Stock, Qty 8

0

11

Echo 13030239136

AIR FILTER COVER ASSY

Note: Includes ITEMS 12-13

$21.99

$

In Stock, Qty 6

0

12

Echo 13040613933

THUMBSCREW

Note: INCLUDES ITEMS 13

$4.99

$

In Stock, Qty 7

0

13

Echo 90070000004

RING, RETAINING - 4

$0.99

$

In Stock, Qty 20+

0

14

Echo 13031039131

FILTER, AIR
(Superseded to 13031039132)

$13.99

$

In Stock, Qty 7

0

15

Echo 90023805045

SCREW - 5X45

$0.99

$

In Stock, Qty 8

0

16

Echo 12901139130

PLATE, PREVENT

$6.49

$

In Stock, only 2 left!

0

17

Echo 17851039230

ROD, CHOKE

$6.99

$

In Stock, only 2 left!

0

18

Echo 17851539130

SHUTTER, CHOKE

$2.99

$

In Stock, only 2 left!

0

19

Echo 17851603930

WASHER
(Superseded to 17851600830)

$0.99

$

In Stock, Qty 20+

0

20

Echo 12300060131

CARBURETOR WT-385A

Note: TYPE 1 - S/N 001001-025666

$93.99

$

In Stock, only 3 left!

0

20

Echo 12300139132

CARBURETOR WT-402A
(Superseded to 12300139133)

Note: TYPE 1 - S/N 025667 & UP, TYPE 1E - S/N 001001 & UP

$86.99

$

In Stock, Qty 20+

0

21

v103000021

GASKET, INTAKE

Note: S/N 001001 & UP

$

$

Not available

22

Echo 90025005018

SCREW - 5X18

Note: S/N 001001 & UP

$0.99

$

In Stock, Qty 7

0

23

Echo 13000039131

INSULATOR KIT
(Superseded to P021000010)

Note: S/N 001001 & UP

$24.99

$

In Stock, only 2 left!

0

24

v103000120

GASKET, INTAKE

Note: S/N 001001 & UP

$

$

Not available

25

Echo 13001239131

SEAL
(Superseded to 13001239132)

Note: S/N 001001 & UP

$3.49

$

In Stock, Qty 10

0
