CS-346 - Echo Chainsaw (SN: 02001001 - 02999999) Chain Brake S/N: 02001001 - 02006473 Parts Diagram

Chainsaw

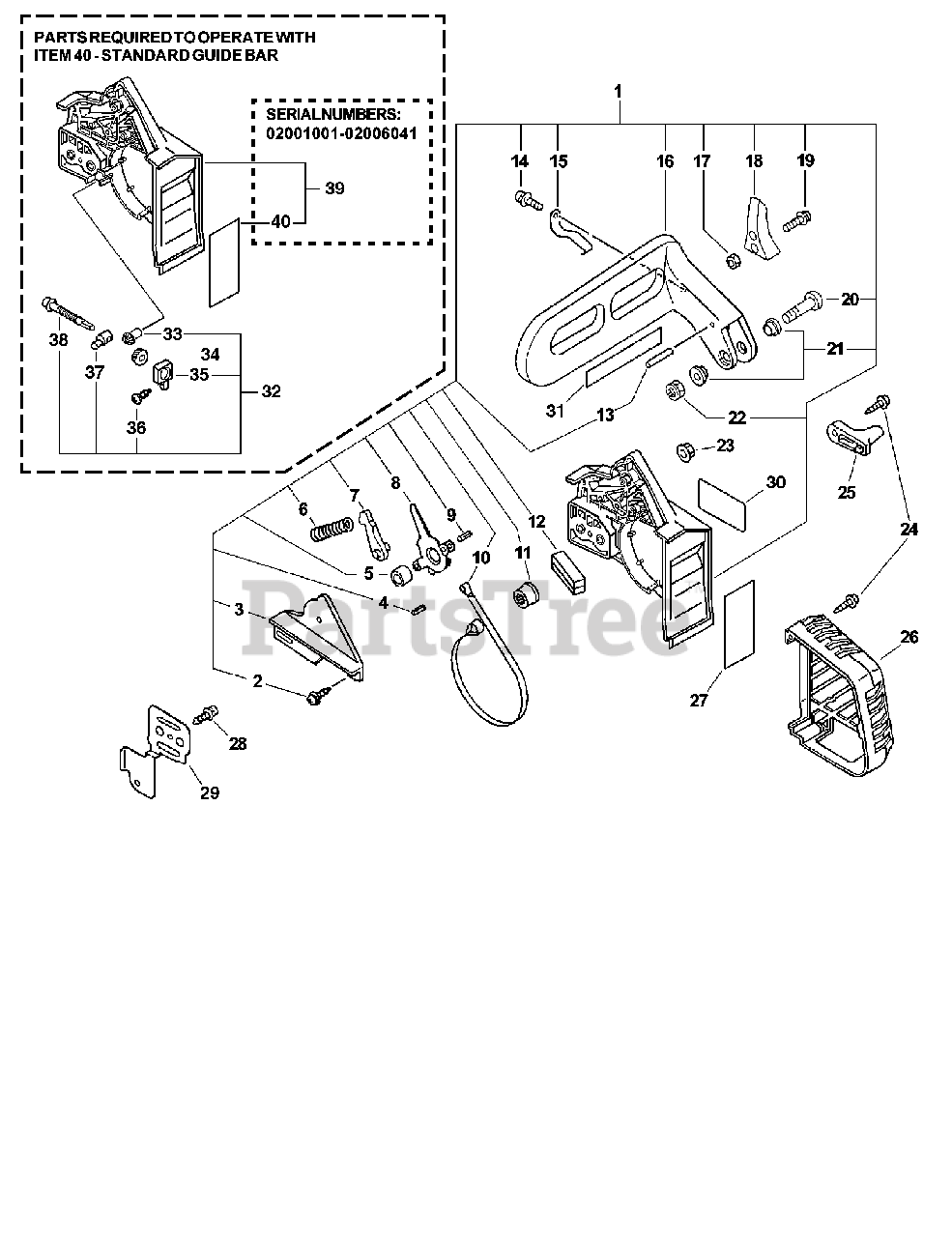

Chain Brake S/N: 02001001 - 02006473 Parts Diagram

  • Title

1

Echo C032000060

CHAIN BRAKE ASSY
(Superseded to C032000061)

Note: Includes ITEM 2-22

$

$

Not available

2

Echo 90025304012

SCREW 4×12

$1.49

$

In Stock, only 2 left!

0

3

Echo 43331039530

COVER, BRAKE

$6.49

$

Usually ships in 2-4 days

0

4

Echo 90034225012

PIN, SPRING 2.5×12

$1.99

$

Usually ships in 2-4 days

0

5

Echo 43311635430

SPACER 8×12×9

$6.49

$

In Stock, only 1 left!

0

6

Echo 43312235430

SPRING, COMPRESSION

$3.99

$

In Stock, only 2 left!

0

7

Echo 43320935430

STOPPER, BRAKE

$5.99

$

In Stock, only 2 left!

0

8

Echo 43320835431

LEVER, BRAKE

$22.99

$

In Stock, only 2 left!

0

9

Echo 90033040088

PIN, SPRING 4×8.8

$1.49

$

In Stock, only 4 left!

0

10

Echo 43312339530

BAND, BRAKE

$9.49

$

In Stock, only 2 left!

0

11

Echo 43314235430

ADJUSTER, BRAKE

$3.99

$

In Stock, only 2 left!

0

12

Echo 43331232630

SEAL, BRAKE

$1.49

$

In Stock, only 3 left!

0

13

Echo 90033040238

ROLLER 4×23.8

$0.99

$

In Stock, only 4 left!

0

14

Echo 90025304010

SCREW 4×10

$0.99

$

In Stock, Qty 9

0

15

Echo 43311439130

SPRING, FLAT

$3.49

$

Usually ships in 2-4 days

0

16

Echo 43314739430

LEVER, BRAKE

$7.49

$

In Stock, only 2 left!

0

17

Echo 900500-00004

NUT M4

$0.99

$

In Stock, Qty 20+

0

18

Echo 43317139130

WEIGHT, BRAKE

$18.99

$

Usually ships in 2-4 days

0

19

Echo 90023804020

SCREW 4×20

$0.99

$

In Stock, only 4 left!

0

20

Echo 9131805032

SCREW 5×32

$0.99

$

In Stock, Qty 10

0

21

Echo 43316739130

COLLAR 5.3×10×13×L5

$3.49

$

In Stock, Qty 12

0

22

Echo 90056000005

NUT, LOCK M5

$1.49

$

In Stock, Qty 14

0

23

Echo 43301903933

NUT, FLANGE M6

$1.49

$

In Stock, Qty 20+

0

24

Echo 90025305020

SCREW, TAPPING 5×20

$1.99

$

In Stock, Qty 20+

0

25

Echo 43302635430

CHAIN CATCHER

$2.49

$

In Stock, Qty 20+

0

26

Echo A320000030

COVER, EXHAUST
(Superseded to A320000031)

$5.99

$

In Stock, Qty 13

0

27

Echo V341000000

SHIELD, HEAT 35×60×0.10

$1.49

$

In Stock, Qty 11

0

28

Echo 90025304010

SCREW 4×10

$0.99

$

In Stock, Qty 9

0

29

Echo 43301239131

PLATE, GUIDE

$9.49

$

In Stock, Qty 13

0

30

Echo X503001490

LABEL, MODEL
(Superseded to Discontinued)

$

$

Not available

31

Echo 89019239532

LABEL, BAR & CHAIN

Note: MODELS WITH INTENZ GUIDE BAR

$3.49

$

Usually ships in 2-4 days

0

31

Echo X524000790

LABEL - BAR & CHAIN
(Superseded to X524000791)

Note: WITH STANDARD GUIDE BAR

$0.99

$

Usually ships in 2-4 days

0

32

Echo 90102

SIDE ADJUSTER KIT

Note: INCLUDES ITEMS 34-39; PARTS REQUIRED TO OPERATE WITH STANDARD GUIDE BAR

$28.99

$

Usually ships in 2-4 days

0

33

Echo V651000001

GEAR, BEVEL

Note: PARTS REQUIRED TO OPERATE WITH STANDARD GUIDE BAR

$9.49

$

In Stock, Qty 20+

0

34

Echo V651000011

GEAR, BEVEL

Note: PARTS REQUIRED TO OPERATE WITH STANDARD GUIDE BAR

$9.49

$

In Stock, Qty 20+

0

35

Echo V355000140

COLLAR 8

Note: PARTS REQUIRED TO OPERATE WITH STANDARD GUIDE BAR

$1.49

$

In Stock, Qty 20+

0

36

Echo 90025304012

SCREW 4×12

Note: PARTS REQUIRED TO OPERATE WITH STANDARD GUIDE BAR

$1.49

$

In Stock, only 2 left!

0

37

Echo C309000030

TENSIONER, CHAIN

Note: PARTS REQUIRED TO OPERATE WITH STANDARD GUIDE BAR

$5.49

$

In Stock, Qty 20+

0

38

Echo V203000041

BOLT 5

Note: PARTS REQUIRED TO OPERATE WITH STANDARD GUIDE BAR

$6.99

$

In Stock, Qty 18

0

39

Echo C300000041

GUARD, SPROCKET - GRAY
(Superseded to C300000042)

Note: INCLUDES ITEM 41; SERIAL NUMBERS: 02001001-02006041

$33.99

$

In Stock, Qty 5

0

40

Echo V341000000

SHIELD, HEAT 35×60×0.10

Note: S/N: 02001001-02006041

$1.49

$

In Stock, Qty 11

0
