CS-350 TES - Echo Chainsaw (Original Version) Air Cleaner, Carburetor, Muffler Parts Diagram

CS-350TES - 34 cc gasoline chain saw. Guide bar 14" (35 cm) or 16" (40 cm). Chain part numbers: 91vxl52x, 91vxl57x. Includes chain brake, clutch cover and standard chain-saw accessories. CS-350TES, model code: X750-012 16 3 / X750 324-410 3. Start system: ES (low-recoil, high-rev start). Supplied with guide bar and chain separately.

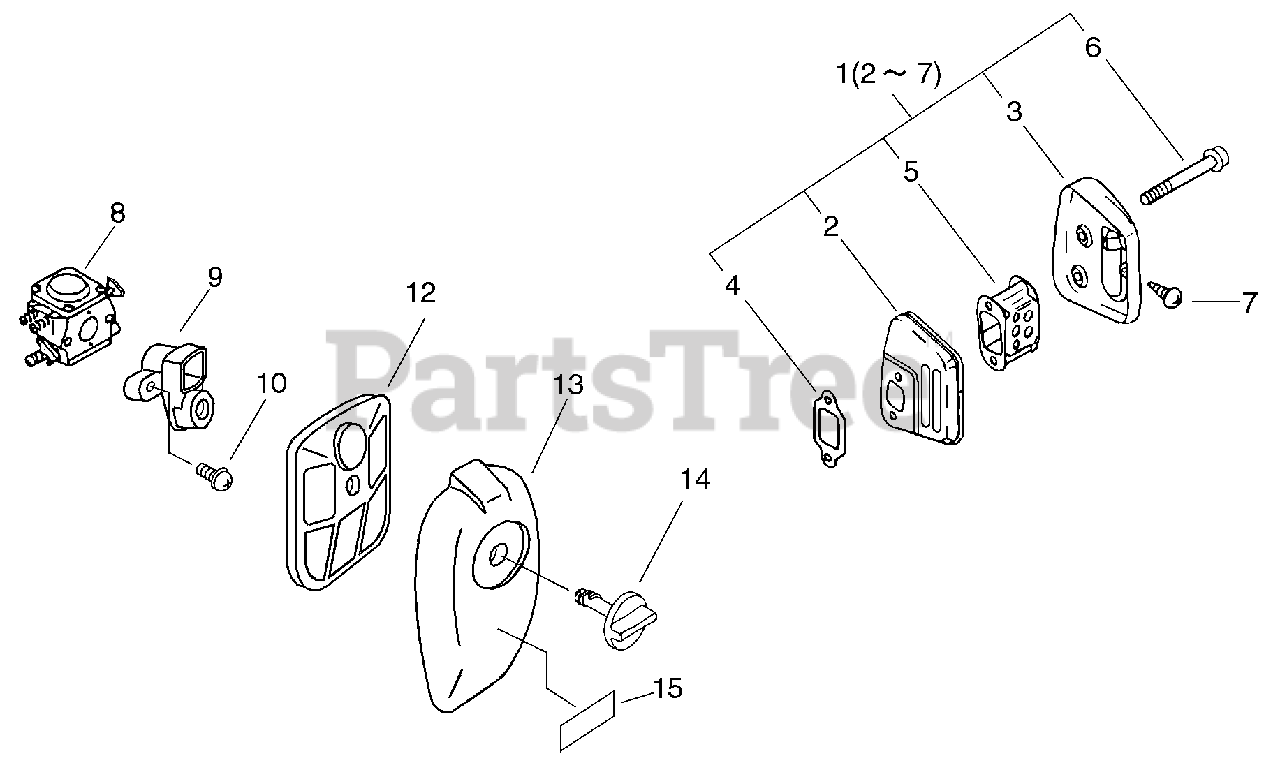

Air Cleaner, Carburetor, Muffler Parts Diagram

  • Title

1

Echo P021009930

MUFFLER ASSY

$48.99

$

Usually ships in 2-4 days

0

2

Echo A300000370

BASE, MUFFLER

$

$

Currently unavailable

3

Echo A303000041

COVER, MUFFLER

$

$

Currently unavailable

4

Echo 14551013931

GASKET, MUFFLER

$2.49

$

In Stock, Qty 20+

0

5

Echo A301000000

PLATE, MUFFLER

$5.49

$

Usually ships in 2-4 days

0

6

Echo 9110705040

BOLT, FLANGE HSH 5×40

$1.99

$

Usually ships in 2-4 days

0

7

Echo 90025004008

SCREW TAPPING 4×8

$0.99

$

Usually ships in 2-4 days

0

8

Echo A021001181

CARBURETOR - WT-782A
(Superseded to A021001182)

$140.99

$

Usually ships in 2-4 days

0

9

Echo A204000041

MOUNT, AIR FILTER

$8.49

$

Usually ships in 2-4 days

0

10

Echo 90023805050

SCREW 5×50

$0.99

$

In Stock, Qty 5

0

12

Echo A226000291

FILTER, AIR

$19.99

$

In Stock, Qty 20+

0

13

Echo A232000160

COVER, AIR FILTER

$23.99

$

Usually ships in 2-4 days

0

14

Echo A235000040

THUMBSCREW

$5.99

$

In Stock, Qty 20+

0

15

Echo X503006190

LABEL, MODEL CS-350TES

$4.49

$

Usually ships in 2-4 days

0
