CS-350 TES - Echo Chainsaw (Original Version) Auto-Oiler Parts Diagram

Chainsaw

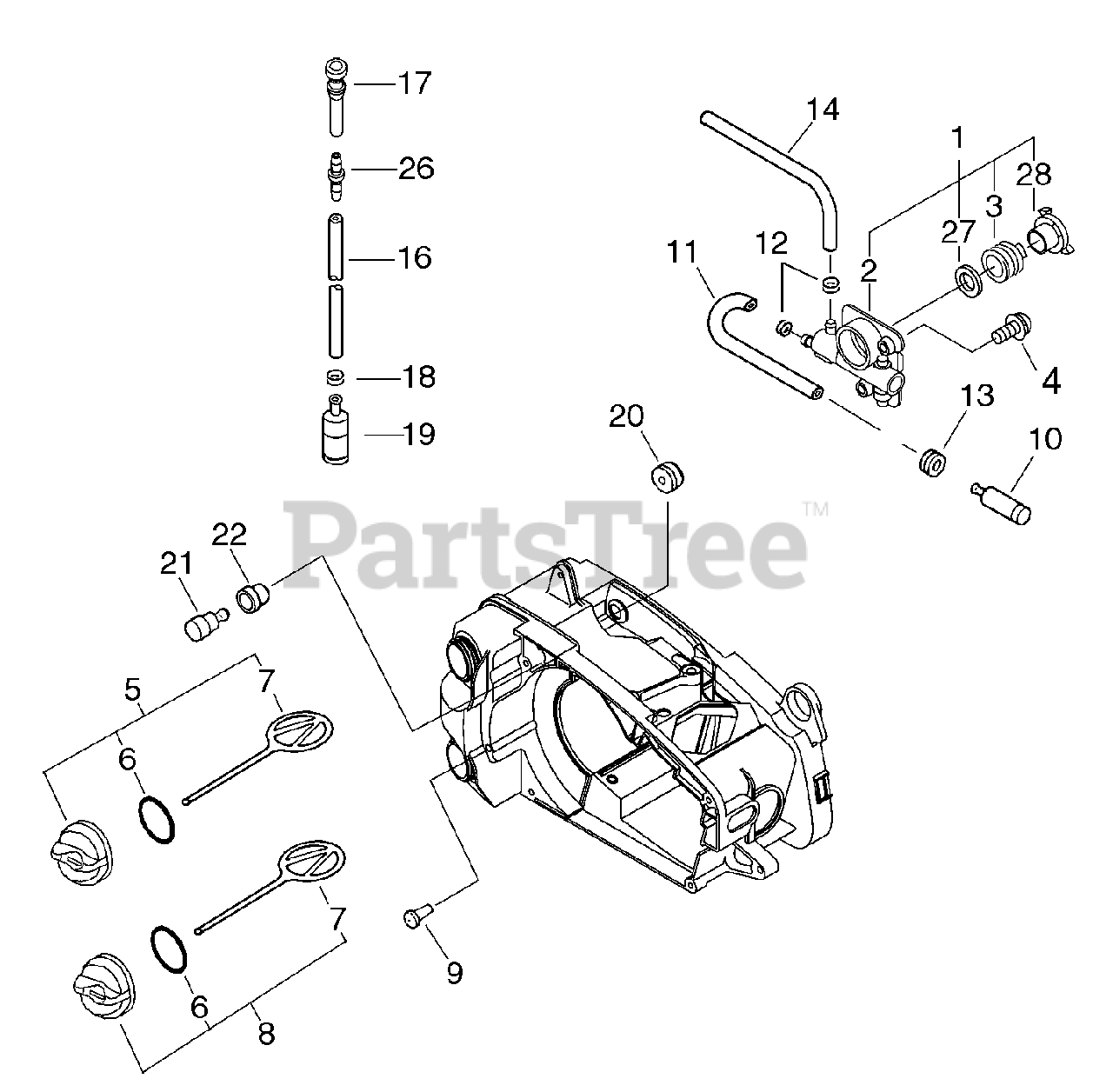

Auto-Oiler Parts Diagram

  • Title

1

Echo P021001980

AUTO-OILER KIT

$81.99

$

In Stock, only 1 left!

0

2

Echo C022000020

AUTO-OILER ASSY

$61.99

$

In Stock, Qty 5

0

3

Echo V652000030

GEAR, WORM

$13.99

$

In Stock, only 2 left!

0

27

Echo V308000030

WASHER 10.5×17.4×1.8

$3.49

$

In Stock, only 2 left!

0

28

Echo V356000290

COLLAR 10

$4.49

$

In Stock, Qty 6

0

4

Echo 900238-04012

SCREW 4×12

$0.99

$

In Stock, Qty 20+

0

5

Echo P021005591

CAP ASSY
(Superseded to P021005592)

$4.99

$

In Stock, Qty 9

0

6

Echo 90072000018

O-RING 18

$2.49

$

In Stock, only 1 left!

0

7

Echo A365-000050

CONNECTOR, CAP L= 60 MM
(Superseded to A365000050)

$2.49

$

In Stock, only 1 left!

0

8

Echo P021-005581

CAP ASSY - BLACK
(Superseded to P021005581)

$8.49

$

In Stock, Qty 13

0

6

Echo 90072000018

O-RING 18

$2.49

$

In Stock, only 1 left!

0

7

Echo A365-000050

CONNECTOR, CAP L= 60 MM
(Superseded to A365000050)

$2.49

$

In Stock, only 1 left!

0

9

Echo 436114-13930

VENT ASSY
(Superseded to 43611413930)

$7.49

$

In Stock, Qty 6

0

10

Echo 43620502832

FILTER, OIL

$8.99

$

Usually ships in 2-4 days

0

11

Echo V471000740

PIPE 3×6×160
(Superseded to V471000741)

$1.99

$

In Stock, Qty 5

0

12

Echo 13201326630

CLIP 6.5 MM
(Superseded to V490001230)

$0.99

$

In Stock, Qty 20+

0

13

Echo 13211501461

GROMMET
(Superseded to 13211501462)

$1.99

$

In Stock, Qty 20+

0

14

Echo V471000760

PIPE 3×6×90 MM
(Superseded to V471000761)

$1.99

$

In Stock, only 3 left!

0

16

Echo V471000750

PIPE, FUEL
(Superseded to V471000751)

$9.49

$

In Stock, only 1 left!

0

17

Echo V470000320

PIPE, FUEL
(Superseded to V470001940)

$3.49

$

In Stock, Qty 5

0

18

Echo 132013-09820

CLIP 6 MM

$0.99

$

In Stock, Qty 8

0

19

Echo 13120514930

FILTER, FUEL
(Superseded to 13120514931)

$9.99

$

In Stock, Qty 20+

0

20

Echo V137000020

GROMMET, FUEL

$1.49

$

Usually ships in 2-4 days

0

21

Echo 131300-56430

VENT ASSY
(Superseded to 13130056431)

$8.99

$

In Stock, Qty 7

0

22

Echo V137000000

GROMMET, FUEL
(Superseded to V137000001)

$1.99

$

In Stock, Qty 20+

0

26

Echo V186000020

CONNECTOR, PIPE
(Superseded to V186000510)

$1.99

$

In Stock, Qty 20+

0
