CS-350 TES - Echo Chainsaw (SN: C24126001001 - C24126999999) Chain Brake, Clutch Cover Parts Diagram

CS-350TES - 34 cc gasoline chain saw. Guide bar 14" (35 cm) or 16" (40 cm). Chain part numbers: 91vxl52x, 91vxl57x. Includes chain brake, clutch cover and standard chain-saw accessories. CS-350TES, model code: X750-012 16 3 / X750 324-410 3. Start system: ES (low-recoil, high-rev start). Supplied with guide bar and chain separately.

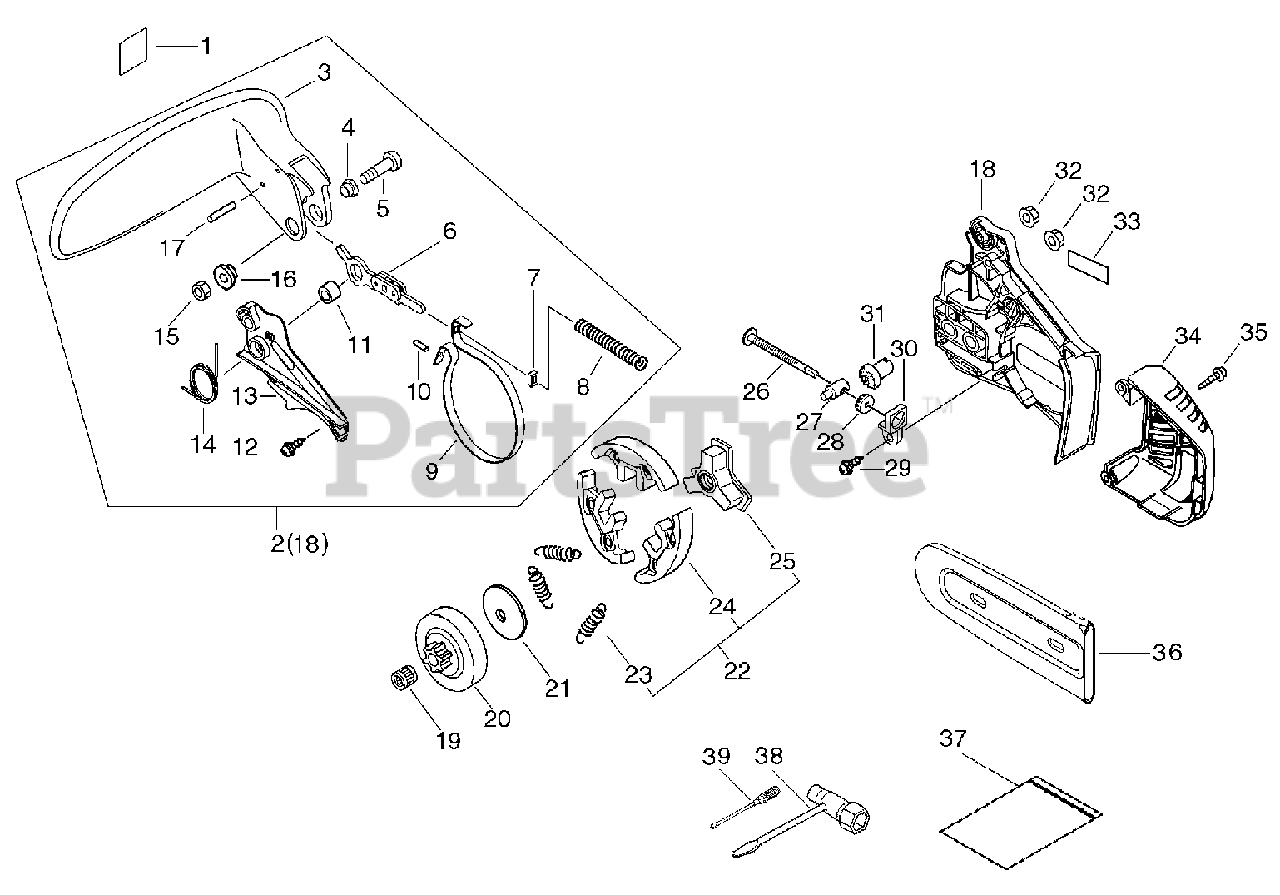

Chain Brake, Clutch Cover Parts Diagram

  • Title

1

Echo X505002440

LABEL, CAUTION

$

$

Currently unavailable

1

Echo X505002440

LABEL, CAUTION

$

$

Currently unavailable

2

Echo C032000206

BRAKE ASSY, CHAIN

$112.99

$

Usually ships in 2-4 days

0

2

Echo C032000206

BRAKE ASSY, CHAIN

$112.99

$

Usually ships in 2-4 days

0

3

Echo C320000034

BRAKE, CHAIN

$50.99

$

Usually ships in 2-4 days

0

3

Echo C320000034

BRAKE, CHAIN

$50.99

$

Usually ships in 2-4 days

0

4

Echo 43316739130

COLLAR 5.3×10×13×L5

$3.49

$

In Stock, Qty 20+

0

4

Echo 43316739130

COLLAR 5.3×10×13×L5

$3.49

$

In Stock, Qty 20+

0

5

Echo 9131805032

SCREW 5×32

$0.99

$

In Stock, Qty 16

0

5

Echo 9131805032

SCREW 5×32

$0.99

$

In Stock, Qty 16

0

6

Echo C334-000070

CONNECTOR, BRAKE
(Superseded to Discontinued)

$

$

Not available

6

Echo C334-000070

CONNECTOR, BRAKE
(Superseded to Discontinued)

$

$

Not available

7

Echo V376000450

GUIDE

$0.99

$

In Stock, Qty 20+

0

7

Echo V376000450

GUIDE

$0.99

$

In Stock, Qty 20+

0

8

Echo V450000070

SPRING, COMPRESSION

$2.99

$

In Stock, Qty 20+

0

8

Echo V450000070

SPRING, COMPRESSION

$2.99

$

In Stock, Qty 20+

0

9

Echo C328000030

BAND, BRAKE

$7.99

$

In Stock, Qty 12

0

9

Echo C328000030

BAND, BRAKE

$7.99

$

In Stock, Qty 12

0

10

Echo 9305030098

PIN, SPRING 3x-9.8

$0.99

$

In Stock, Qty 20+

0

10

Echo 9305030098

PIN, SPRING 3x-9.8

$0.99

$

In Stock, Qty 20+

0

11

Echo 43311635430

SPACER 8×12×9

$6.49

$

In Stock, Qty 15

0

11

Echo 43311635430

SPACER 8×12×9

$6.49

$

In Stock, Qty 15

0

12

Echo 90025304012

SCREW 4×12

$1.49

$

Usually ships in 2-4 days

0

12

Echo 90025304012

SCREW 4×12

$1.49

$

Usually ships in 2-4 days

0

13

Echo C345000084

COVER, BRAKE

$9.99

$

Usually ships in 2-4 days

0

13

Echo C345000084

COVER, BRAKE

$9.99

$

Usually ships in 2-4 days

0

14

Echo V452000110

SPRING, TORSION

$1.49

$

In Stock, Qty 6

0

14

Echo V452000110

SPRING, TORSION

$1.49

$

In Stock, Qty 6

0

15

Echo 90056250005

NUT, LOCK M5

$1.49

$

In Stock, Qty 20+

0

15

Echo 90056250005

NUT, LOCK M5

$1.49

$

In Stock, Qty 20+

0

16

Echo V353000060

COLLAR 5

$2.49

$

In Stock, Qty 10

0

16

Echo V353000060

COLLAR 5

$2.49

$

In Stock, Qty 10

0

17

Echo 90033030260

PIN 3×26

$0.99

$

In Stock, Qty 20+

0

17

Echo 90033030260

PIN 3×26

$0.99

$

In Stock, Qty 20+

0

18

Echo C300000242

GUARD, SPROCKET

$21.99

$

Usually ships in 2-4 days

0

18

Echo C300000242

GUARD, SPROCKET

$21.99

$

Usually ships in 2-4 days

0

19

Echo V555000150

BEARING, NEEDLE 10
(Superseded to V555000170)

$15.99

$

In Stock, Qty 20+

0

19

Echo V555000150

BEARING, NEEDLE 10
(Superseded to V555000170)

$15.99

$

In Stock, Qty 20+

0

20

Echo 17500539133

DRUM, CLUTCH 3/8"

$22.99

$

In Stock, Qty 20+

0

20

Echo 17500539133

DRUM, CLUTCH 3/8"

$22.99

$

In Stock, Qty 20+

0

21

Echo A551000010

PLATE, CLUTCH

$7.99

$

In Stock, Qty 11

0

21

Echo A551000010

PLATE, CLUTCH

$7.99

$

In Stock, Qty 11

0

22

Echo A056000070

CLUTCH ASSY
(Superseded to A056000071)

$41.99

$

In Stock, Qty 16

0

22

Echo A056000070

CLUTCH ASSY
(Superseded to A056000071)

$41.99

$

In Stock, Qty 16

0

23

Echo V451000470

SPRING, CLUTCH

$4.49

$

In Stock, Qty 16

0

23

Echo V451000470

SPRING, CLUTCH

$4.49

$

In Stock, Qty 16

0

24

Echo P021005810

SHOE SET, CLUTCH (3PCS)

$36.99

$

In Stock, only 4 left!

0

24

Echo P021005810

SHOE SET, CLUTCH (3PCS)

$36.99

$

In Stock, only 4 left!

0

25

Echo A552000020

HUB, CLUTCH

$15.99

$

In Stock, only 4 left!

0

25

Echo A552000020

HUB, CLUTCH

$15.99

$

In Stock, only 4 left!

0

26

Echo V203000041

BOLT 5

$6.99

$

In Stock, Qty 20+

0

26

Echo V203000041

BOLT 5

$6.99

$

In Stock, Qty 20+

0

27

Echo C309000030

TENSIONER, CHAIN

$5.49

$

In Stock, Qty 20+

0

27

Echo C309000030

TENSIONER, CHAIN

$5.49

$

In Stock, Qty 20+

0

28

Echo V651000011

GEAR, BEVEL

$9.49

$

In Stock, Qty 20+

0

28

Echo V651000011

GEAR, BEVEL

$9.49

$

In Stock, Qty 20+

0

29

Echo 90025304012

SCREW 4×12

$1.49

$

Usually ships in 2-4 days

0

29

Echo 90025304012

SCREW 4×12

$1.49

$

Usually ships in 2-4 days

0

30

Echo V355000140

COLLAR 8

$1.49

$

In Stock, Qty 20+

0

30

Echo V355000140

COLLAR 8

$1.49

$

In Stock, Qty 20+

0

31

Echo V651000001

GEAR, BEVEL

$9.49

$

In Stock, Qty 20+

0

31

Echo V651000001

GEAR, BEVEL

$9.49

$

In Stock, Qty 20+

0

32

Echo 43301903933

NUT, FLANGE M6

$1.49

$

In Stock, Qty 20+

0

32

Echo 43301903933

NUT, FLANGE M6

$1.49

$

In Stock, Qty 20+

0

33

Echo X502000340

LABEL, ECHO

$2.49

$

In Stock, Qty 20+

0

33

Echo X502000340

LABEL, ECHO

$2.49

$

In Stock, Qty 20+

0

34

Echo A320000183

COVER, MUFFLER

$15.99

$

Usually ships in 2-4 days

0

34

Echo A320000183

COVER, MUFFLER

$15.99

$

Usually ships in 2-4 days

0

35

Echo 90025304016

SCREW 4×16

$0.99

$

In Stock, Qty 20+

0

35

Echo 90025304016

SCREW 4×16

$0.99

$

In Stock, Qty 20+

0

36

Echo X490000510

SCABBARD

$16.99

$

Usually ships in 2-4 days

0

36

Echo X490000510

SCABBARD

$16.99

$

Usually ships in 2-4 days

0

37

Echo X698000050

BAG, TOOL
(Superseded to 89851039130)

$1.99

$

In Stock, only 3 left!

0

37

Echo X698000050

BAG, TOOL
(Superseded to 89851039130)

$1.99

$

In Stock, only 3 left!

0

38

Echo 89541003930

T-WRENCH 10×19 L= 130
(Superseded to 89541039130)

$4.49

$

In Stock, Qty 18

0

38

Echo 89541003930

T-WRENCH 10×19 L= 130
(Superseded to 89541039130)

$4.49

$

In Stock, Qty 18

0

39

Echo 89581203930

SCREWDRIVER, PHILLIPS

$4.99

$

In Stock, only 1 left!

0

39

Echo 89581203930

SCREWDRIVER, PHILLIPS

$4.99

$

In Stock, only 1 left!

0
