CS-350 TES - Echo Chainsaw (SN: C24126001001 - C24126999999) Flywheel, Ignition, Starter Parts Diagram

CS-350TES - 34 cc gasoline chain saw. Guide bar 14" (35 cm) or 16" (40 cm). Chain part numbers: 91vxl52x, 91vxl57x. Includes chain brake, clutch cover and standard chain-saw accessories. CS-350TES, model code: X750-012 16 3 / X750 324-410 3. Start system: ES (low-recoil, high-rev start). Supplied with guide bar and chain separately.

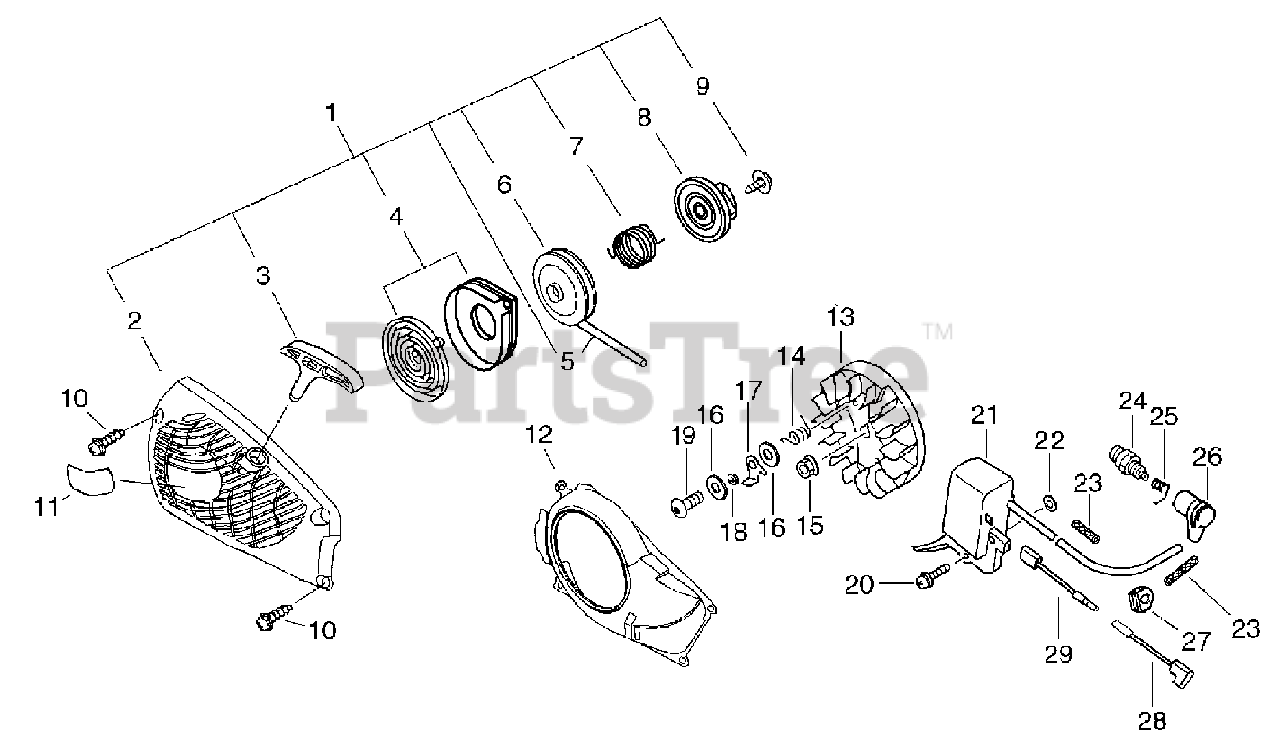

Flywheel, Ignition, Starter Parts Diagram

  • Title

1

Echo A051000794

STARTER ASSY

$107.99

$

Usually ships in 2-4 days

0

1

Echo A051000794

STARTER ASSY

$107.99

$

Usually ships in 2-4 days

0

2

Echo P022008772

STARTER ASSY

$37.99

$

Usually ships in 2-4 days

0

2

Echo P022008772

STARTER ASSY

$37.99

$

Usually ships in 2-4 days

0

3

Echo P022005891

GRIP, STARTER

$7.49

$

In Stock, Qty 6

0

3

Echo P022005891

GRIP, STARTER

$7.49

$

In Stock, Qty 6

0

4

Echo P022001330

SPRING KIT, RECOIL

$18.99

$

In Stock, only 1 left!

0

4

Echo P022001330

SPRING KIT, RECOIL

$18.99

$

In Stock, only 1 left!

0

5

Echo P022008440

ROPE, STARTER 3.5×900

$5.99

$

In Stock, Qty 6

0

5

Echo P022008440

ROPE, STARTER 3.5×900

$5.99

$

In Stock, Qty 6

0

6

Echo A506000460

REEL, ROPE

$17.99

$

In Stock, only 4 left!

0

6

Echo A506000460

REEL, ROPE

$17.99

$

In Stock, only 4 left!

0

7

Echo V452001320

SPRING, TORSION

$10.99

$

In Stock, Qty 7

0

7

Echo V452001320

SPRING, TORSION

$10.99

$

In Stock, Qty 7

0

8

Echo A507000110

PAWL CATCHER

$9.49

$

In Stock, only 2 left!

0

8

Echo A507000110

PAWL CATCHER

$9.49

$

In Stock, only 2 left!

0

9

Echo 17723661830

SCREW
(Superseded to V253000310)

$1.99

$

In Stock, Qty 20+

0

9

Echo 17723661830

SCREW
(Superseded to V253000310)

$1.99

$

In Stock, Qty 20+

0

10

Echo 90025604016

SCREW 4×16

$0.99

$

In Stock, Qty 20+

0

10

Echo 90025604016

SCREW 4×16

$0.99

$

In Stock, Qty 20+

0

11

Echo X502000102

LABEL - ECHO

$3.99

$

Usually ships in 2-4 days

0

11

Echo X502000102

LABEL - ECHO

$3.99

$

Usually ships in 2-4 days

0

12

Echo A172000501

COVER, FAN

$13.99

$

Usually ships in 2-4 days

0

12

Echo A172000501

COVER, FAN

$13.99

$

Usually ships in 2-4 days

0

13

Echo A409000170

FLYWHEEL

$68.99

$

Usually ships in 2-4 days

0

13

Echo A409000170

FLYWHEEL

$68.99

$

Usually ships in 2-4 days

0

14

Echo 17723435430

SPRING, TORSION

$2.99

$

In Stock, only 2 left!

0

14

Echo 17723435430

SPRING, TORSION

$2.99

$

In Stock, only 2 left!

0

15

Echo 90051500008

NUT, FLANGE M8

$1.99

$

In Stock, only 4 left!

0

15

Echo 90051500008

NUT, FLANGE M8

$1.99

$

In Stock, only 4 left!

0

16

Echo 900603-00005

WASHER 5.5×12×0.8

$0.99

$

In Stock, Qty 20+

0

16

Echo 900603-00005

WASHER 5.5×12×0.8

$0.99

$

In Stock, Qty 20+

0

17

Echo A514000020

PAWL

$3.99

$

In Stock, Qty 15

0

17

Echo A514000020

PAWL

$3.99

$

In Stock, Qty 15

0

18

Echo 17724704630

SPACER 5.2×8×2.1

$2.49

$

In Stock, only 2 left!

0

18

Echo 17724704630

SPACER 5.2×8×2.1

$2.49

$

In Stock, only 2 left!

0

19

Echo V203000080

BOLT 5×14

$2.99

$

Usually ships in 2-4 days

0

19

Echo V203000080

BOLT 5×14

$2.99

$

Usually ships in 2-4 days

0

20

Echo 90023805022

SCREW 5×22

$0.99

$

In Stock, only 4 left!

0

20

Echo 90023805022

SCREW 5×22

$0.99

$

In Stock, only 4 left!

0

21

Echo A411000150

COIL, IGNITION

$90.99

$

In Stock, Qty 5

0

21

Echo A411000150

COIL, IGNITION

$90.99

$

In Stock, Qty 5

0

22

Echo 15011716430

WASHER 5.2×12×3

$3.49

$

In Stock, Qty 20+

0

22

Echo 15011716430

WASHER 5.2×12×3

$3.49

$

In Stock, Qty 20+

0

23

Echo V475002390

TUBE, INSULATOR 7×8.6×40

$1.49

$

Usually ships in 2-4 days

0

23

Echo V475002390

TUBE, INSULATOR 7×8.6×40

$1.49

$

Usually ships in 2-4 days

0

24

Echo 15901010630

SPARK PLUG - BPM7A
(Superseded to 15901010230)

$3.99

$

In Stock, Qty 20+

0

24

Echo 15901010630

SPARK PLUG - BPM7A
(Superseded to 15901010230)

$3.99

$

In Stock, Qty 20+

0

25

Echo A426000010

TERMINAL, SPARK PLUG

$1.99

$

In Stock, Qty 20+

0

25

Echo A426000010

TERMINAL, SPARK PLUG

$1.99

$

In Stock, Qty 20+

0

26

Echo A427000013

CAP, SPARK PLUG

$3.99

$

In Stock, Qty 20+

0

26

Echo A427000013

CAP, SPARK PLUG

$3.99

$

In Stock, Qty 20+

0

27

Echo 15611004920

GROMMET

$0.99

$

In Stock, Qty 20+

0

27

Echo 15611004920

GROMMET

$0.99

$

In Stock, Qty 20+

0

28

Echo 16201055930

LEAD

$5.49

$

Usually ships in 2-4 days

0

28

Echo 16201055930

LEAD

$5.49

$

Usually ships in 2-4 days

0

29

Echo V485000140

LEAD - IGNITION

$5.49

$

Usually ships in 2-4 days

0

29

Echo V485000140

LEAD - IGNITION

$5.49

$

Usually ships in 2-4 days

0
