CS-350 TES - Echo Chainsaw (SN: C48736001001 - C48736999999) Engine, Engine Housing Parts Diagram

Chainsaw

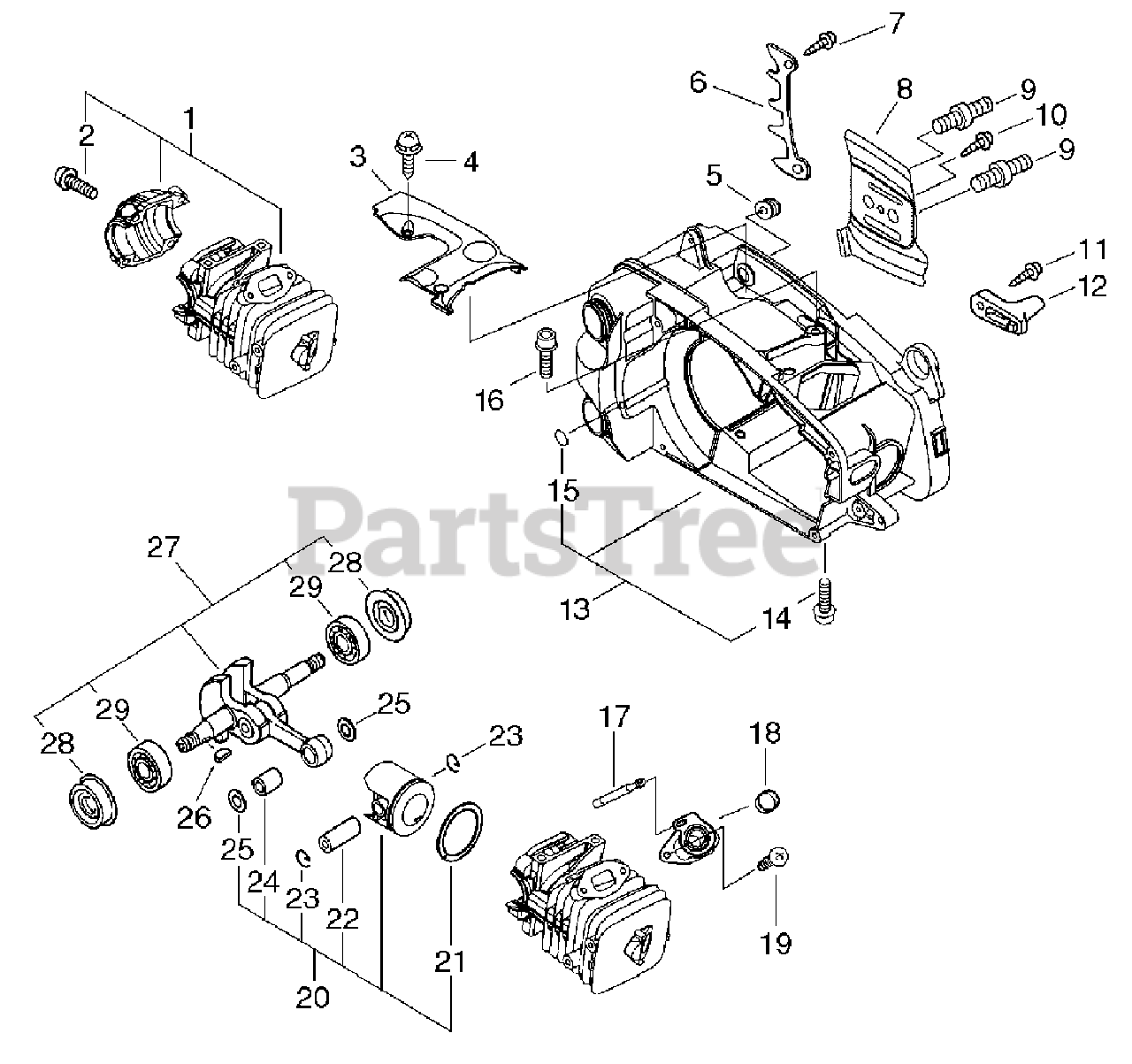

Engine, Engine Housing Parts Diagram

  • Title

1

Echo P021009250

CRANKCASE KIT

$192.99

$

Usually ships in 2-4 days

0

1

Echo P021009250

CRANKCASE KIT

$192.99

$

Usually ships in 2-4 days

0

2

Echo 90016205025

BOLT 5×25

$0.99

$

In Stock, Qty 20+

0

2

Echo 90016205025

BOLT 5×25

$0.99

$

In Stock, Qty 20+

0

3

Echo A127000050

COVER, DUST

$3.49

$

Usually ships in 2-4 days

0

3

Echo A127000050

COVER, DUST

$3.49

$

Usually ships in 2-4 days

0

4

Echo 90025304012

SCREW 4×12

$1.49

$

In Stock, only 2 left!

0

4

Echo 90025304012

SCREW 4×12

$1.49

$

In Stock, only 2 left!

0

5

Echo 16391130130

PLUG

$2.49

$

Usually ships in 2-4 days

0

5

Echo 16391130130

PLUG

$2.49

$

Usually ships in 2-4 days

0

6

Echo C304000000

SPIKE, BUMPER

$5.49

$

In Stock, only 1 left!

0

6

Echo C304000000

SPIKE, BUMPER

$5.49

$

In Stock, only 1 left!

0

7

Echo 90025305020

SCREW, TAPPING 5×20

$1.99

$

In Stock, Qty 20+

0

7

Echo 90025305020

SCREW, TAPPING 5×20

$1.99

$

In Stock, Qty 20+

0

8

Echo C305000080

PLATE, GUIDE - INNER

$7.99

$

In Stock, only 2 left!

0

8

Echo C305000080

PLATE, GUIDE - INNER

$7.99

$

In Stock, only 2 left!

0

9

Echo V224000031

BOLT, STUD 6

$1.99

$

In Stock, Qty 20+

0

9

Echo V224000031

BOLT, STUD 6

$1.99

$

In Stock, Qty 20+

0

10

Echo 90025304010

SCREW 4×10

$0.99

$

In Stock, Qty 9

0

10

Echo 90025304010

SCREW 4×10

$0.99

$

In Stock, Qty 9

0

11

Echo 90025305020

SCREW, TAPPING 5×20

$1.99

$

In Stock, Qty 20+

0

11

Echo 90025305020

SCREW, TAPPING 5×20

$1.99

$

In Stock, Qty 20+

0

12

Echo 43302635430

CHAIN CATCHER

$2.49

$

In Stock, Qty 20+

0

12

Echo 43302635430

CHAIN CATCHER

$2.49

$

In Stock, Qty 20+

0

13

Echo P021008678

COVER KIT, ENGINE
(Superseded to P021008679)

$112.99

$

Usually ships in 2-4 days

0

13

Echo P021008678

COVER KIT, ENGINE
(Superseded to P021008679)

$112.99

$

Usually ships in 2-4 days

0

14

Echo 90010605030

BOLT 5×30

$0.99

$

In Stock, Qty 8

0

14

Echo 90010605030

BOLT 5×30

$0.99

$

In Stock, Qty 8

0

15

Echo 900724-00004

O-RING S-4
(Superseded to 90072400004)

$1.99

$

In Stock, only 3 left!

0

15

Echo 900724-00004

O-RING S-4
(Superseded to 90072400004)

$1.99

$

In Stock, only 3 left!

0

16

Echo 90010605020

BOLT 5×20

$1.49

$

In Stock, only 3 left!

0

16

Echo 90010605020

BOLT 5×20

$1.49

$

In Stock, only 3 left!

0

17

Echo V470000482

PIPE, PULSE 3×7×65

$10.99

$

In Stock, only 3 left!

0

17

Echo V470000482

PIPE, PULSE 3×7×65

$10.99

$

In Stock, only 3 left!

0

18

Echo V359000060

COLLAR 16

$3.49

$

Usually ships in 2-4 days

0

18

Echo V359000060

COLLAR 16

$3.49

$

Usually ships in 2-4 days

0

19

Echo 9142005012

SCREW 5×12

$0.99

$

Usually ships in 2-4 days

0

19

Echo 9142005012

SCREW 5×12

$0.99

$

Usually ships in 2-4 days

0

20

Echo P021009230

PISTON KIT

$70.99

$

Usually ships in 2-4 days

0

20

Echo P021009230

PISTON KIT

$70.99

$

Usually ships in 2-4 days

0

21

Echo A101000120

RING, PISTON

$6.99

$

Usually ships in 2-4 days

0

21

Echo A101000120

RING, PISTON

$6.99

$

Usually ships in 2-4 days

0

22

Echo 10001315330

PIN, PISTON

$7.99

$

Usually ships in 2-4 days

0

22

Echo 10001315330

PIN, PISTON

$7.99

$

Usually ships in 2-4 days

0

23

Echo 100015-04630

RING, SNAP
(Superseded to 10001504630)

$0.99

$

In Stock, Qty 20+

0

23

Echo 100015-04630

RING, SNAP
(Superseded to 10001504630)

$0.99

$

In Stock, Qty 20+

0

24

Echo V553000040

BEARING, NEEDLE 8

$11.99

$

Usually ships in 2-4 days

0

24

Echo V553000040

BEARING, NEEDLE 8

$11.99

$

Usually ships in 2-4 days

0

25

Echo 10001460930

WASHER, THRUST

$5.99

$

Usually ships in 2-4 days

0

25

Echo 10001460930

WASHER, THRUST

$5.99

$

Usually ships in 2-4 days

0

26

Echo 10014212330

KEY, WOODRUFF

$1.99

$

In Stock, only 3 left!

0

26

Echo 10014212330

KEY, WOODRUFF

$1.99

$

In Stock, only 3 left!

0

27

Echo P021010703

CRANKSHAFT ASSY

$229.99

$

Usually ships in 2-4 days

0

27

Echo P021010703

CRANKSHAFT ASSY

$229.99

$

Usually ships in 2-4 days

0

28

Echo V505000011

SEAL, OIL 12

$9.49

$

In Stock, Qty 8

0

28

Echo V505000011

SEAL, OIL 12

$9.49

$

In Stock, Qty 8

0

29

Echo 9403536201

BEARING, BALL - 6201 C3

$9.99

$

In Stock, only 3 left!

0

29

Echo 9403536201

BEARING, BALL - 6201 C3

$9.99

$

In Stock, only 3 left!

0
