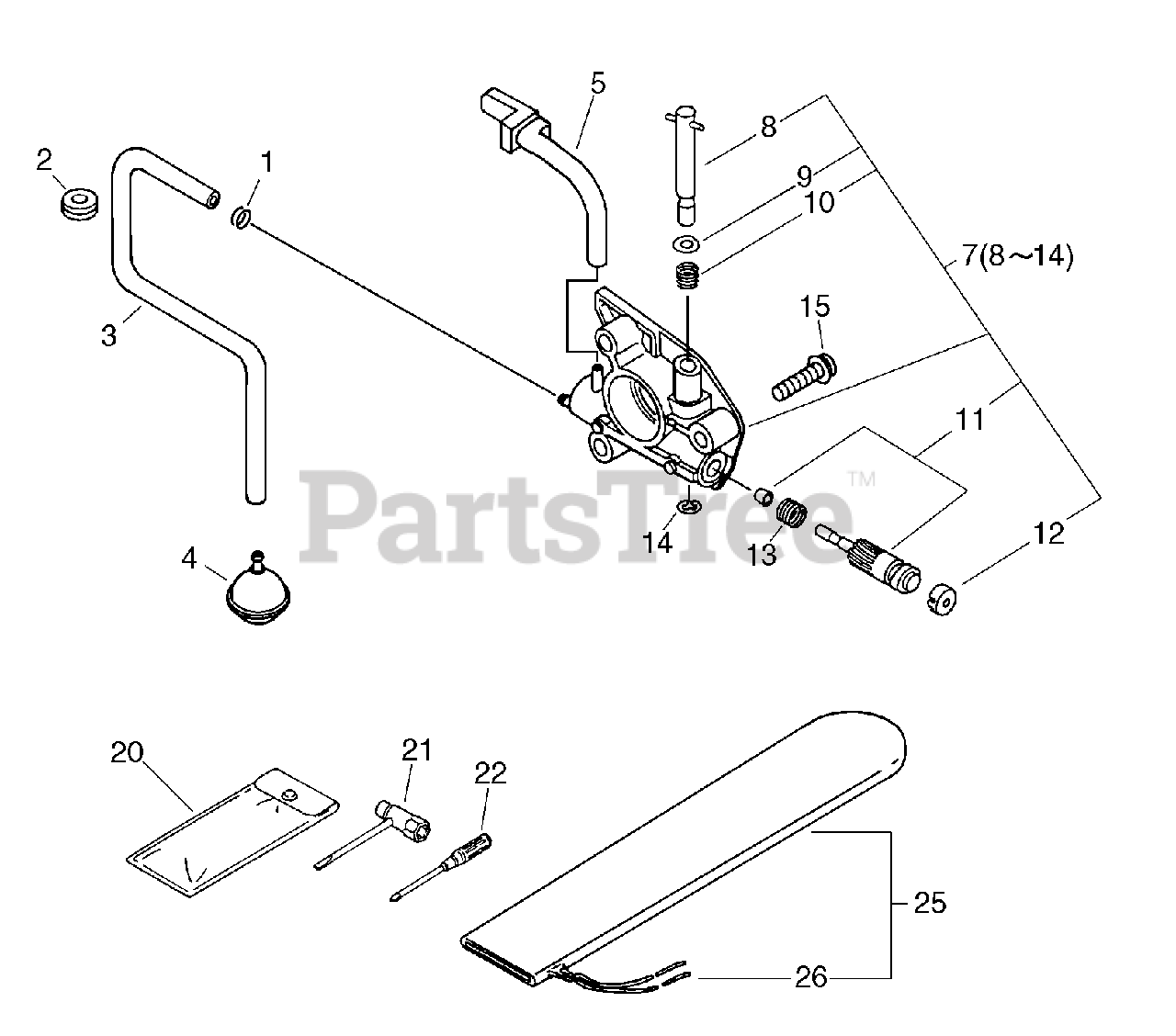

CS-3500 - Echo Chainsaw Auto Oiler System Parts Diagram

Chainsaw

Auto Oiler System Parts Diagram

  • Title

1

Echo V490001230

CLIP Ø6.5 MM

$0.99

$

In Stock, Qty 20+

0

2

Echo 13211512330

GROMMET

$1.49

$

In Stock, Qty 10

0

3

Echo 43721035430

PIPE, OIL
(Superseded to 43721035431)

$6.49

$

In Stock, Qty 10

0

4

Echo 43620514730

FILTER, OIL

$10.99

$

In Stock, only 3 left!

0

5

Echo 43721139133

PIPE, OIL OUTLET
(Superseded to 43721139134)

$2.49

$

In Stock, only 2 left!

0

7

Echo 43700238330

AUTO-OILER ASSY

$61.99

$

In Stock, only 4 left!

0

8

Echo 43701638330

SCREW, ADJUSTER

$17.99

$

Usually ships in 2-4 days

0

9

Echo 43702937330

WASHER

$3.49

$

In Stock, only 1 left!

0

10

Echo 43701537330

SPRING

$4.49

$

Usually ships in 2-4 days

0

11

Echo 43702437330

PLUNGER ASSY

$28.99

$

Usually ships in 2-4 days

0

12

Echo 43706238330

CAP, OIL PUMP

$5.99

$

Usually ships in 2-4 days

0

13

Echo 43701938330

SPRING

$4.49

$

Usually ships in 2-4 days

0

14

Echo 12312715030

E-RING

$0.99

$

In Stock, Qty 5

0

15

Echo 90022304016

SCREW 4×16

$0.99

$

In Stock, Qty 20+

0

20

Echo 89851039130

BAG, TOOL

$1.99

$

In Stock, only 3 left!

0

21

Echo 89541039131

T-WRENCH 10×19 MM
(Superseded to 89541039132)

$4.49

$

In Stock, only 4 left!

0

22

Echo 89581203930

SCREWDRIVER, PHILLIPS

$4.99

$

In Stock, only 1 left!

0

25

Echo 89851338330

COVER, GUIDE BAR
(Superseded to 89856738330)

$18.99

$

Usually ships in 2-4 days

0

26

Echo 89856814530

ROPE 5×900

$1.99

$

Usually ships in 2-4 days

0
