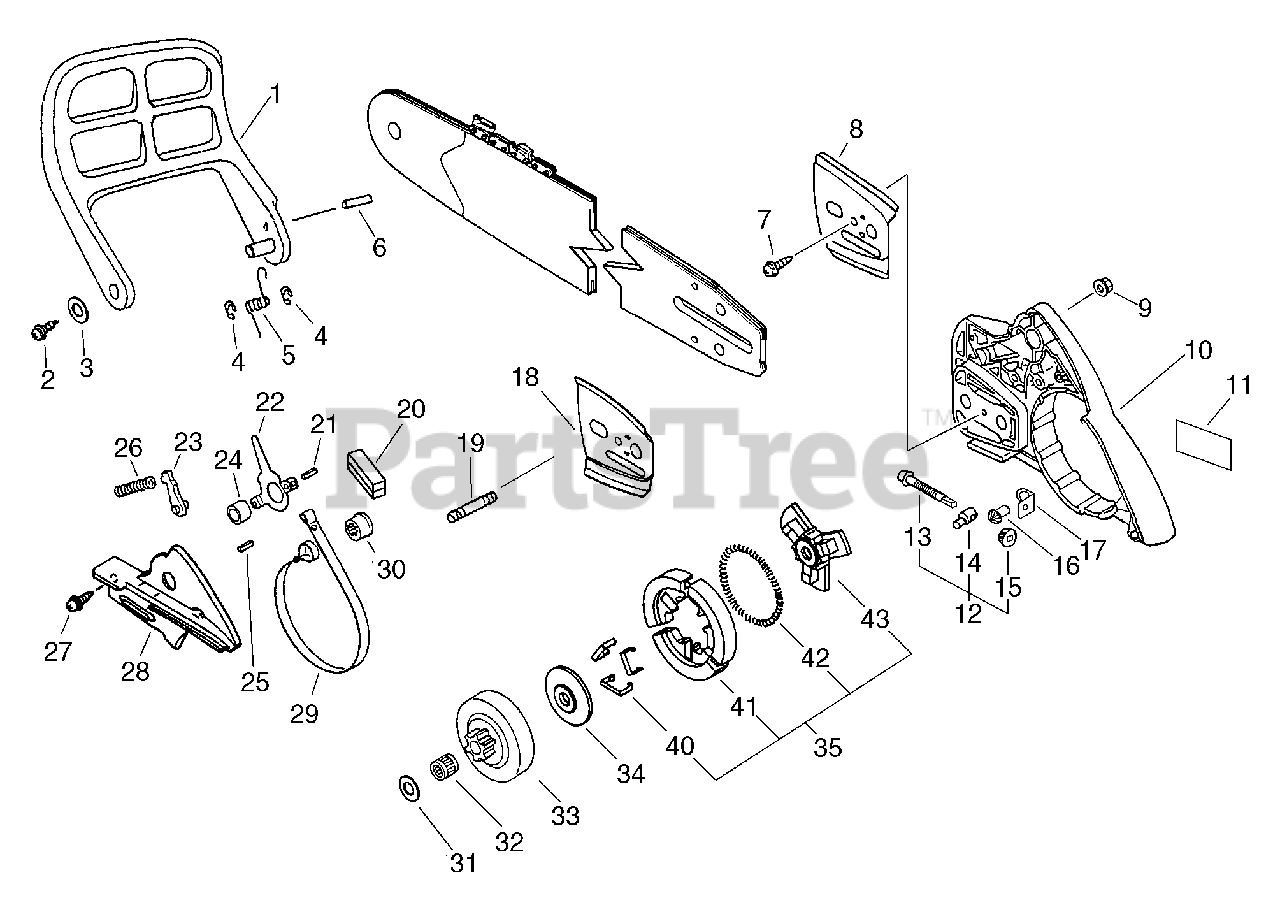

CS-3500 - Echo Chainsaw Clutch, Chain Brake Assembly Parts Diagram

Chainsaw

Clutch, Chain Brake Assembly Parts Diagram

  • Title

Echo C032000020

CHAIN BRAKE ASSY
(Superseded to C032000021)

$94.99

$

Usually ships in 2-4 days

0

1

Echo C320000000

LEVER, BRAKE

$55.99

$

Usually ships in 2-4 days

0

2

Echo 90025304012

SCREW 4×12

$1.49

$

In Stock, only 2 left!

0

3

Echo 17721404630

WASHER 4.1×15.5×1T

$0.99

$

In Stock, Qty 5

0

4

Echo 90070000008

RING, RETAINING - 8

$0.99

$

Usually ships in 2-4 days

0

5

Echo 43312260930

SPRING, BRAKE

$6.49

$

Usually ships in 2-4 days

0

6

Echo 90033030120

PIN 3×12

$0.99

$

In Stock, only 1 left!

0

7

Echo 90025304010

SCREW 4×10

$0.99

$

In Stock, Qty 9

0

8

Echo 43301260930

PLATE, GUIDE

$7.99

$

Usually ships in 2-4 days

0

9

Echo 43301903933

NUT, FLANGE M6

$1.49

$

In Stock, Qty 20+

0

10

Echo 43301060931

GUARD, SPROCKET

$62.99

$

Usually ships in 2-4 days

0

11

Echo X502000000

LABEL - ECHO

$3.99

$

In Stock, only 2 left!

0

12

Echo P021000061

TENSIONER ASSY, CHAIN
(Superseded to P021000062)

$24.99

$

In Stock, only 2 left!

0

13

Echo V203000020

BOLT 5
(Superseded to V203000021)

$6.99

$

In Stock, only 1 left!

0

14

Echo C309000030

TENSIONER, CHAIN

$5.49

$

In Stock, Qty 20+

0

15

Echo V651000010

GEAR, BEVEL
(Superseded to V651000011)

$9.49

$

In Stock, Qty 20+

0

16

Echo V651000000

GEAR, BEVEL
(Superseded to V651000001)

$9.49

$

In Stock, Qty 20+

0

17

Echo V150000030

PLATE, EYE

$5.49

$

Usually ships in 2-4 days

0

18

Echo 43301360930

PLATE, GUIDE

$7.99

$

Usually ships in 2-4 days

0

19

Echo 43301103931

BOLT, STUD 6
(Superseded to V224000030)

$1.99

$

In Stock, Qty 20+

0

20

Echo 43331232630

SEAL, BRAKE

$1.49

$

In Stock, only 3 left!

0

21

Echo 90033040088

PIN, SPRING 4×8.8

$1.49

$

In Stock, only 4 left!

0

22

Echo 43311760930

CONNECTOR, BRAKE

$24.99

$

Usually ships in 2-4 days

0

23

Echo 43320935430

STOPPER, BRAKE

$5.99

$

In Stock, only 2 left!

0

24

Echo 43311635430

SPACER 8×12×9

$6.49

$

In Stock, only 1 left!

0

25

Echo 90034225012

PIN, SPRING 2.5×12

$1.99

$

Usually ships in 2-4 days

0

26

Echo 43312235430

SPRING, COMPRESSION

$3.99

$

In Stock, only 2 left!

0

27

Echo 90025304012

SCREW 4×12

$1.49

$

In Stock, only 2 left!

0

28

Echo 43331060930

COVER, BRAKE

$7.99

$

Usually ships in 2-4 days

0

29

Echo 43312360930

BAND, BRAKE
(Superseded to C328000070)

$10.99

$

Usually ships in 2-4 days

0

30

Echo 43314235430

ADJUSTER, BRAKE

$3.99

$

In Stock, only 2 left!

0

31

Echo 17501439130

WASHER, CLUTCH
(Superseded to 17501439131)

$2.99

$

In Stock, Qty 20+

0

32

Echo 17501235630

BEARING, NEEDLE 10×13×10

$15.99

$

In Stock, Qty 17

0

33

Echo 17500539131

DRUM, CLUTCH
(Superseded to 17500539132)

$22.99

$

In Stock, Qty 13

0

34

Echo 17501939430

PLATE, CLUTCH

$9.99

$

In Stock, Qty 7

0

35

Echo A056000010

CLUTCH ASSY

$64.99

$

In Stock, only 2 left!

0

40

Echo 17502259530

SPRING, FLAT

$4.49

$

In Stock, Qty 6

0

41

Echo P021000270

SHOE SET, CLUTCH (3PCS)

$41.99

$

In Stock, only 1 left!

0

42

Echo 17501839430

SPRING, TORSION

$3.99

$

In Stock, only 2 left!

0

43

Echo A552000000

HUB, CLUTCH

$17.99

$

Usually ships in 2-4 days

0
