CS-3500 - Echo Chainsaw Engine, Crankcase, Engine Cover Parts Diagram

Chainsaw

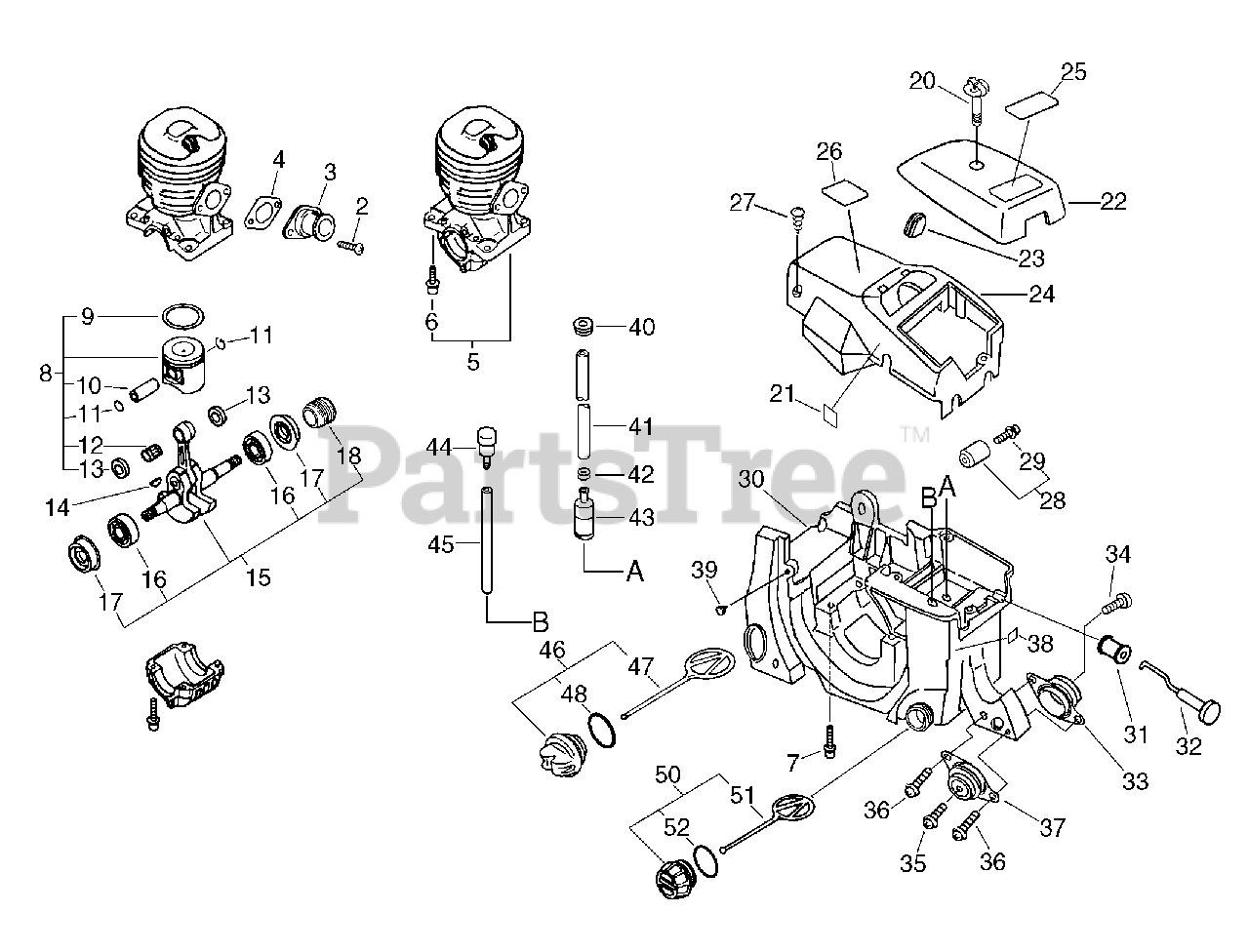

Engine, Crankcase, Engine Cover Parts Diagram

  • Title

2

Echo 900238-05012

SCREW 5×12

$0.99

$

In Stock, Qty 7

0

3

Echo 13051039932

ADAPTOR, INTAKE

$28.99

$

Usually ships in 2-4 days

0

4

Echo 13001639930

GASKET, INTAKE

$3.49

$

In Stock, Qty 14

0

5

Echo P021000802

CRANKCASE SET
(Superseded to P021000803)

$258.99

$

Usually ships in 2-4 days

0

6

Echo 900162-05022

BOLT 5×22

$0.99

$

In Stock, only 3 left!

0

7

Echo 90016205030

BOLT 5×30

$1.49

$

In Stock, only 2 left!

0

8

Echo 10000060930

PISTON KIT
(Superseded to 10000060931)

$140.99

$

Usually ships in 2-4 days

0

9

Echo 10001101110

RING, PISTON

$8.99

$

Usually ships in 2-4 days

0

10

Echo 10001315330

PIN, PISTON

$7.99

$

Usually ships in 2-4 days

0

11

Echo 100015-04630

RING, SNAP
(Superseded to 10001504630)

$0.99

$

In Stock, Qty 20+

0

12

Echo 10001222330

BEARING, NEEDLE
(Superseded to V553000040)

$11.99

$

Usually ships in 2-4 days

0

13

Echo 10001460930

WASHER, THRUST

$5.99

$

Usually ships in 2-4 days

0

14

Echo 10014212330

KEY, WOODRUFF

$1.99

$

In Stock, only 3 left!

0

15

Echo 10010160931

CRANKSHAFT ASSY
(Superseded to P021006855)

$190.99

$

Usually ships in 2-4 days

0

16

Echo 9403536201

BEARING, BALL - 6201 C3

$9.99

$

In Stock, only 3 left!

0

17

Echo 10021338330

SEAL, OIL

$6.99

$

Usually ships in 2-4 days

0

18

Echo 43706335630

GEAR, WORM
(Superseded to V652000070)

$4.99

$

Usually ships in 2-4 days

0

20

Echo A235000010

THUMBSCREW

$5.49

$

Usually ships in 2-4 days

0

21

Echo 89063138130

LABEL, CAUTION
(Superseded to 89063138131)

$2.99

$

Usually ships in 2-4 days

0

22

Echo A232000010

COVER, AIR FILTER
(Superseded to A232000011)

$11.99

$

Usually ships in 2-4 days

0

23

Echo 13033832430

GROMMET

$1.99

$

In Stock, only 3 left!

0

24

Echo 10151460932

COVER, CYLINDER
(Superseded to 10151460933)

$43.99

$

Usually ships in 2-4 days

0

25

Echo X503000270

LABEL, MODEL
(Superseded to Discontinued)

$

$

Not available

26

Echo 89034539230

LABEL, CAUTION
(Superseded to 89034539231)

$3.49

$

Usually ships in 2-4 days

0

27

Echo 90025604016

SCREW 4×16

$0.99

$

In Stock, Qty 20+

0

28

Echo 43300060930

CHAIN CATCHER KIT

$2.99

$

Usually ships in 2-4 days

0

29

Echo 90025305020

SCREW, TAPPING 5×20

$1.99

$

In Stock, Qty 20+

0

30

Echo 10400560932

COVER, ENGINE
(Superseded to 10400560937)

$194.99

$

Usually ships in 2-4 days

0

31

Echo 17881060930

GROMMET, CHOKE

$9.49

$

Usually ships in 2-4 days

0

32

Echo 17851038330

ROD, CHOKE
(Superseded to 17851038331)

$8.99

$

In Stock, Qty 9

0

33

Echo 10090535430

CUSHION
(Superseded to 10090735430)

$28.99

$

Usually ships in 2-4 days

0

34

Echo 900238-05025

SCREW 5×25

$0.99

$

In Stock, Qty 20+

0

35

Echo 90023805014

SCREW 5×14

$0.99

$

In Stock, Qty 11

0

36

Echo 900238-04022

SCREW 4×22

$0.99

$

In Stock, only 2 left!

0

37

Echo 10090536030

CUSHION

$23.99

$

Usually ships in 2-4 days

0

38

Echo 890157-39130

LABEL, STOP

$

$

Not available

39

Echo 436114-13930

VENT ASSY
(Superseded to 43611413930)

$7.49

$

In Stock, Qty 6

0

40

Echo 13211504920

GROMMET

$1.99

$

In Stock, Qty 20+

0

41

Echo 13201038331

PIPE, FUEL 3×6×165
(Superseded to 13201038332)

$9.99

$

In Stock, only 2 left!

0

42

Echo V490001230

CLIP Ø6.5 MM

$0.99

$

In Stock, Qty 20+

0

43

Echo 13120514930

FILTER, FUEL
(Superseded to 13120514931)

$9.99

$

In Stock, Qty 20+

0

44

Echo 131300-56430

VENT ASSY
(Superseded to 13130056431)

$8.99

$

In Stock, Qty 7

0

45

Echo 13201252030

PIPE, VENT - 3×5×50
(Superseded to V471001220)

$1.49

$

In Stock, Qty 9

0

46

Echo 43600139131

CAP ASSY
(Superseded to P021007630)

$12.99

$

In Stock, only 3 left!

0

47

Echo 13105119830

CONNECTOR, CAP L= 60 MM
(Superseded to A365000050)

$2.49

$

In Stock, Qty 5

0

48

Echo 90072502025

O-RING

$2.99

$

In Stock, only 4 left!

0

50

Echo 13100437931

CAP ASSY
(Superseded to 13100437932)

$12.99

$

In Stock, only 2 left!

0

51

Echo 13105119830

CONNECTOR, CAP L= 60 MM
(Superseded to A365000050)

$2.49

$

In Stock, Qty 5

0

52

Echo 90072000022

O-RING 22

$2.49

$

In Stock, only 2 left!
