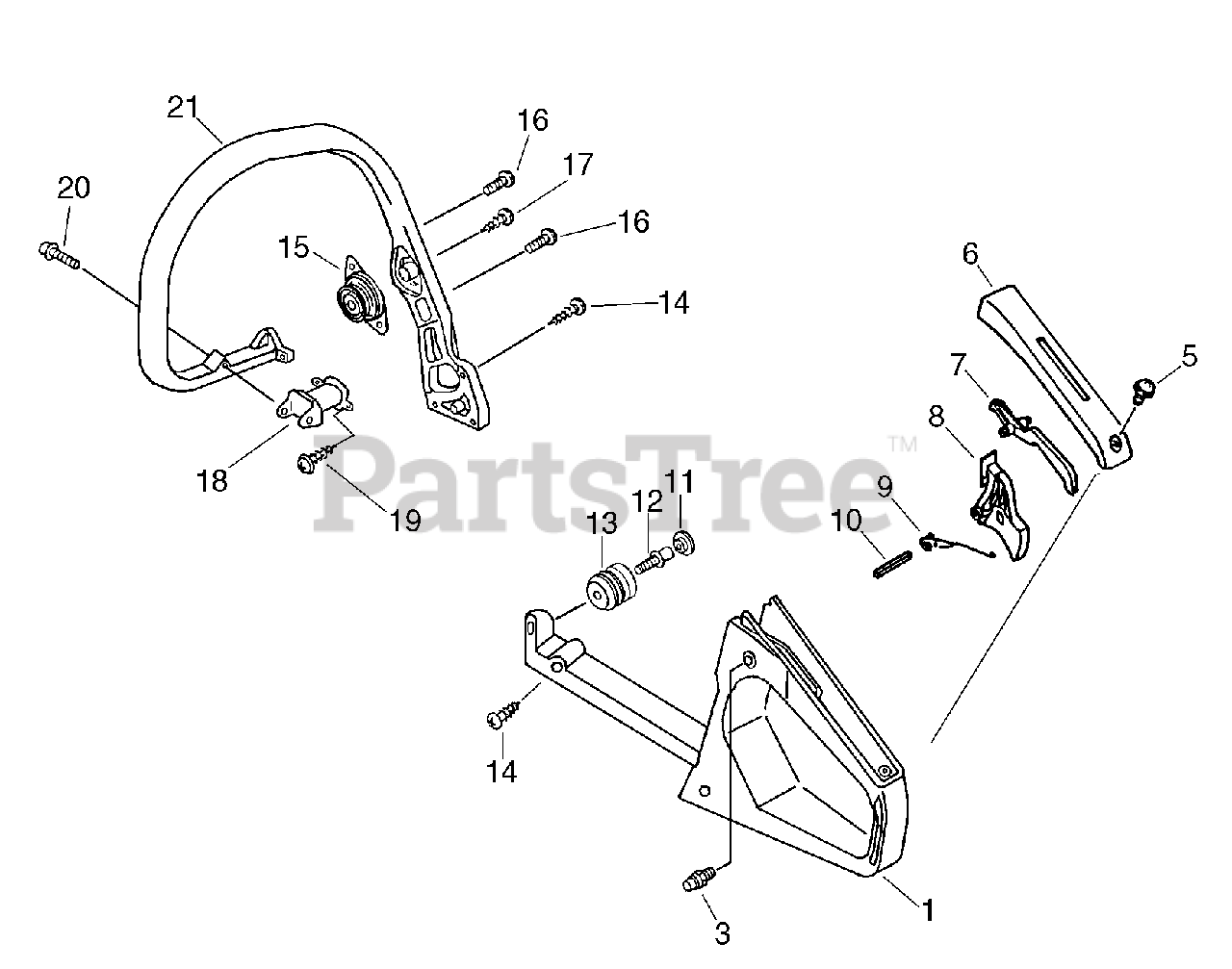

CS-3500 - Echo Chainsaw Handle, Throttle Control Parts Diagram

Chainsaw

Handle, Throttle Control Parts Diagram

  • Title

1

Echo 35111060932

HANDLE, REAR
(Superseded to 35111060933)

$49.99

$

Usually ships in 2-4 days

0

3

Echo 17830237930

LOCK, THROTTLE TRIGGER

$9.99

$

In Stock, only 3 left!

0

5

Echo 90025304012

SCREW 4×12

$1.49

$

In Stock, only 2 left!

0

6

Echo 35115535430

COVER, HANDLE
(Superseded to 35115535431)

$13.99

$

In Stock, only 2 left!

0

7

Echo 17809037930

LEVER, THROTTLE LOCKOUT

$5.99

$

In Stock, only 1 left!

0

8

Echo C450000000

TRIGGER, THROTTLE

$5.99

$

Usually ships in 2-4 days

0

9

Echo 17804335430

SPRING, THROTTLE RETURN

$2.99

$

Usually ships in 2-4 days

0

10

Echo 90034540030

PIN, SPRING 4×30

$1.99

$

In Stock, Qty 10

0

11

Echo 10091819830

CAP, CUSHION

$2.49

$

In Stock, only 2 left!

0

12

Echo 10091535430

SCREW

$3.99

$

Usually ships in 2-4 days

0

13

Echo 10091060030

CUSHION 5

$25.99

$

In Stock, only 2 left!

0

14

Echo 90025305020

SCREW, TAPPING 5×20

$1.99

$

In Stock, Qty 20+

0

15

Echo 10092235430

CUSHION, REAR HANDLE

$13.99

$

Usually ships in 2-4 days

0

16

Echo 900238-04016

SCREW 4×16

$0.99

$

Usually ships in 2-4 days

0

17

Echo 90025305016

SCREW 5×16

$0.99

$

In Stock, Qty 20+

0

18

Echo 35110560930

CUSHION

$33.99

$

Usually ships in 2-4 days

0

19

Echo 90025304012

SCREW 4×12

$1.49

$

In Stock, only 2 left!

0

20

Echo 900238-04022

SCREW 4×22

$0.99

$

In Stock, only 2 left!

0

21

Echo 35160660931

HANDLE, FRONT
(Superseded to 35160660932)

$

$

Not available
