CS-3500 - Echo Chainsaw Ignition, Starter Assembly Parts Diagram

Chainsaw

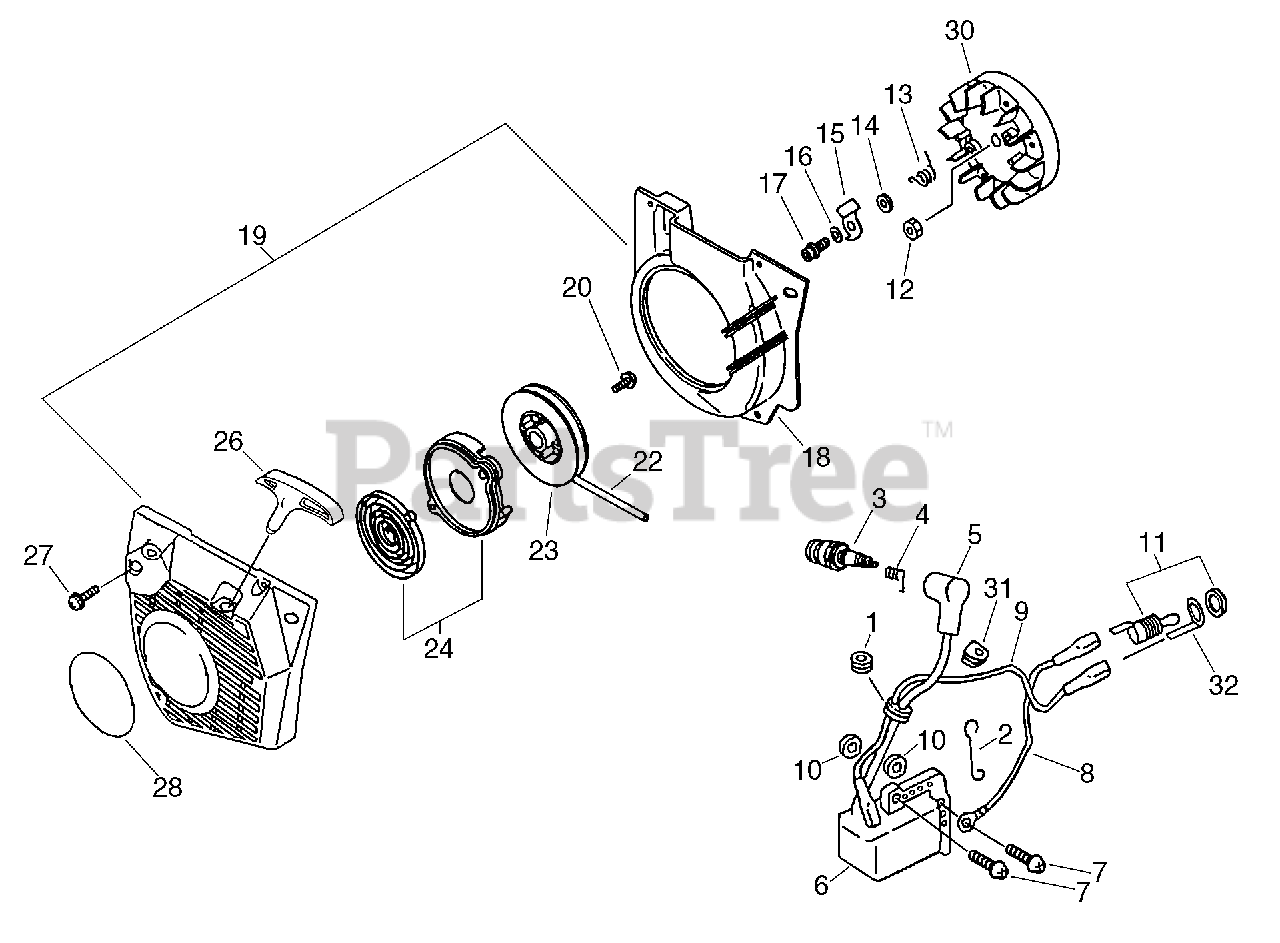

Ignition, Starter Assembly Parts Diagram

  • Title

1

Echo 15111204630

GROMMET

$0.99

$

In Stock, Qty 6

0

2

Echo 15911860930

CLIP

$

$

Not available

3

Echo 15901010230

SPARK PLUG - BPMR7A

$3.99

$

In Stock, Qty 20+

0

4

Echo 159011-03432

TERMINAL, SPARK PLUG
(Superseded to 15901103432)

$1.99

$

In Stock, Qty 20+

0

5

Echo 159012-01620

CAP, SPARK PLUG

$1.99

$

In Stock, Qty 11

0

6

Echo 15662660930

COIL, IGNITION
(Superseded to 15662660931)

$98.99

$

Usually ships in 2-4 days

0

7

Echo 900238-05025

SCREW 5×25

$0.99

$

In Stock, Qty 20+

0

8

Echo 16201060930

LEAD

$5.99

$

Usually ships in 2-4 days

0

9

Echo 16202152130

LEAD - GROUND
(Superseded to 16201052830)

$4.49

$

In Stock, only 2 left!

0

10

Echo 15011716430

WASHER 5.2×12×3

$3.49

$

In Stock, Qty 5

0

11

Echo 16340035430

SWITCH, ON-OFF

$11.99

$

Usually ships in 2-4 days

0

12

Echo 90051500008

NUT, FLANGE M8

$1.99

$

In Stock, Qty 5

0

13

Echo 17723435430

SPRING, TORSION

$2.99

$

In Stock, only 2 left!

0

14

Echo 17724704630

SPACER 5.2×8×2.1

$2.49

$

In Stock, only 2 left!

0

15

Echo A514000000

PAWL, STARTER
(Superseded to A514000001)

$3.99

$

In Stock, Qty 15

0

16

Echo 900603-00005

WASHER 5.5×12×0.8

$0.99

$

In Stock, Qty 20+

0

17

Echo 90021605012

SCREW 5×12

$0.99

$

Usually ships in 2-4 days

0

18

Echo 10151160930

COVER, FAN
(Superseded to 10151160931)

$13.99

$

Usually ships in 2-4 days

0

19

Echo 17720060931

CASE, STARTER
(Superseded to 17720060932)

$99.99

$

Usually ships in 2-4 days

0

20

Echo 177236-44330

SCREW
(Superseded to 17723644330)

$3.99

$

In Stock, Qty 10

0

22

Echo 17722660930

ROPE, STARTER

$8.99

$

Usually ships in 2-4 days

0

23

Echo 17721560930

REEL, ROPE

$17.99

$

Usually ships in 2-4 days

0

24

Echo 17720360930

SPRING, RECOIL

$18.99

$

Usually ships in 2-4 days

0

26

Echo P022001320

GRIP, STARTER

$4.49

$

Usually ships in 2-4 days

0

27

Echo 90025604016

SCREW 4×16

$0.99

$

In Stock, Qty 20+

0

28

Echo 89011849330

LABEL, ECHO

$7.49

$

In Stock, only 2 left!

0

30

Echo 15680060930

FLYWHEEL

$123.99

$

Usually ships in 2-4 days

0

31

Echo 15011204930

BUSHING

$1.49

$

Usually ships in 2-4 days

0

32

Echo 16811460930

TERMINAL, GROUND

$1.99

$

Usually ships in 2-4 days

0
