CS-351 VL - Echo Chainsaw Clutch, Cutting Attch Parts Diagram

CS-351VL: 357 x 240 x 212 mm (14.1 x 9.4 x 8.3 in); weight 5.1 kg (11.2 lb) dry. Air-cooled 2-stroke single-cylinder, 35.2 cc (2.148 cu in). Carburetor: Walbro diaphragm WA. Magneto: NGK BM-6A or Champion CJ-8 (breaker-point). Starter: recoil. Power transmission: automatic centrifugal clutch. Fuel mixture: 20:1. Fuel tank 7 (unspecified unit). Chain oil tank 0.38 L (12.85 fl oz). Chain pitch 1/4" (10 mm). Guide bar gauge 1/4" (10 mm). Safety devices: hand guard, throttle lock, chain catcher, anti-vibration. Optional: chain brake, spike bumper.

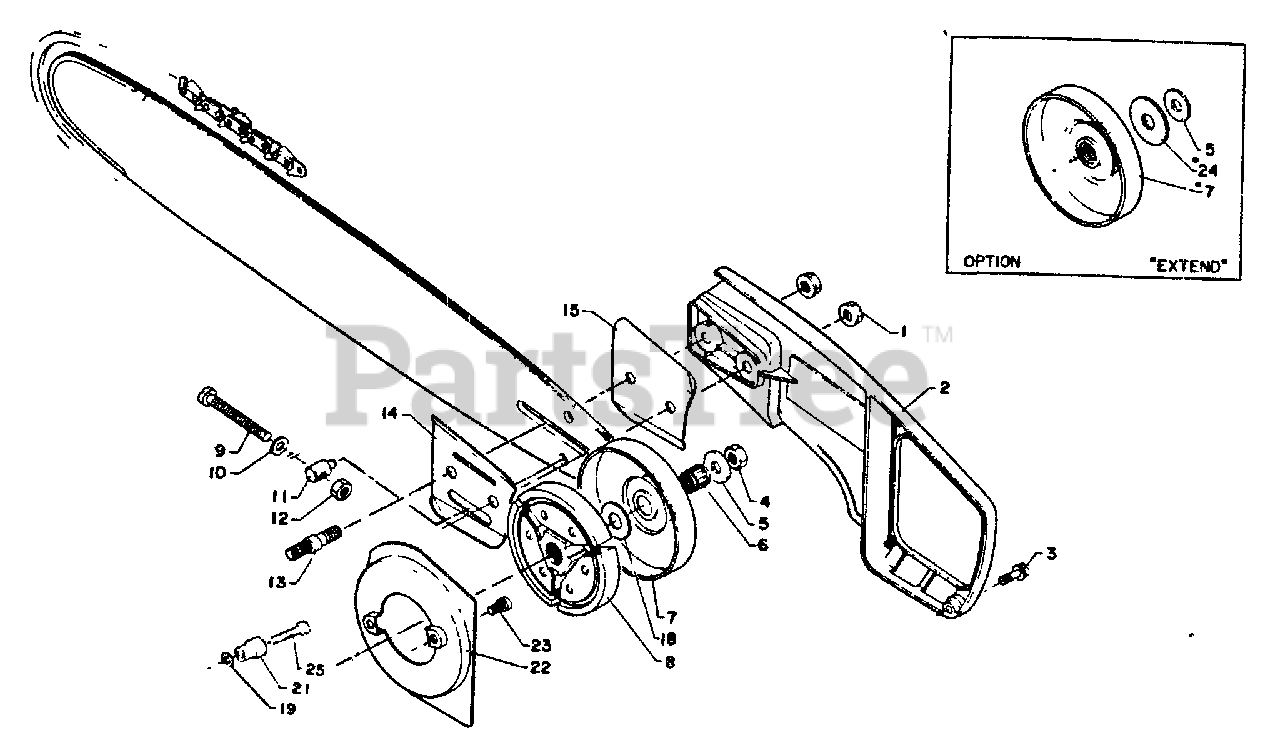

Clutch, Cutting Attch Parts Diagram

  • Title

1

Echo 43301903931

NUT - 6 -- FLANGE
(Superseded to 43301903932)

$1.49

$

In Stock, Qty 20+

0

2

Echo 43301010531

GUARD, SPROCKET
(Superseded to Discontinued)

$

$

Not available

3

Echo 43302710530

SCREW
(Superseded to 90022004014)

$0.99

$

Usually ships in 2-4 days

0

4

Echo 10013903930

LOCKNUT - 6
(Superseded to Discontinued)

$

$

Not available

5

Echo 17501403930

WASHER, CLUTCH

$5.99

$

Usually ships in 2-4 days

0

6

Echo 17501203930

BEARING, NEEDLE 8

$13.99

$

In Stock, only 2 left!

0

7

Echo 17500703930

DRUM, CLUTCH
(Superseded to Discontinued)

$

$

Not available

8

Echo 17500003930

CLUTCH ASSY
(Superseded to 17500003931)

$63.99

$

Usually ships in 2-4 days

0

9

Echo 43301602830

SCREW, ADJUSTER

$

$

Not available

10

Echo 10024702830

WASHER
(Superseded to Discontinued)

$

$

Not available

11

Echo 43301403932

TENSIONER
(Superseded to 43301403931)

$5.99

$

In Stock, Qty 20+

0

12

Echo 43302202830

LOCKNUT - 5
(Superseded to 90056200005)

$1.99

$

In Stock, Qty 20+

0

13

Echo 43301103930

STUD, GUIDE BAR
(Superseded to 43301103931)

$1.99

$

In Stock, Qty 20+

0

14

Echo 43301303930

PLATE, GUIDE - INNER
(Superseded to Discontinued)

$

$

Not available

15

Echo 43301203930

PLATE, GUIDE - OUTER
(Superseded to Discontinued)

$

$

Not available

18

Echo 17501503930

WASHER, CLUTCH
(Superseded to Discontinued)

$

$

Not available

19

Echo 900600-00005

WASHER, FLAT 5.5×10×0.8

$0.99

$

In Stock, Qty 20+

0

20

Echo 900605-00005

WASHER, SPRING 5

$0.99

$

In Stock, Qty 7

0

21

Echo 43300612830

CATCHER, CHAIN
(Superseded to 43300012830)

$

$

Not available

7

Echo 17500511530

CASE, CLUTCH
(Superseded to 17500515830)

Note: Low profile type Pitch 3/8 option

$

$

Not available

24

Echo 17501510430

WASHER, CLUTCH
(Superseded to Discontinued)

Note: Low profile type Pitch 3/8 option

$

$

Not available

7

Echo 17500510530

CASE, CLUTCH
(Superseded to Discontinued)

Note: 7 Tooth sprocket Pitch 3/8 option

$

$

Not available

5

Echo 17501410530

WASHER, CLUTCH

Note: 7 Tooth sprocket Pitch 3/8 option

$2.49

$

Usually ships in 2-4 days

0

22

Echo 17531010531

SEAL, DUST
(Superseded to Discontinued)

$

$

Not available

23

Echo 900241-04008

SCREW 4×8

$0.99

$

In Stock, Qty 10

0

25

Echo 90022005025

SCREW 5×25

$0.99

$

In Stock, Qty 19

0
