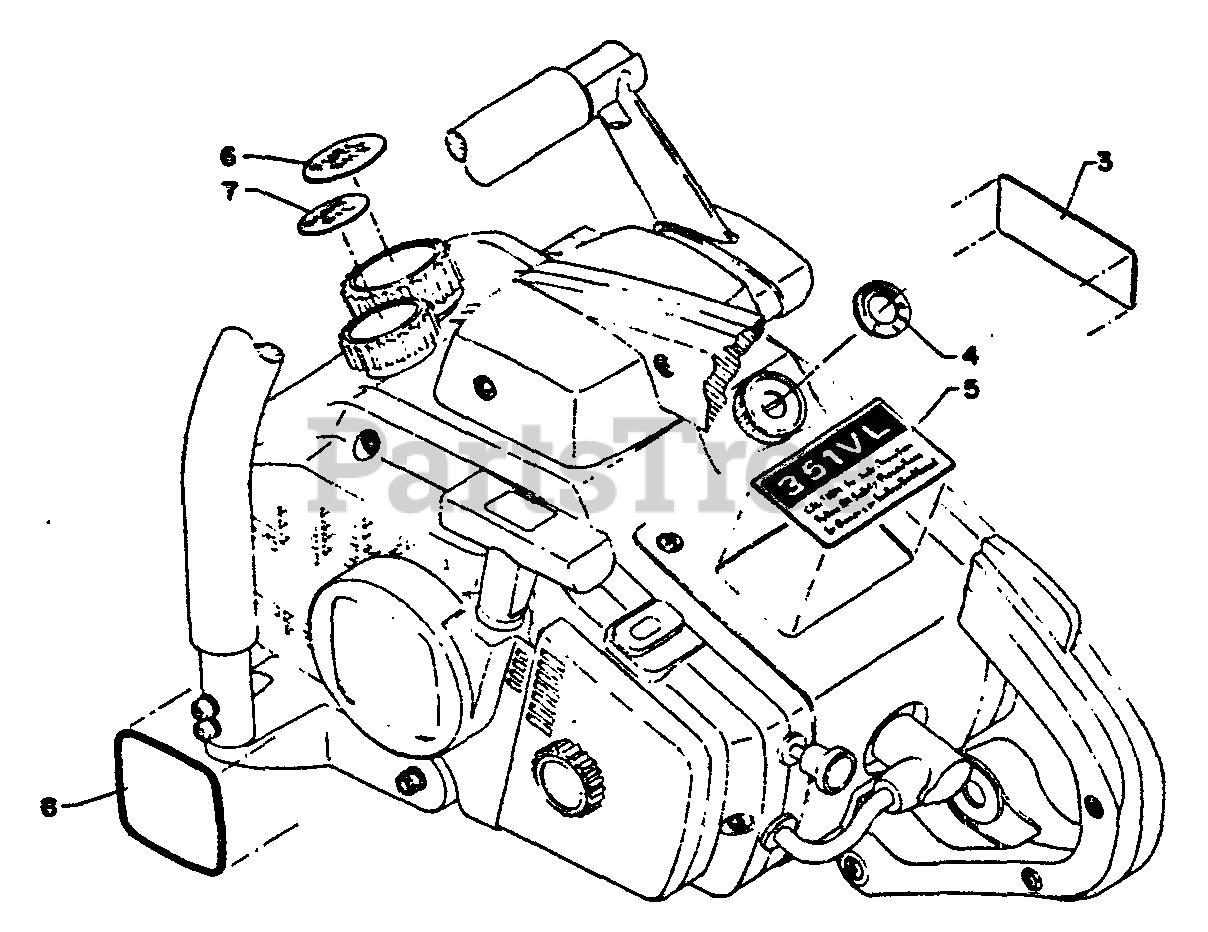

CS-351 VL - Echo Chainsaw Decals Parts Diagram

CS-351VL: 357 x 240 x 212 mm (14.1 x 9.4 x 8.3 in); weight 5.1 kg (11.2 lb) dry. Air-cooled 2-stroke single-cylinder, 35.2 cc (2.148 cu in). Carburetor: Walbro diaphragm WA. Magneto: NGK BM-6A or Champion CJ-8 (breaker-point). Starter: recoil. Power transmission: automatic centrifugal clutch. Fuel mixture: 20:1. Fuel tank 7 (unspecified unit). Chain oil tank 0.38 L (12.85 fl oz). Chain pitch 1/4" (10 mm). Guide bar gauge 1/4" (10 mm). Safety devices: hand guard, throttle lock, chain catcher, anti-vibration. Optional: chain brake, spike bumper.
