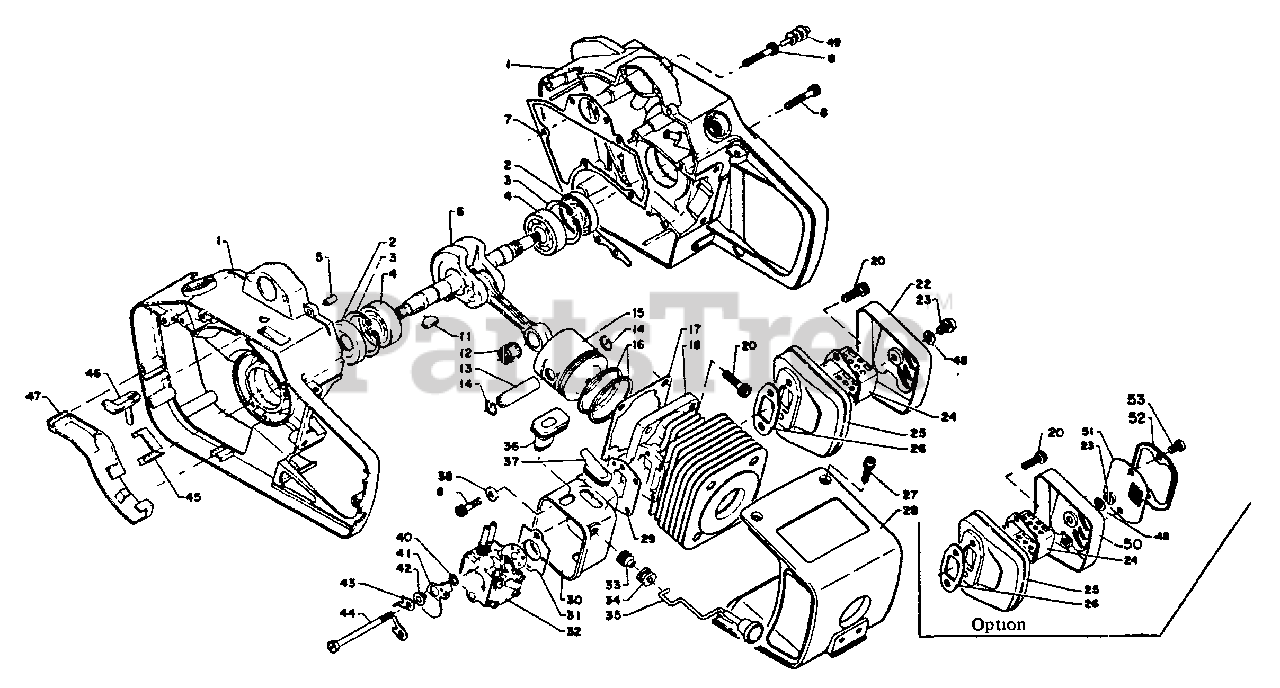

CS-351 VL - Echo Chainsaw Engine, Exhaust, Intake Parts Diagram

Chainsaw

Engine, Exhaust, Intake Parts Diagram

  • Title

1

Echo 10020010533

CRANKCASE KIT
(Superseded to Discontinued)

$

$

Not available

2

Echo 10021303930

SEAL, OIL
(Superseded to 10021203930)

$6.49

$

In Stock, Qty 9

0

3

Echo 90070200032

RING, SNAP Ø32

$2.49

$

In Stock, only 2 left!

0

4

Echo 9403536201

BEARING, BALL - 6201 C3

$9.99

$

In Stock, only 3 left!

0

5

Echo V622000020

PIN, LOCATING 4

$0.99

$

In Stock, only 4 left!

0

6

Echo 10010010530

CRANKSHAFT ASSY
(Superseded to Discontinued)

$

$

Not available

7

Echo 10024210531

GASKET, CRANKCASE
(Superseded to Discontinued)

$

$

Not available

8

Echo 90016204025

BOLT 4×25

$1.49

$

In Stock, Qty 7

0

11

Echo 10013101620

KEY

$3.49

$

Usually ships in 2-4 days

0

12

Echo 10001200720

BEARING, NEEDLE
(Superseded to 10001216131)

$13.99

$

In Stock, only 2 left!

0

13

Echo 10001310530

PIN, PISTON
(Superseded to Discontinued)

$

$

Not available

14

Echo 10001503930

RING, RETAINING
(Superseded to 10001503931)

$0.99

$

In Stock, Qty 11

0

15

Echo 10001010530

PISTON
(Superseded to Discontinued)

$

$

Not available

16

Echo 100011-10530

RING, PISTON

$8.49

$

In Stock, only 3 left!

0

17

Echo 10101010531

GASKET, CYLINDER
(Superseded to Discontinued)

$

$

Not available

18

Echo 10101110533

CYLINDER
(Superseded to Discontinued)

$

$

Not available

20

Echo 90016205020

BOLT 5×20

$1.49

$

In Stock, Qty 20+

0

22

Echo 14561310530

LID, MUFFLER
(Superseded to 14580810530)

$

$

Not available

23

Echo 90022005008

SCREW 5×8

$0.99

$

In Stock, only 3 left!

0

24

Echo 14561210530

BAFFLE, MUFFLER
(Superseded to Discontinued)

$

$

Not available

25

Echo 14560510530

MUFFLER
(Superseded to Discontinued)

$

$

Not available

26

Echo 14551010530

GASKET, EXHAUST
(Superseded to 14551010531)

$

$

Not available

27

Echo 90022004018

SCREW 4×18

$0.99

$

Usually ships in 2-4 days

0

28

Echo 10151410531

COVER, ENGINE
(Superseded to Discontinued)

Note: On saws before S/N 0061429 (with original cylinder) use 10151410530

$

$

Not available

29

Echo 13001010530

GASKET, INTAKE
(Superseded to Discontinued)

$

$

Not available

30

Echo 13001710531

INSULATOR, INTAKE
(Superseded to Discontinued)

$

$

Not available

31

Echo 13001610530

GASKET, INTAKE
(Superseded to Discontinued)

$

$

Not available

32

Echo 12300010530

CARBURETOR - WA-25
(Superseded to Discontinued)

$

$

Not available

33

Echo 17881102830

GROMMET
(Superseded to Discontinued)

$

$

Not available

34

Echo 17881002830

GROMMET, RUBBER

$0.99

$

Usually ships in 2-4 days

0

35

Echo 17851010530

ROD, CHOKE
(Superseded to Discontinued)

$

$

Not available

36

Echo 12901010531

GROMMET
(Superseded to Discontinued)

$

$

Not available

37

Echo 17821010530

RUBBER BUSH
(Superseded to Discontinued)

$

$

Not available

38

Echo 13003110530

WASHER
(Superseded to Discontinued)

$

$

Not available

40

Echo 17851603930

WASHER 5.5×8×0.8
(Superseded to 17851600830)

$0.99

$

In Stock, Qty 20+

0

41

Echo 17851510530

SHUTTER, CHOKE
(Superseded to Discontinued)

$

$

Not available

42

Echo 13001910530

SPACER

$1.99

$

Usually ships in 2-4 days

0

43

Echo 13003210530

RETAINER
(Superseded to Discontinued)

$

$

Not available

44

Echo 13002103930

BOLT

$1.99

$

In Stock, only 4 left!

0

45

Echo 17811210531

GUIDE, CABLE
(Superseded to Discontinued)

$

$

Not available

46

Echo 15911210530

CLAMP
(Superseded to Discontinued)

$

$

Not available

47

Echo 15911010530

CLAMP
(Superseded to Discontinued)

$

$

Not available

48

Echo 90061000005

WASHER, LOCK 5 MM

$0.99

$

Usually ships in 2-4 days

0

49

Echo 10027810130

SEAL, DUST

$2.49

$

Usually ships in 2-4 days

0

50

Echo 14580810530

LID, MUFFLER
(Superseded to Discontinued)

Note: Spark arrestor muffler option

$

$

Not available

51

Echo 14586210530

SCREEN, SPARK ARRESTER
(Superseded to Discontinued)

Note: Spark arrestor muffler option

$

$

Not available

52

Echo 14586310530

RETAINER, SCREEN
(Superseded to Discontinued)

Note: Spark arrestor muffler option

$

$

Not available

53

Echo 14564303730

SCREW 5×8
(Superseded to Discontinued)

Note: Spark arrestor muffler option

$

$

Not available

48

Echo 90061000005

WASHER, LOCK 5 MM

Note: Spark arrestor muffler option

$0.99

$

Usually ships in 2-4 days

0
