CS-351 VL - Echo Chainsaw Ignition, Starter, Air Cleaner Parts Diagram

CS-351VL: 357 x 240 x 212 mm (14.1 x 9.4 x 8.3 in); weight 5.1 kg (11.2 lb) dry. Air-cooled 2-stroke single-cylinder, 35.2 cc (2.148 cu in). Carburetor: Walbro diaphragm WA. Magneto: NGK BM-6A or Champion CJ-8 (breaker-point). Starter: recoil. Power transmission: automatic centrifugal clutch. Fuel mixture: 20:1. Fuel tank 7 (unspecified unit). Chain oil tank 0.38 L (12.85 fl oz). Chain pitch 1/4" (10 mm). Guide bar gauge 1/4" (10 mm). Safety devices: hand guard, throttle lock, chain catcher, anti-vibration. Optional: chain brake, spike bumper.

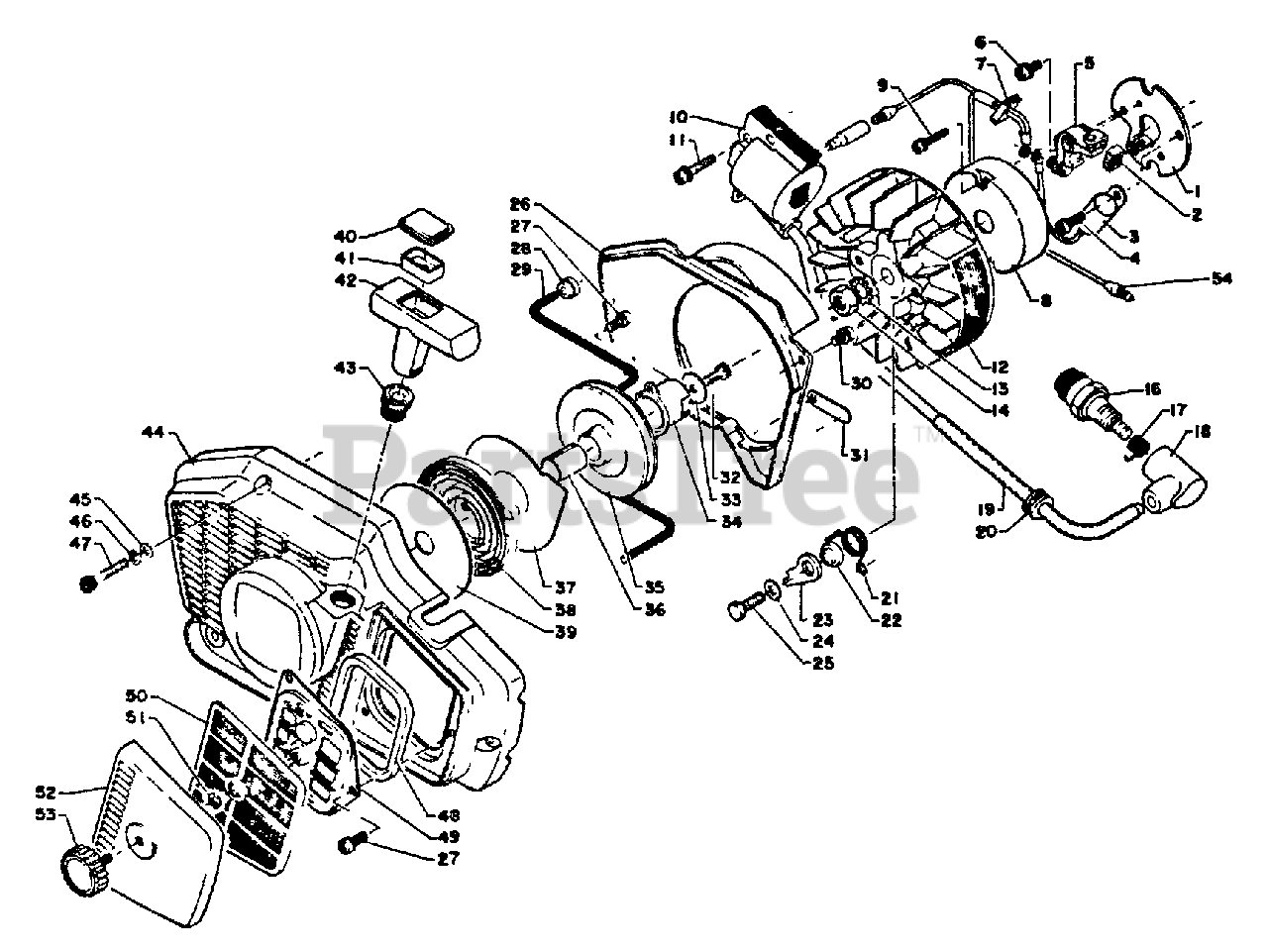

Ignition, Starter, Air Cleaner Parts Diagram

  • Title

1

Echo 15013203930

STATER PLATE
(Superseded to Discontinued)

$

$

Not available

2

Echo 15013403930

OILER
(Superseded to Discontinued)

$

$

Not available

3

Echo 15012703930

CONDENSER
(Superseded to Discontinued)

$

$

Not available

4

Echo 90024104010

SCREW - 4×10
(Superseded to 90024204010)

$0.99

$

In Stock, Qty 20+

0

5

Echo 15010103930

CONTACT POINT SET
(Superseded to Discontinued)

$

$

Not available

6

Echo 900242-04010

SCREW 4×10

$0.99

$

In Stock, Qty 20+

0

7

UNKNOWN

$

$

Not available

8

Echo 15411203430

COVER, BREAKER
(Superseded to 15611203930)

$

$

Not available

9

Echo 90022003025

SCREW 3×25
(Superseded to Discontinued)

$

$

Not available

10

Echo 15012610531

COIL, IGNITION
(Superseded to Discontinued)

$

$

Not available

11

Echo 900242-04020

SCREW 4×20

$0.99

$

In Stock, Qty 16

0

19

Echo 15011110530

TUBE
(Superseded to Discontinued)

$

$

Not available

12

Echo 15020003931

FLYWHEEL
(Superseded to Discontinued)

$

$

Not available

13

Echo 90061100008

WASHER

$0.99

$

Usually ships in 2-4 days

0

14

Echo 90050000008

NUT M8

$0.99

$

In Stock, Qty 20+

0

16

Echo 159010-00330

SPARK PLUG - BM6A
(Superseded to Discontinued)

$

$

Not available

16

Echo 15901010130

SPARK PLUG - BMR6A

Note: Anti-radio Interference Spark plug option

$3.99

$

Usually ships in 2-6 days

0

17

Echo 159011-03432

TERMINAL, SPARK PLUG
(Superseded to 15901103432)

$1.99

$

In Stock, Qty 20+

0

18

Echo 15901203433

CAP, SPARK PLUG

$8.49

$

In Stock, Qty 20+

0

20

Echo 150112-00310

GROMMET

$0.99

$

Usually ships in 2-4 days

0

21

Echo 17723403931

SPRING
(Superseded to Discontinued)

$

$

Not available

22

Echo 17724703932

SPACER

$2.49

$

Usually ships in 2-4 days

0

23

Echo 17721803930

PAWL, STARTER
(Superseded to Discontinued)

$

$

Not available

24

Echo 90060200005

WASHER 5.3×10×1
(Superseded to 90060300005)

$0.99

$

In Stock, Qty 20+

0

25

Echo 90010005016

BOLT - 5×16

$0.99

$

In Stock, only 1 left!

0

26

Echo 10153410531

PLATE, GUIDE
(Superseded to Discontinued)

$

$

Not available

Echo 17720010530

STARTER ASSY
(Superseded to Discontinued)

$

$

Not available

27

Echo 900241-04008

SCREW 4×8

$0.99

$

In Stock, Qty 10

0

28

Echo 177246-03930

CLIP, STARTER ROPE

$0.99

$

In Stock, only 2 left!

0

29

Echo 177226-03930

ROPE, STARTER 3.5×850
(Superseded to 17722603930)

Note: RePower BULK OPTION: 99944445000

$6.99

$

In Stock, only 2 left!

0

32

Echo 90016204014

BOLT 4×14

$1.49

$

In Stock, Qty 18

0

33

Echo 17721403930

WASHER 4.2×16.5×1

$0.99

$

In Stock, Qty 11

0

34

Echo 17724303930

PAWL CATCHER
(Superseded to Discontinued)

$

$

Not available

35

Echo 17721503930

REEL, ROPE
(Superseded to Discontinued)

$

$

Not available

36

Echo 17721603930

BUSHING
(Superseded to Discontinued)

$

$

Not available

37

Echo 17724210530

PLATE, STARTER
(Superseded to Discontinued)

$

$

Not available

38

Echo 177220-03930

SPRING, RECOIL

$21.99

$

In Stock, only 2 left!

0

39

Echo 17722103930

PLATE, SIDE
(Superseded to Discontinued)

$

$

Not available

40

Echo 17724402830

COVER, HANDLE

$0.99

$

Usually ships in 2-4 days

0

41

Echo 17722902830

WASHER

$1.99

$

Usually ships in 2-4 days

0

42

Echo 17722802830

GRIP, STARTER
(Superseded to 17722812330)

$30.99

$

In Stock, Qty 10

0

43

Echo 17722700230

GUIDE, ROPE
(Superseded to 17722705330)

$

$

Not available

44

Echo 10150710530

CASE, STARTER
(Superseded to Discontinued)

$

$

Not available

45

UNKNOWN

$

$

Not available

46

UNKNOWN

$

$

Not available

47

Echo 90016204025

BOLT 4×25

$1.49

$

In Stock, Qty 7

0

48

Echo 13032010530

GASKET, CARBURETOR CASE
(Superseded to Discontinued)

$

$

Not available

49

Echo 12900610531

PLATE
(Superseded to Discontinued)

$

$

Not available

50

Echo 13031010530

FILTER, AIR
(Superseded to Discontinued)

$

$

Not available

51

Echo 90070000003

E-RING 3

$0.99

$

In Stock, Qty 9

0

52

Echo 13031310530

COVER, AIR FILTER
(Superseded to Discontinued)

$

$

Not available

53

Echo 13040603930

THUMBSCREW
(Superseded to 13040614330)

$

$

Not available

30

Echo 90024204008

SCREW 4×8

$0.99

$

In Stock, Qty 8

0

31

Echo 10154010530

GUIDE PLATE HOLDER
(Superseded to Discontinued)

$

$

Not available

54

Echo 15013310530

LEAD
(Superseded to Discontinued)

$

$

Not available
