CS-351 VL - Echo Chainsaw Ignition, Starter, Air Cleaner Parts Diagram

Chainsaw

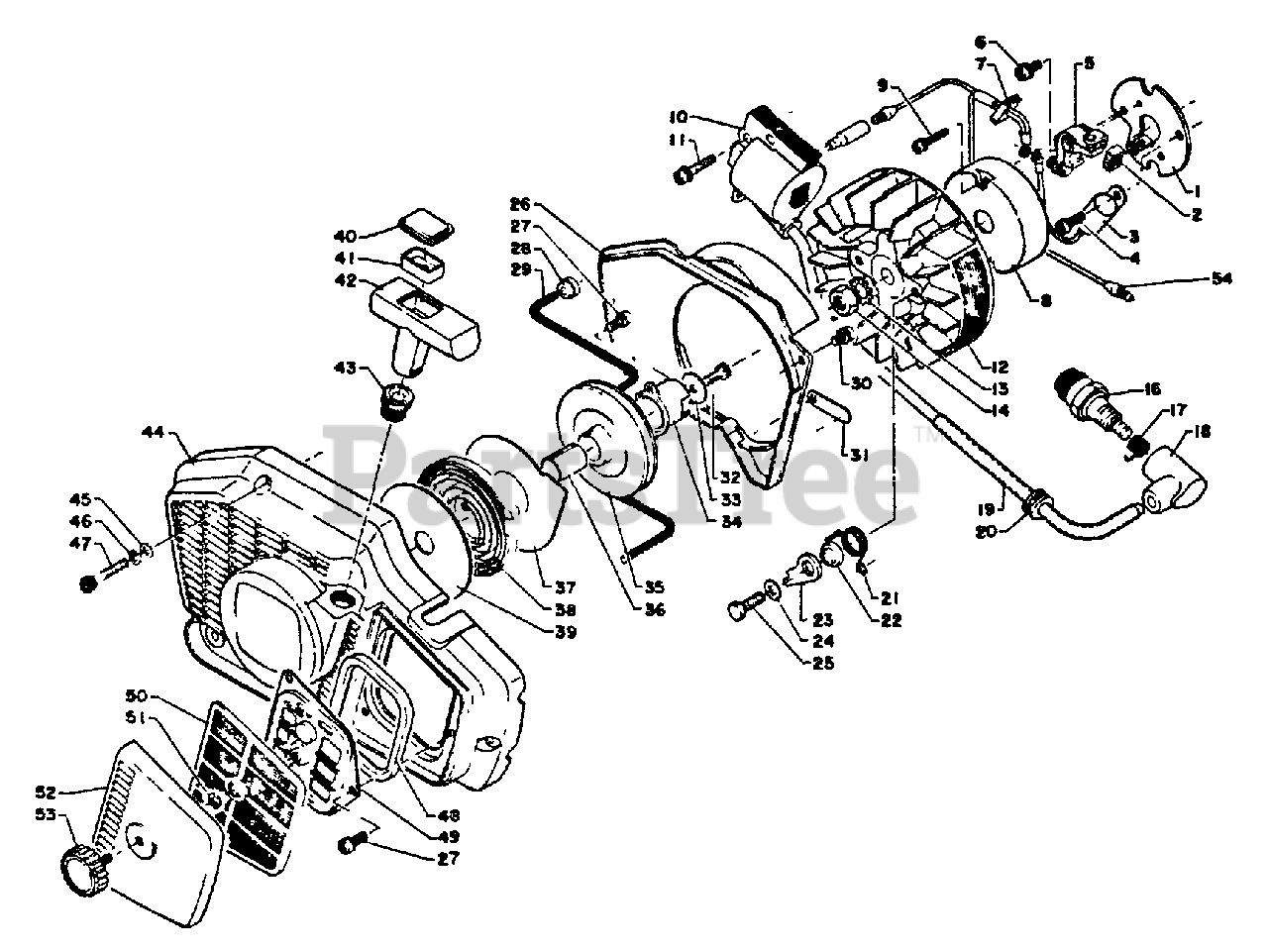

Ignition, Starter, Air Cleaner Parts Diagram

  • Title

1

Echo 15013203930

PLATE, STATOR
(Superseded to Discontinued)

$

$

Not available

2

Echo 15013403930

PAD
(Superseded to Discontinued)

$

$

Not available

3

Echo 15012703930

CONDENSER
(Superseded to Discontinued)

$

$

Not available

4

Echo 90024104010

SCREW - 4X10
(Superseded to 90024204010)

$0.99

$

In Stock, Qty 20+

0

5

Echo 15010103930

CONTACT POINT SET
(Superseded to Discontinued)

$

$

Not available

6

Echo 90024204010

SCREW - 4X10

$0.99

$

In Stock, Qty 20+

0

7

------------------

UNKNOWN

$

$

Not available

8

Echo 15411203430

COVER, BREAKER
(Superseded to 15611203930)

$

$

Not available

9

Echo 90022003025

SCREW - 3X25
(Superseded to Discontinued)

$

$

Not available

10

Echo 15012610531

COIL, IGNITION
(Superseded to Discontinued)

$

$

Not available

11

Echo 90024204020

SCREW - 4X20

$0.99

$

In Stock, Qty 20+

0

19

Echo 15011110530

TUBE
(Superseded to Discontinued)

$

$

Not available

12

Echo 15020003931

FLYWHEEL
(Superseded to Discontinued)

$

$

Not available

13

Echo 90061100008

LOCKWASHER - 8

$0.99

$

Usually ships in 2-4 days

0

14

Echo 90050000008

NUT - 8

$0.99

$

In Stock, Qty 20+

0

16

Echo 15901000330

SPARK PLUG -- BM-6A

$3.49

$

Usually ships in 2-4 days

0

16

Echo 15901010130

SPARK PLUG -- BMR-6A

Note: Anti-radio Interference Spark plug option

$3.49

$

In Stock, Qty 20+

0

17

Echo 15901103432

TERMINAL, SPARK PLUG CAP

$1.49

$

In Stock, Qty 20+

0

18

Echo 15901203433

CAP, SPARK PLUG

$6.99

$

In Stock, Qty 20+

0

20

Echo 15011200310

GROMMET

$0.99

$

Usually ships in 2-4 days

0

21

Echo 17723403931

SPRING, RETURN
(Superseded to Discontinued)

$

$

Not available

22

Echo 17724703932

SPACER

$1.99

$

Usually ships in 2-4 days

0

23

Echo 17721803930

PAWL, STARTER
(Superseded to Discontinued)

$

$

Not available

24

Echo 90060200005

WASHER - 5
(Superseded to 90060300005)

$0.99

$

In Stock, Qty 20+

0

25

Echo 90010005016

BOLT - 5X16

$0.99

$

Usually ships in 2-4 days

0

26

Echo 10153410531

SHIELD, FAN
(Superseded to Discontinued)

$

$

Not available

Echo 17720010530

STARTER ASSY
(Superseded to Discontinued)

$

$

Not available

27

Echo 90024104008

SCREW - 4X8

$0.99

$

In Stock, Qty 11

0

28

Echo 17724603930

RETAINER, ROPE

$0.99

$

In Stock, only 3 left!

0

29

Echo 17722603930

ROPE, STARTER - 3.5X850

Note: RePower BULK OPTION: 99944445000

$5.99

$

In Stock, Qty 10

0

32

Echo 90016204014

SCREW - 4X14

$1.49

$

In Stock, Qty 17

0

33

Echo 17721403930

WASHER

$0.99

$

In Stock, Qty 13

0

34

Echo 17724303930

CATCHER, PAWL
(Superseded to Discontinued)

$

$

Not available

35

Echo 17721503930

REEL, ROPE
(Superseded to Discontinued)

$

$

Not available

36

Echo 17721603930

BUSHING
(Superseded to Discontinued)

$

$

Not available

37

Echo 17724210530

PLATE, STARTER
(Superseded to Discontinued)

$

$

Not available

38

Echo 17722003930

SPRING, REWIND

$18.99

$

In Stock, Qty 7

0

39

Echo 17722103930

PLATE, STARTER
(Superseded to Discontinued)

$

$

Not available

40

Echo 17724402830

CAP

$0.99

$

Usually ships in 2-4 days

0

41

Echo 17722902830

RING, RETAINING

$1.99

$

Usually ships in 2-4 days

0

42

Echo 17722802830

GRIP, STARTER
(Superseded to 17722812330)

$25.99

$

In Stock, Qty 15

0

43

Echo 17722700230

GUIDE, ROPE
(Superseded to 17722705330)

$

$

Not available

44

Echo 10150710530

CASE, STARTER
(Superseded to Discontinued)

$

$

Not available

45

------------------

UNKNOWN

$

$

Not available

46

------------------

UNKNOWN

$

$

Not available

47

Echo 90016204025

SCREW - 4X25

$1.49

$

In Stock, Qty 7

0

48

Echo 13032010530

SEAL
(Superseded to Discontinued)

$

$

Not available

49

Echo 12900610531

PLATE
(Superseded to Discontinued)

$

$

Not available

50

Echo 13031010530

FILTER, AIR
(Superseded to Discontinued)

$

$

Not available

51

Echo 90070000003

RING, RETAINING - 3

$0.99

$

In Stock, Qty 6

0

52

Echo 13031310530

COVER, AIR FILTER
(Superseded to Discontinued)

$

$

Not available

53

Echo 13040603930

THUMBSCREW
(Superseded to 13040614330)

$

$

Not available

30

Echo 90024204008

SCREW - 4X8

$0.99

$

In Stock, Qty 10

0

31

Echo 10154010530

Guide plate holder
(Superseded to Discontinued)

$

$

Not available

54

Echo 15013310530

LEAD
(Superseded to Discontinued)

$

$

Not available
