CS-3510 - Echo Chainsaw (SN: C82015001001 - C82015999999) Carburetor Parts Diagram

Engine: 34.4 cc (2.1 cu in), 2-stroke Starting: i-30(TM) Ignition: Digital Oiling: Automatic clutch-driven Vibration: 3-point spring system Bar length: 14, 16 in Oil capacity: 230 ml (7.78 fl oz) Fuel capacity: 281 ml (9.5 fl oz) Dry weight: 8.2 lb (3.7 kg)

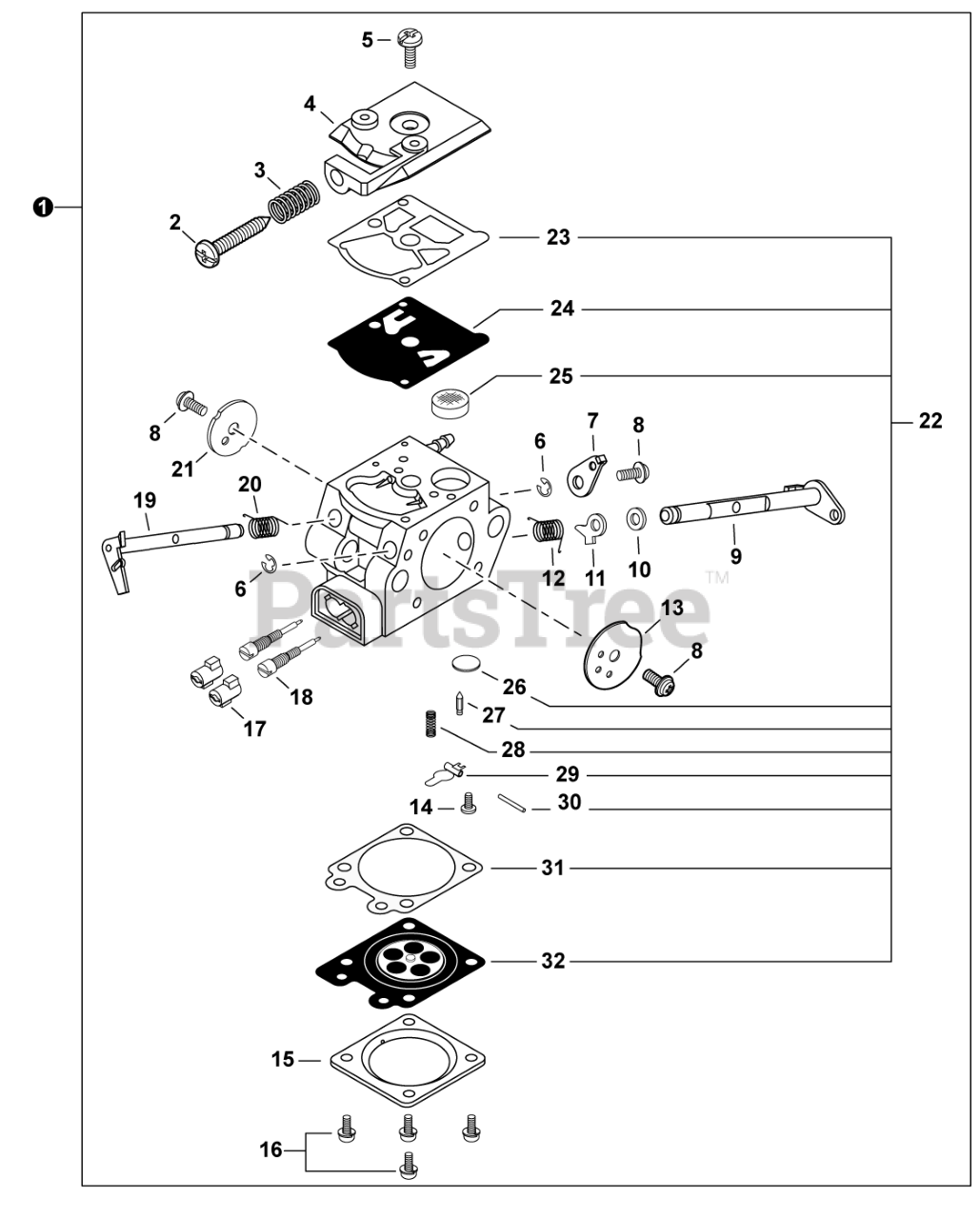

Carburetor Parts Diagram

  • Title

1

Echo A021005270

CARBURETOR

Note: Includes items 2-21 ONLY

$64.99

$

In Stock, only 1 left!

0

2

Echo 12313404260

SCREW, IDLE ADJUST

$2.49

$

In Stock, only 2 left!

0

3

Echo 12313304260

SPRING, IDLE ADJUST

$7.49

$

In Stock, only 2 left!

0

4

COVER, FUEL PUMP

$

$

Not available

5

SCREW

$

$

Not available

6

E-RING

$

$

Not available

7

LEVER, THROTTLE

$

$

Not available

8

SCREW

$

$

Not available

9

SHAFT, CHOKE

$

$

Not available

10

WASHER

$

$

Not available

11

LEVER, FAST IDLE

$

$

Not available

12

SPRING

$

$

Not available

13

VALVE, CHOKE

$

$

Not available

14

SCREW

$

$

Not available

15

COVER, METERING DIAPHRAGM

$

$

Not available

16

SCREW

$

$

Not available

17

Echo P003000010

CAP, LIMITER

$0.99

$

In Stock, Qty 20+

0

18

Echo P003004820

NEEDLE, MIXTURE

$4.99

$

In Stock, only 3 left!

0

19

SHAFT, THROTTLE

$

$

Not available

20

SPRING, THROTTLE RETURN

$

$

Not available

21

VALVE, THROTTLE

$

$

Not available

22

Echo P033000020

REPAIR KIT, CARBURETOR

Note: Includes items 23-32

$19.99

$

In Stock, Qty 20+

0

23

GASKET, FUEL PUMP

$

$

Not available

24

DIAPHRAGM, PUMP

$

$

Not available

25

SCREEN, FUEL INLET

$

$

Not available

26

PLUG, WELCH

$

$

Not available

27

VALVE, INLET NEEDLE

$

$

Not available

28

SPRING, METERING LEVER

$

$

Not available

29

LEVER, METERING

$

$

Not available

30

PIN, METERING LEVER

$

$

Not available

31

GASKET, METERING DIAPHRAGM

$

$

Not available

32

DIAPHRAGM, METERING

$

$

Not available
