CS-352 - Echo Chainsaw (SN: C19612001001 - C19612999999) Fuel System S/N C19612020801 - C19612999999 Parts Diagram

Chainsaw

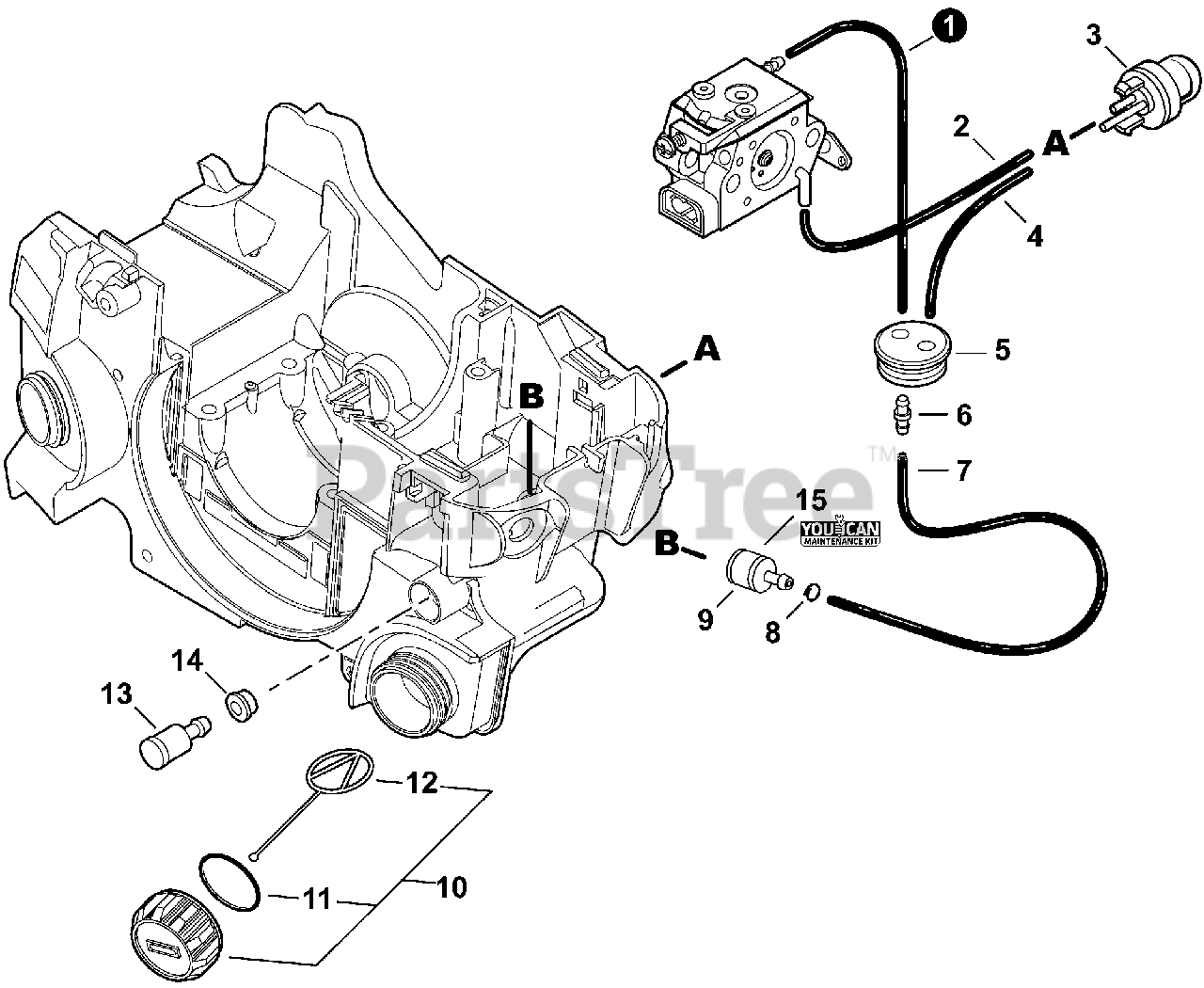

Fuel System S/N C19612020801 - C19612999999 Parts Diagram

  • Title

1

Echo V471003871

PIPE, FUEL 3×5×85 BLACK
(Superseded to V471003872)

$2.99

$

In Stock, Qty 16

0

2

Echo V471001280

PIPE 2.4×5×105 BLACK
(Superseded to V471001281)

$4.49

$

In Stock, Qty 14

0

3

Echo 12318139130

BULB, PURGE

$7.99

$

In Stock, Qty 20+

0

4

Echo V471001560

PIPE, FUEL 2.4×5×80 BLACK
(Superseded to V471001561)

$1.99

$

In Stock, Qty 16

0

5

Echo 13211544330

GROMMET, FUEL
(Superseded to 13211544331)

$1.99

$

In Stock, Qty 20+

0

6

Echo V186000510

CONNECTOR, PIPE

$1.99

$

In Stock, Qty 18

0

7

Echo V471003880

PIPE, FUEL 3×5×144 BLACK
(Superseded to V471003881)

$1.49

$

In Stock, Qty 18

0

8

Echo V490001240

CLIP 6

$0.99

$

In Stock, Qty 20+

0

9

Echo A369000470

FILTER, FUEL

$8.99

$

In Stock, Qty 20+

0

10

Echo P021037920

CAP ASSY, FUEL

Note: Includes Items 11-12

$11.99

$

In Stock, Qty 17

0

11

Echo V581000610

O-RING 22

$0.99

$

In Stock, Qty 7

0

12

Echo A365000050

CONNECTOR, CAP L= 60 MM

$2.49

$

In Stock, Qty 17

0

13

Echo A356000031

VENT ASSY

$8.99

$

In Stock, Qty 20+

0

14

Echo V137000000

GROMMET, FUEL
(Superseded to V137000001)

$1.49

$

In Stock, only 2 left!

0

15

Echo 90175Y

TUNE-UP KIT - YOUCAN™

$36.99

$

In Stock, only 4 left!

0
