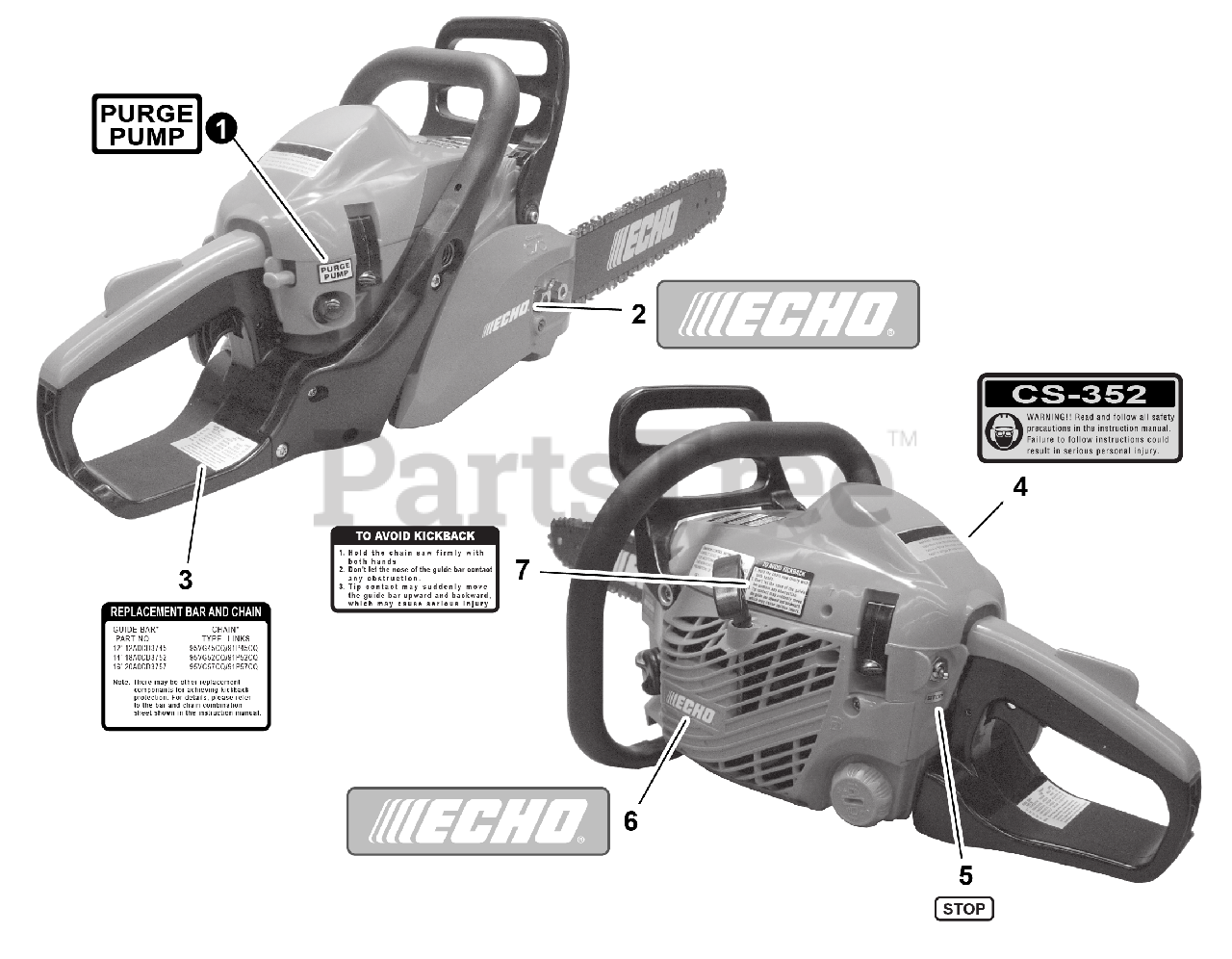

CS-352 - Echo Chainsaw (SN: C19612001001 - C19612999999) Labels S/N C19612001001 - C19612040096 Parts Diagram

Engine Type: Air-cooled, two-stroke, single cylinder. Displacement: 34 mL (2.07 cc).Bore: 38 mm (1.5 in). Stroke: 30 mm (1.18 in). Compression Ratio: 6.8:1.Max Power: 5.5 hp. Fuel Capacity: 250 mL (8.5 oz). Fuel Type: 89 octane unleaded gasoline.Gasoline/Oil Ratio: 50:1 (gasoline to two-stroke oil). Oil Capacity: 260 mL (8.8 oz). Automatic Oiler: Yes.Starter: Automatic rewind starter, centrifugal clutch. Idle Speed: 3,000 rpm. Clutch Engagement: 4,300 rpm. Wide-Open Throttle (WOT): 12,500 rpm. Chain Brakes: Band (automatic) and band-type automatic band brake.
