CS-352 - Echo Chainsaw (SN: C68115001001 - C68115999999) Handles, Throttle Control Parts Diagram

Engine Type: Air-cooled, two-stroke, single cylinder. Displacement: 34 mL (2.07 cc).Bore: 38 mm (1.5 in). Stroke: 30 mm (1.18 in). Compression Ratio: 6.8:1.Max Power: 5.5 hp. Fuel Capacity: 250 mL (8.5 oz). Fuel Type: 89 octane unleaded gasoline.Gasoline/Oil Ratio: 50:1 (gasoline to two-stroke oil). Oil Capacity: 260 mL (8.8 oz). Automatic Oiler: Yes.Starter: Automatic rewind starter, centrifugal clutch. Idle Speed: 3,000 rpm. Clutch Engagement: 4,300 rpm. Wide-Open Throttle (WOT): 12,500 rpm. Chain Brakes: Band (automatic) and band-type automatic band brake.

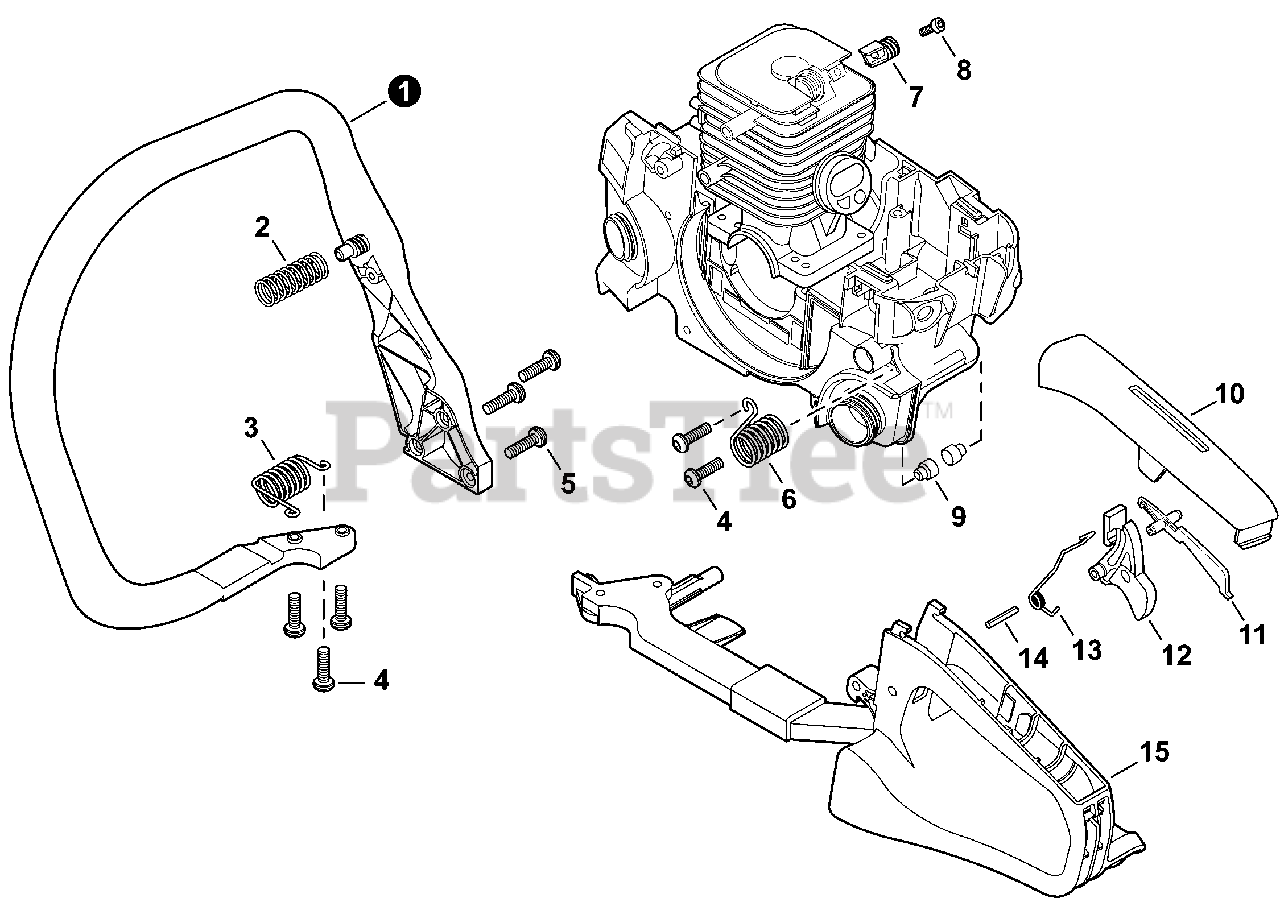

Handles, Throttle Control Parts Diagram

  • Title

1

Echo C400001030

HANDLE, FRONT
(Superseded to C400001670)

$66.99

$

In Stock, Qty 6

0

2

Echo V450001610

SPRING, COMPRESSION

$2.99

$

In Stock, Qty 9

0

3

Echo V450000710

SPRING, COMPRESSION

$5.99

$

In Stock, only 2 left!

0

4

Echo V805000000

BOLT, TORX 5×16

$0.99

$

In Stock, Qty 20+

0

5

Echo V805000010

BOLT, TORX 5×20

$1.49

$

In Stock, Qty 20+

0

6

Echo V450001620

SPRING, COMPRESSION

$4.99

$

In Stock, Qty 5

0

7

Echo V456000240

HOLDER, SPRING

$4.99

$

In Stock, only 2 left!

0

8

Echo V805000140

BOLT, TORX 5×12

$0.99

$

In Stock, Qty 20+

0

9

Echo V420001790

CUSHION

$8.99

$

In Stock, only 2 left!

0

10

Echo C411000041

COVER, HANDLE

$6.99

$

In Stock, Qty 11

0

11

Echo C460000072

LOCKOUT, THROTTLE

$4.49

$

In Stock, Qty 8

0

12

Echo C450000213

TRIGGER, THROTTLE

$6.49

$

In Stock, only 2 left!

0

13

Echo V452000260

SPRING, TORSION

$1.99

$

In Stock, Qty 14

0

14

Echo 90034540025

PIN, SPRING 4×25 SUS

$1.99

$

In Stock, Qty 10

0

15

Echo C410000990

HANDLE, REAR

$61.99

$

In Stock, only 2 left!

0
