CS-352 - Echo Chainsaw (SN: C68115001001 - C68115999999) Ignition Parts Diagram

Engine Type: Air-cooled, two-stroke, single cylinder. Displacement: 34 mL (2.07 cc).Bore: 38 mm (1.5 in). Stroke: 30 mm (1.18 in). Compression Ratio: 6.8:1.Max Power: 5.5 hp. Fuel Capacity: 250 mL (8.5 oz). Fuel Type: 89 octane unleaded gasoline.Gasoline/Oil Ratio: 50:1 (gasoline to two-stroke oil). Oil Capacity: 260 mL (8.8 oz). Automatic Oiler: Yes.Starter: Automatic rewind starter, centrifugal clutch. Idle Speed: 3,000 rpm. Clutch Engagement: 4,300 rpm. Wide-Open Throttle (WOT): 12,500 rpm. Chain Brakes: Band (automatic) and band-type automatic band brake.

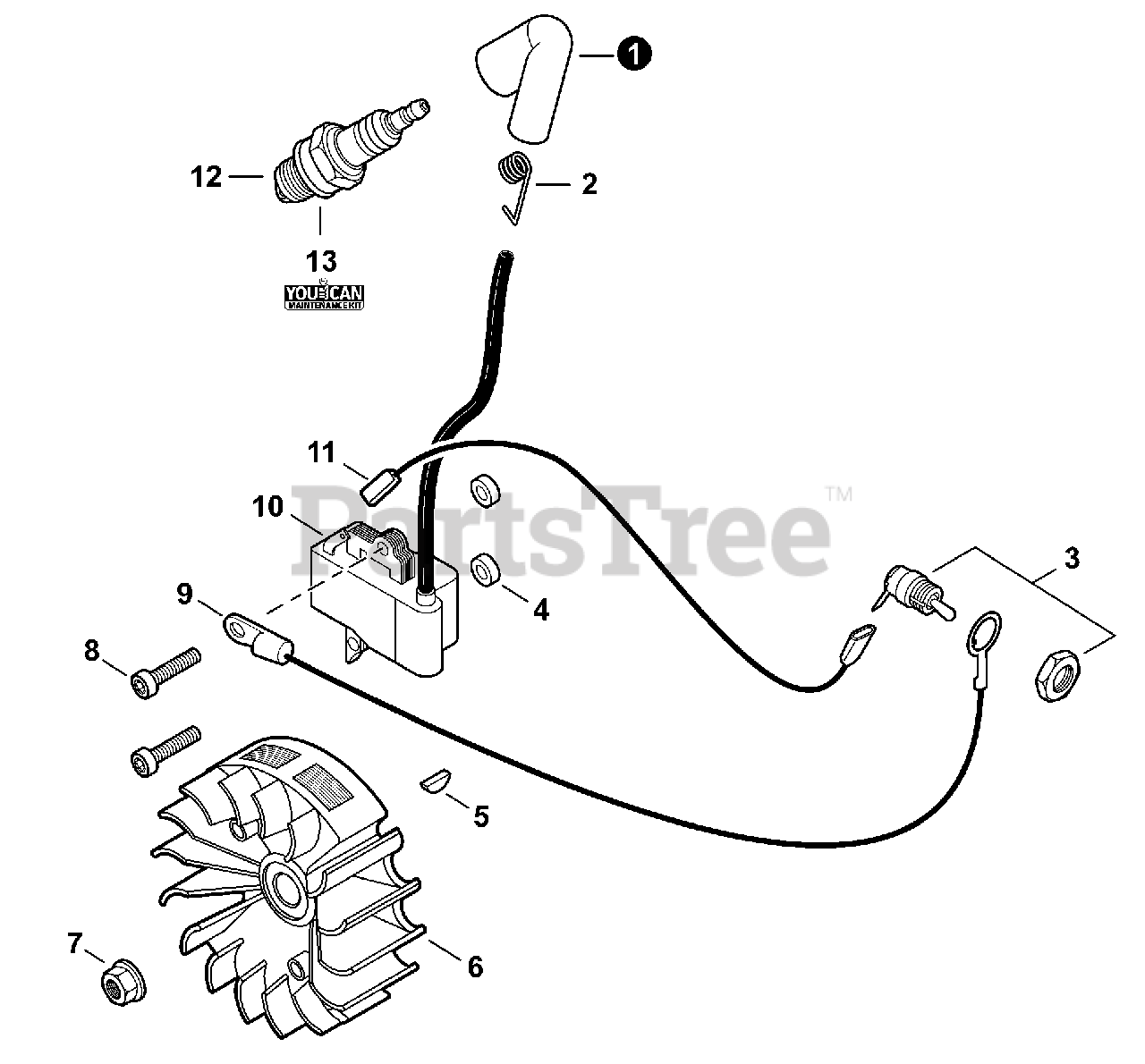

Ignition Parts Diagram

  • Title

1

Echo A427000020

CAP, SPARK PLUG

$7.49

$

Usually ships in 2-4 days

0

2

Echo A426000020

TERMINAL, SPARK PLUG

$1.49

$

In Stock, only 1 left!

0

3

Echo A440001190

SWITCH, ON-OFF

$14.99

$

In Stock, Qty 6

0

4

Echo 15011716430

WASHER 5.2×12×3

$3.49

$

In Stock, Qty 20+

0

5

Echo 10014212330

KEY, WOODRUFF

$1.99

$

In Stock, Qty 20+

0

6

Echo A409000350

FLYWHEEL

$116.99

$

Usually ships in 2-4 days

0

7

Echo 90051500008

NUT, FLANGE M8

$1.99

$

In Stock, only 4 left!

0

8

Echo V805000210

BOLT, TORX 5×20

$1.99

$

In Stock, Qty 20+

0

9

Echo V485001070

LEAD - GROUND L= 255

$4.49

$

Usually ships in 2-4 days

0

10

Echo A411001180

COIL, IGNITION

$118.99

$

Usually ships in 2-4 days

0

11

Echo V485001080

LEAD - IGNITION

$4.49

$

In Stock, only 2 left!

0

12

Echo A425000000

SPARK PLUG - BPMR8Y

Note: Included in Tune-Up Kit

$3.99

$

In Stock, Qty 20+

0

13

Echo 90175Y

TUNE-UP KIT - YOUCANT

Note: See Maintenance Kits

$39.99

$

In Stock, only 2 left!

0
