CS-352 - Echo Chainsaw (SN: C70415001001 - C70415999999) Fuel System Parts Diagram

Engine Type: Air-cooled, two-stroke, single cylinder. Displacement: 34 mL (2.07 cc).Bore: 38 mm (1.5 in). Stroke: 30 mm (1.18 in). Compression Ratio: 6.8:1.Max Power: 5.5 hp. Fuel Capacity: 250 mL (8.5 oz). Fuel Type: 89 octane unleaded gasoline.Gasoline/Oil Ratio: 50:1 (gasoline to two-stroke oil). Oil Capacity: 260 mL (8.8 oz). Automatic Oiler: Yes.Starter: Automatic rewind starter, centrifugal clutch. Idle Speed: 3,000 rpm. Clutch Engagement: 4,300 rpm. Wide-Open Throttle (WOT): 12,500 rpm. Chain Brakes: Band (automatic) and band-type automatic band brake.

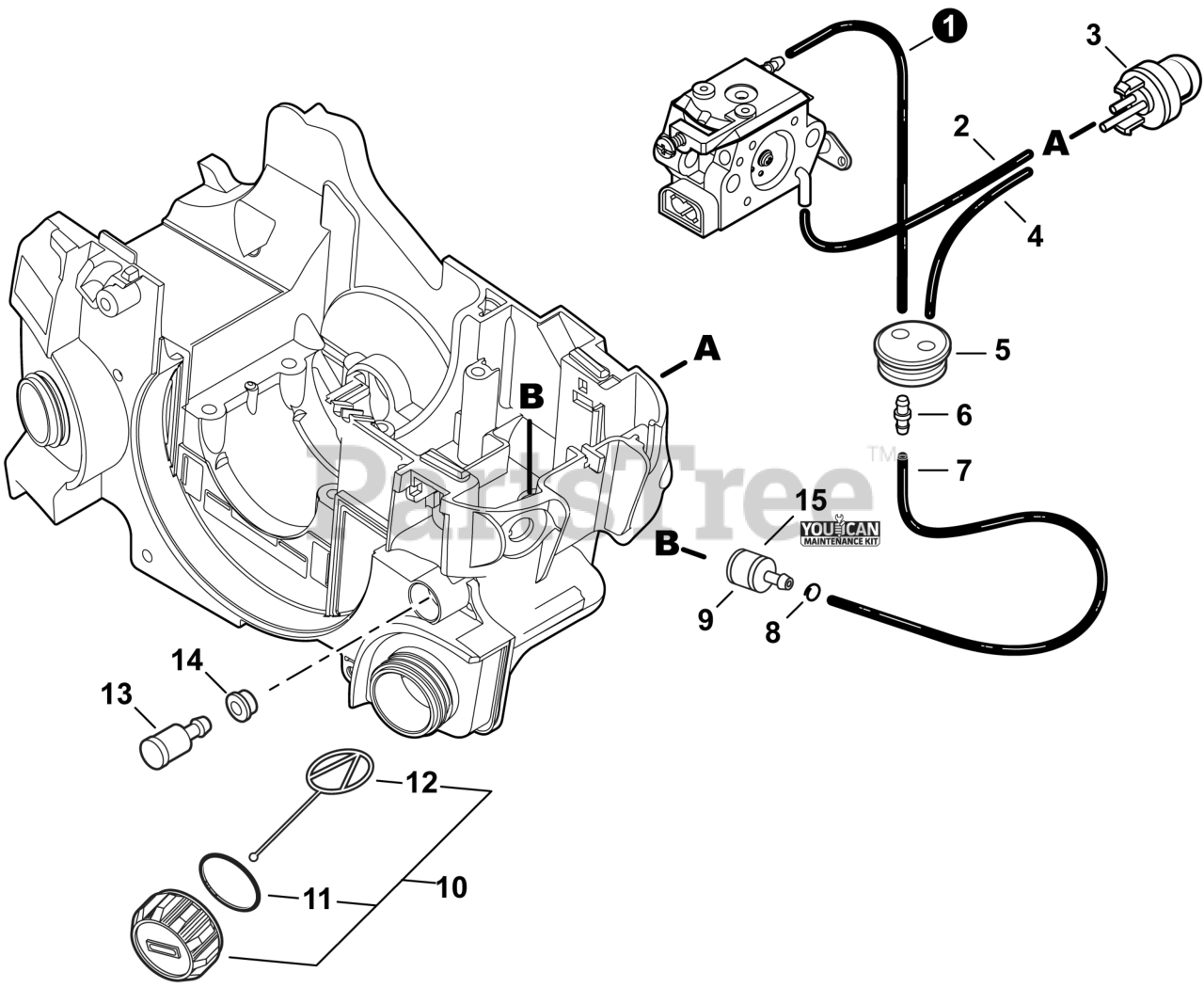

Fuel System Parts Diagram

  • Title

1

Echo V471003872

PIPE, FUEL 3×5×85 BLACK

$2.99

$

In Stock, Qty 6

0

2

Echo V471001281

PIPE 2.4×5×105 BLACK

$4.99

$

In Stock, only 4 left!

0

3

Echo 12318139130

BULB, PURGE

$8.49

$

In Stock, Qty 20+

0

4

Echo V471001561

PIPE, FUEL 2.4×5×80 BLACK

$1.99

$

In Stock, Qty 20+

0

5

Echo 13211544331

GROMMET, FUEL

$2.49

$

In Stock, Qty 20+

0

6

Echo V186000510

CONNECTOR, PIPE

$1.99

$

In Stock, Qty 20+

0

7

Echo V471003881

PIPE, FUEL 3×5×144 BLACK

$1.49

$

In Stock, Qty 8

0

8

Echo V490001240

CLIP Ø6

$0.99

$

In Stock, Qty 20+

0

9

Echo A369000470

FILTER, FUEL

$9.99

$

In Stock, Qty 20+

0

10

Echo P021004562

CAP ASSY, FUEL

Note: Includes Items 11-12

$12.99

$

Usually ships in 2-4 days

0

11

Echo V581000610

O-RING 22

$1.49

$

In Stock, only 4 left!

0

12

Echo A365000050

FUEL CAP CONNECTOR (L=60MM)

$2.49

$

In Stock, Qty 20+

0

13

Echo A356000031

VENT ASSY

$9.49

$

In Stock, Qty 20+

0

14

Echo V137000001

GROMMET, FUEL

$1.99

$

In Stock, Qty 20+

0

15

Echo 90175Y

TUNE-UP KIT - YOUCANT

$39.99

$

In Stock, only 1 left!

0
