CS-353 ES - Echo Chainsaw (SN: C31926001001 - C31926999999) Engine Parts Diagram

Chainsaw

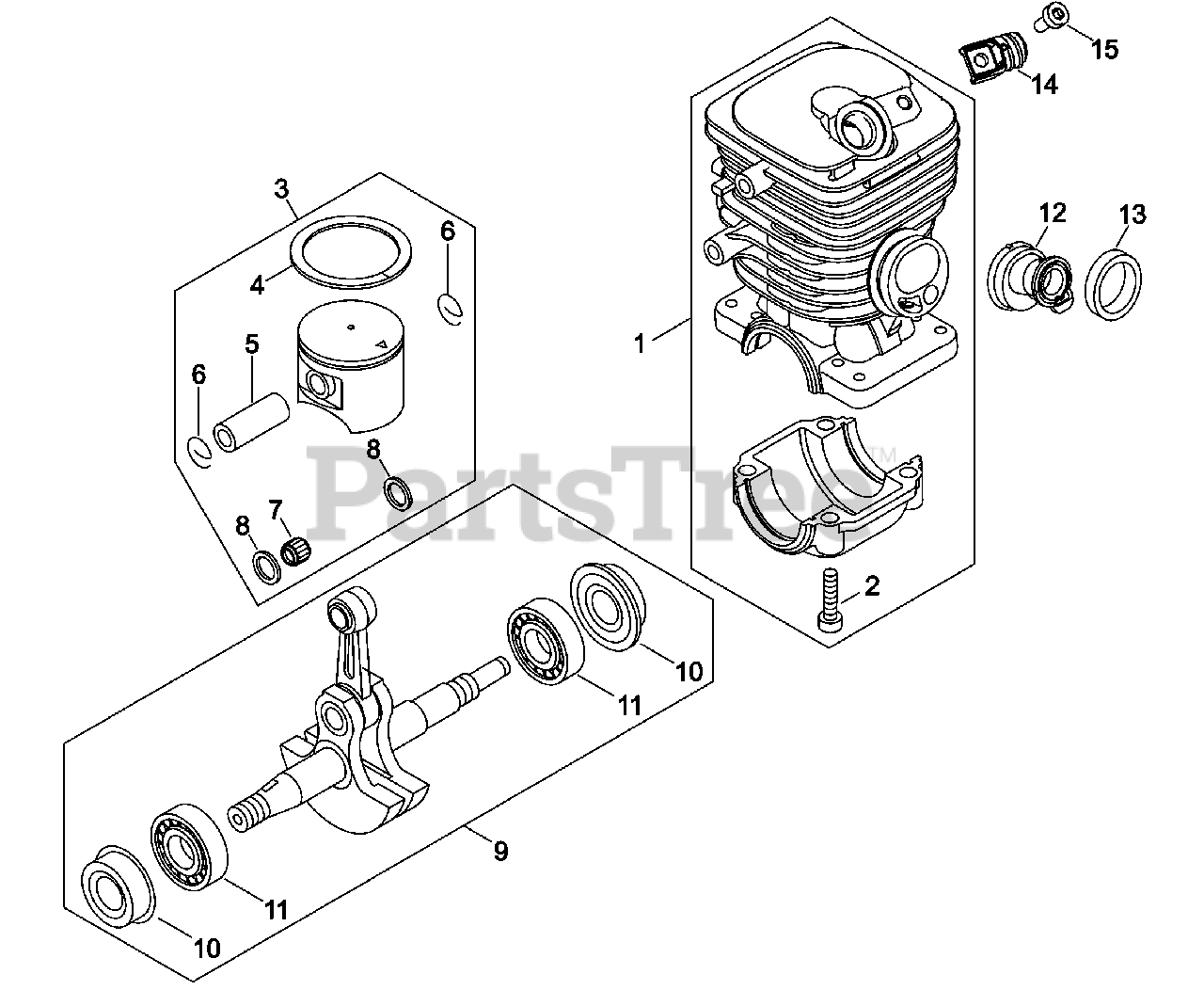

Engine Parts Diagram

  • Title

1

Echo P021043400

CRANKCASE KIT

Note: Includes item 2

$162.99

$

Usually ships in 2-4 days

0

2

Echo V805000220

BOLT, TORX 5×25

$1.99

$

Usually ships in 2-4 days

0

3

Echo P021044190

PISTON KIT

Note: Includes items 4-8

$69.99

$

Usually ships in 2-4 days

0

4

Echo A101000110

RING, PISTON

$6.99

$

In Stock, only 1 left!

0

5

Echo 10001315330

PIN, PISTON 5.5×8×29

$7.49

$

Usually ships in 2-4 days

0

6

Echo 10001504630

RING, SNAP

$0.99

$

In Stock, Qty 20+

0

7

Echo V553000040

BEARING, NEEDLE 8

$10.99

$

Usually ships in 2-4 days

0

8

Echo 10001460930

WASHER, THRUST

$5.49

$

Usually ships in 2-4 days

0

9

Echo P021044180

CRANKSHAFT ASSY

Note: Includes items 10-11

$287.99

$

Usually ships in 2-4 days

0

10

Echo V505000011

SEAL, OIL 12

$8.49

$

In Stock, Qty 8

0

11

Echo 9403536201

BEARING, BALL 6201

$8.99

$

In Stock, Qty 17

0

12

Echo A202000071

BELLOWS, INTAKE

$22.99

$

Usually ships in 2-4 days

0

13

Echo A206000000

RETAINER, BELLOWS

$2.99

$

Usually ships in 2-4 days

0

14

Echo V456000240

HOLDER, SPRING

$4.49

$

In Stock, only 2 left!

0

15

Echo V805000140

BOLT, TORX 5×12

$0.99

$

In Stock, Qty 20+

0
