CS-353 ES - Echo Chainsaw (SN: C31926001001 - C31926999999) Engine Cover, Fuel, Oil Parts Diagram

Engine displacement: 34.0 cc (2-stroke) Starting system: ES Start (30 % less effort) Oiling system: Automatic clutch-driven (oil only when chain moves) Vibration-reduction system: Yes Bar lengths: 35 cm (14 in.) or 40 cm (16 in.) Oil capacity: 0.26 L (8.8 fl oz) Fuel capacity: 0.25 L (8.5 fl oz) Dry weight: 4.0 kg (8.8 lb) Handle material: Plastic Features: tool-less air filter, side-access chain tensioner, lightweight construction. Professional engine, top-access air filter, Gear type: plastic, Handle: 0.25 in (6.35 mm).

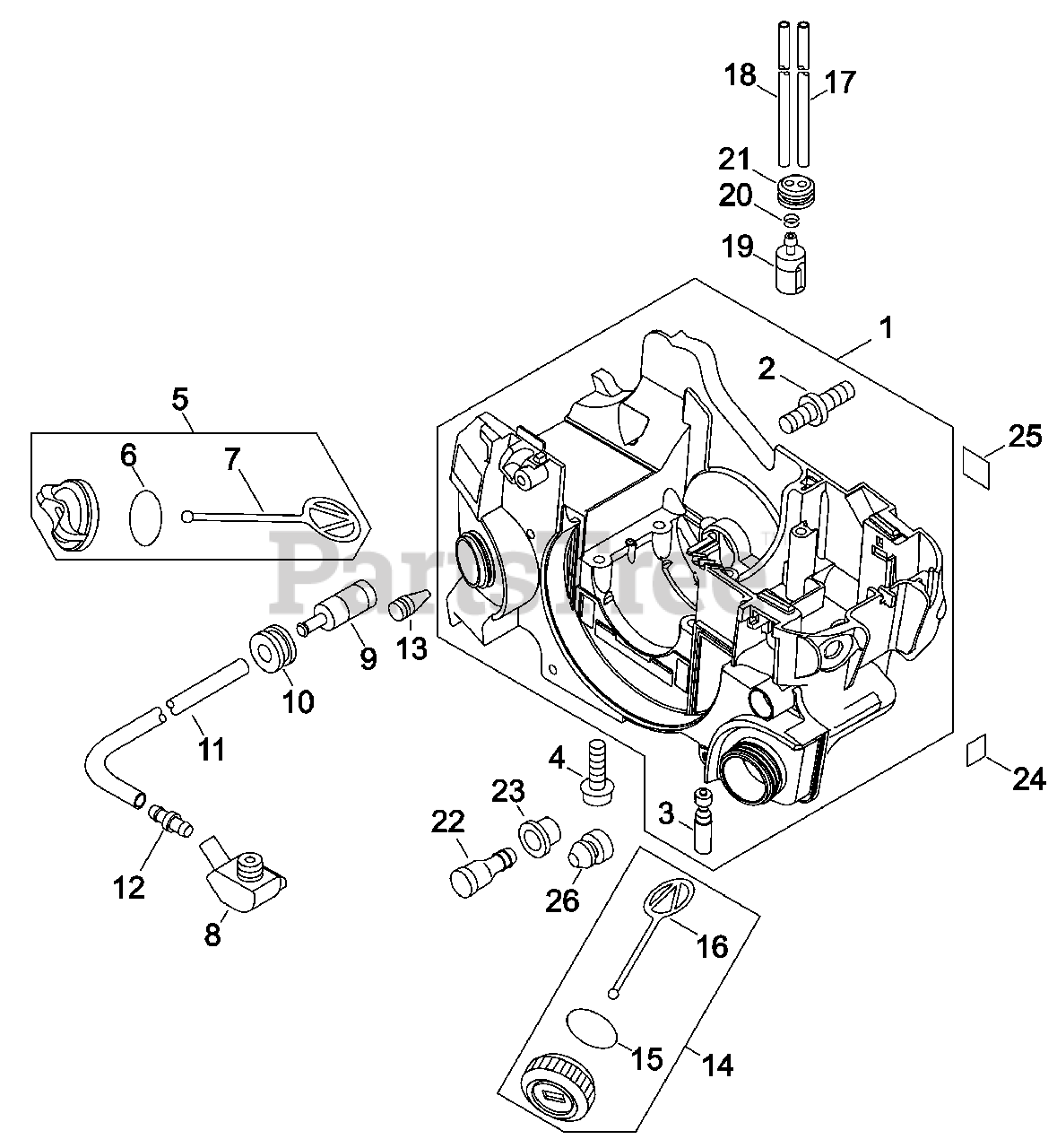

Engine Cover, Fuel, Oil Parts Diagram

  • Title

1

Echo P021036937

HOUSING ASSY, ENGINE
(Superseded to P021049020)

Note: Includes items 2-3

$111.99

$

Usually ships in 2-4 days

0

2

Echo V225000370

BOLT, STUD 8
(Superseded to V225000031)

$3.49

$

In Stock, Qty 20+

0

3

Echo C022000072

AUTO-OILER ASSY
(Superseded to C022000190)

$

$

Not available

4

Echo V805000180

BOLT, TORX 5×30

$1.99

$

In Stock, Qty 20+

0

5

Echo P021-005581

CAP ASSY - BLACK
(Superseded to P021005581)

Note: Includes items 6-7

$8.49

$

In Stock, Qty 20+

0

6

Echo 90072000018

O-RING 18

$2.49

$

In Stock, Qty 20+

0

7

Echo A365-000050

CONNECTOR, CAP L= 60 MM
(Superseded to A365000050)

$2.49

$

In Stock, Qty 20+

0

8

Echo V470000810

GROMMET, OIL

$3.99

$

In Stock, Qty 13

0

9

Echo 43620502832

FILTER, OIL

$8.99

$

Usually ships in 2-4 days

0

10

Echo 13211501461

GROMMET
(Superseded to 13211501462)

$1.99

$

In Stock, Qty 20+

0

11

Echo 13011005260

PIPE 3×6×185 MM BLACK
(Superseded to 13011005261)

$3.49

$

In Stock, Qty 19

0

12

Echo V186000510

CONNECTOR, PIPE

$1.99

$

In Stock, Qty 20+

0

13

Echo 436114-13930

VENT ASSY
(Superseded to 43611413930)

$7.49

$

In Stock, Qty 20+

0

14

Echo P021037920

CAP ASSY, FUEL

Note: Includes items 15-16

$12.99

$

In Stock, Qty 5

0

15

Echo V581000610

O-RING 22

$1.49

$

In Stock, only 4 left!

0

16

Echo A365-000050

CONNECTOR, CAP L= 60 MM
(Superseded to A365000050)

$2.49

$

In Stock, Qty 20+

0

17

Echo V471001560

PIPE, FUEL 2.4×5×80 BLACK
(Superseded to V471001561)

$1.99

$

In Stock, Qty 20+

0

18

Echo V471002170

PIPE, FUEL 3×5×230 BLACK

$5.49

$

In Stock, Qty 5

0

19

Echo 13120514931

FILTER, FUEL
(Superseded to A369000470)

$9.99

$

In Stock, Qty 20+

0

20

Echo V490001240

CLIP Ø6

$0.99

$

In Stock, Qty 20+

0

21

Echo 132115-44330

GROMMET, FUEL
(Superseded to 13211544331)

$2.49

$

In Stock, Qty 20+

0

22

Echo A356000031

VENT ASSY

$9.49

$

In Stock, Qty 20+

0

23

Echo V137000000

GROMMET, FUEL
(Superseded to V137000001)

$1.99

$

In Stock, Qty 20+

0

24

Echo 89015739131

LABEL, ON-OFF

$2.99

$

Usually ships in 2-4 days

0

25

Echo X524001901

LABEL

$2.99

$

Usually ships in 2-4 days

0

26

Echo V420001790

CUSHION

$8.99

$

In Stock, only 2 left!

0
