CS-353 ES - Echo Chainsaw (SN: C31926001001 - C31926999999) Handles Parts Diagram

Engine displacement: 34.0 cc (2-stroke) Starting system: ES Start (30 % less effort) Oiling system: Automatic clutch-driven (oil only when chain moves) Vibration-reduction system: Yes Bar lengths: 35 cm (14 in.) or 40 cm (16 in.) Oil capacity: 0.26 L (8.8 fl oz) Fuel capacity: 0.25 L (8.5 fl oz) Dry weight: 4.0 kg (8.8 lb) Handle material: Plastic Features: tool-less air filter, side-access chain tensioner, lightweight construction. Professional engine, top-access air filter, Gear type: plastic, Handle: 0.25 in (6.35 mm).

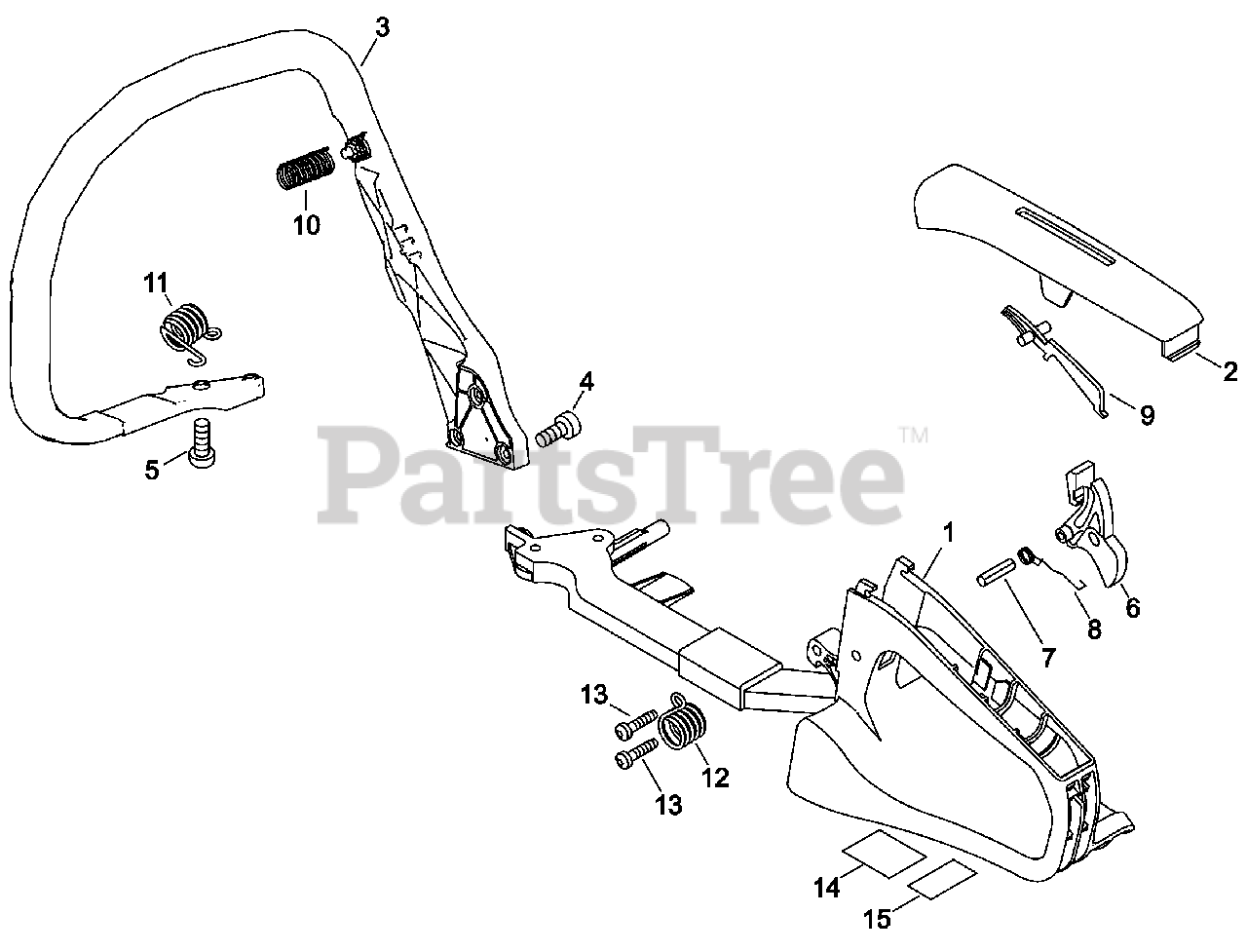

Handles Parts Diagram

  • Title

1

Echo C410000450

HANDLE, REAR
(Superseded to C410000990)

$61.99

$

In Stock, only 2 left!

0

2

Echo C411000041

COVER, HANDLE

$6.99

$

In Stock, Qty 13

0

3

Echo C400001030

HANDLE, FRONT
(Superseded to C400001670)

$66.99

$

In Stock, Qty 6

0

4

Echo V805000010

BOLT, TORX 5×20

$1.49

$

In Stock, Qty 20+

0

5

Echo V805000000

BOLT, TORX 5×16

$0.99

$

In Stock, Qty 20+

0

6

Echo C450000213

TRIGGER, THROTTLE

$6.49

$

In Stock, only 3 left!

0

7

Echo 90034540025

PIN, SPRING 4×25 SUS

$1.99

$

In Stock, Qty 11

0

8

Echo V452000260

SPRING, TORSION

$1.99

$

In Stock, Qty 17

0

9

Echo C460000072

LOCKOUT, THROTTLE

$4.49

$

In Stock, Qty 11

0

10

Echo V450001610

SPRING, COMPRESSION

$2.99

$

In Stock, Qty 12

0

11

Echo V450000710

SPRING, COMPRESSION

$5.99

$

In Stock, only 2 left!

0

12

Echo V450001620

SPRING, COMPRESSION

$4.99

$

In Stock, Qty 5

0

13

Echo V805000000

BOLT, TORX 5×16

$0.99

$

In Stock, Qty 20+

0

14

Echo 89034539231

LABEL, CAUTION

$3.49

$

Usually ships in 2-4 days

0

15

Echo X505006940

LABEL, CAUTION

$1.99

$

Usually ships in 2-4 days

0
