CS-353 ES - Echo Chainsaw (SN: C31926001001 - C31926999999) Ignition Parts Diagram

Engine displacement: 34.0 cc (2-stroke) Starting system: ES Start (30 % less effort) Oiling system: Automatic clutch-driven (oil only when chain moves) Vibration-reduction system: Yes Bar lengths: 35 cm (14 in.) or 40 cm (16 in.) Oil capacity: 0.26 L (8.8 fl oz) Fuel capacity: 0.25 L (8.5 fl oz) Dry weight: 4.0 kg (8.8 lb) Handle material: Plastic Features: tool-less air filter, side-access chain tensioner, lightweight construction. Professional engine, top-access air filter, Gear type: plastic, Handle: 0.25 in (6.35 mm).

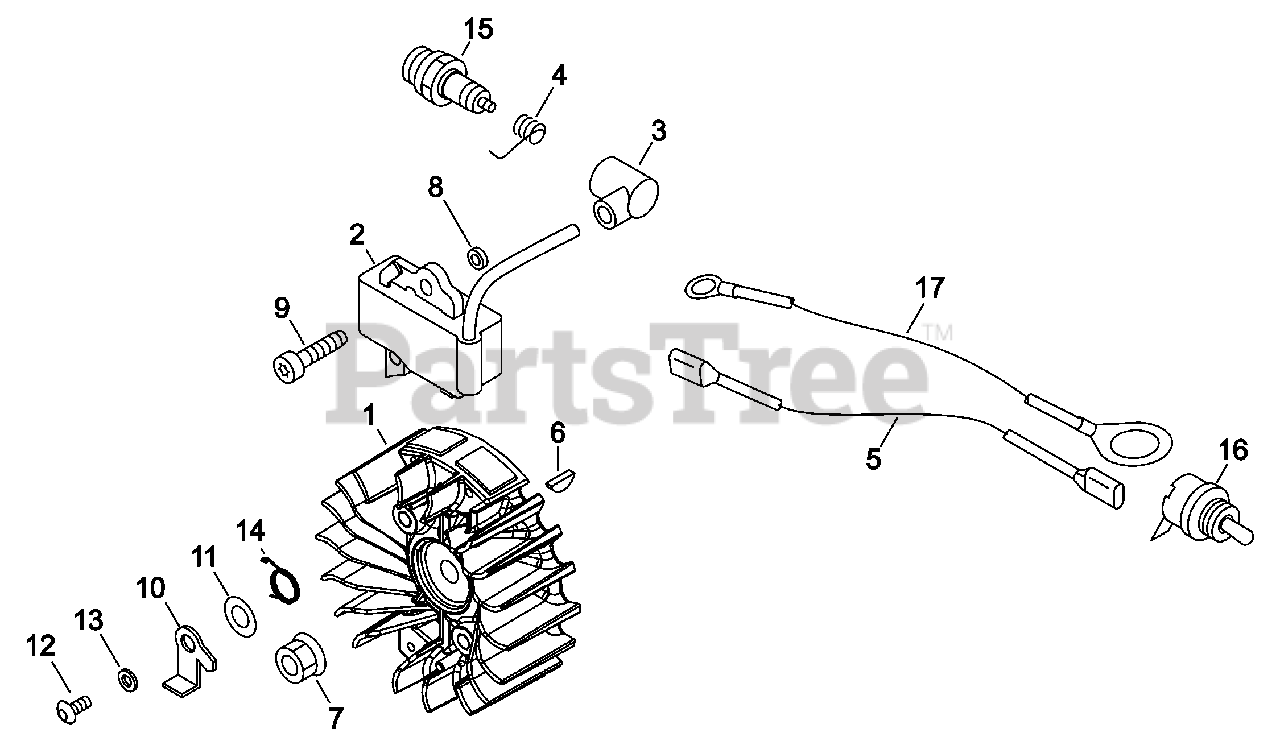

Ignition Parts Diagram

  • Title

1

Echo A409000350

FLYWHEEL

$116.99

$

Usually ships in 2-4 days

0

2

Echo A411001180

COIL, IGNITION

$118.99

$

Usually ships in 2-4 days

0

3

Echo A427000020

CAP, SPARK PLUG

$7.49

$

Usually ships in 2-4 days

0

4

Echo A426000020

TERMINAL, SPARK PLUG

$1.49

$

In Stock, only 1 left!

0

5

Echo V485001080

LEAD - IGNITION

$4.49

$

In Stock, only 2 left!

0

6

Echo 10014212330

KEY, WOODRUFF

$1.99

$

In Stock, Qty 20+

0

7

Echo 90051500008

NUT, FLANGE M8

$1.99

$

In Stock, only 4 left!

0

8

Echo 15011716430

WASHER 5.2×12×3

$3.49

$

In Stock, Qty 20+

0

9

Echo V805000210

BOLT, TORX 5×20

$1.99

$

In Stock, Qty 20+

0

10

Echo A514000020

PAWL

$3.99

$

In Stock, Qty 15

0

11

Echo 900603-00005

WASHER 5.5×12×0.8

$0.99

$

In Stock, Qty 20+

0

12

Echo V203000080

BOLT 5×14

$2.99

$

Usually ships in 2-4 days

0

13

Echo 17724704630

SPACER 5.2×8×2.1

$2.49

$

In Stock, only 2 left!

0

14

Echo 17723435430

SPRING, TORSION

$2.99

$

In Stock, only 2 left!

0

15

Echo 15901019830

SPARK PLUG - BPM8Y

$3.99

$

In Stock, Qty 20+

0

16

Echo A440001190

SWITCH, ON-OFF

$14.99

$

In Stock, Qty 5

0

17

Echo V485001070

LEAD - GROUND L= 255

$4.49

$

Usually ships in 2-4 days

0
