CS-353 ES - Echo Chainsaw (SN: C31926001001 - C31926999999) Starter Parts Diagram

Engine displacement: 34.0 cc (2-stroke) Starting system: ES Start (30 % less effort) Oiling system: Automatic clutch-driven (oil only when chain moves) Vibration-reduction system: Yes Bar lengths: 35 cm (14 in.) or 40 cm (16 in.) Oil capacity: 0.26 L (8.8 fl oz) Fuel capacity: 0.25 L (8.5 fl oz) Dry weight: 4.0 kg (8.8 lb) Handle material: Plastic Features: tool-less air filter, side-access chain tensioner, lightweight construction. Professional engine, top-access air filter, Gear type: plastic, Handle: 0.25 in (6.35 mm).

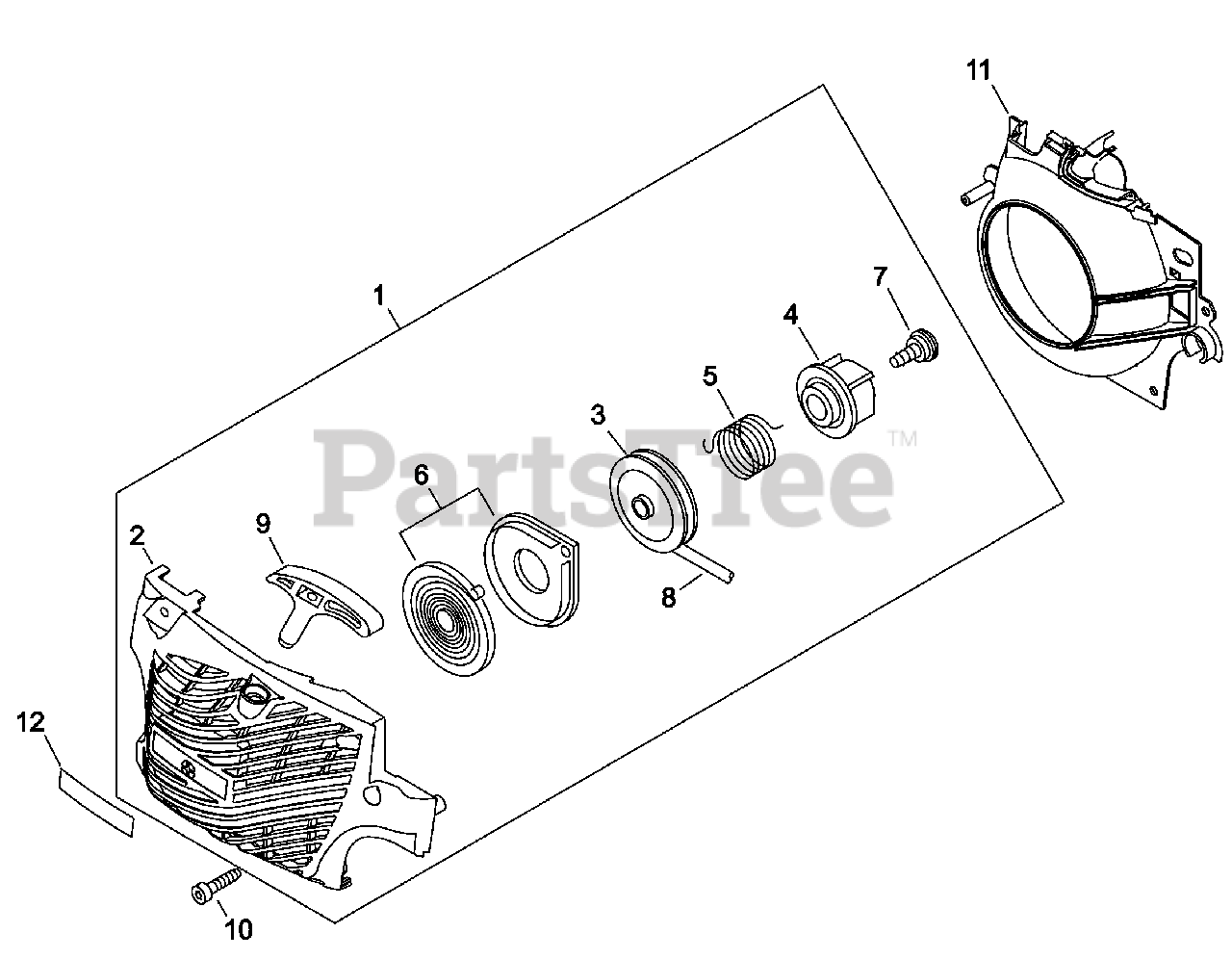

Starter Parts Diagram

  • Title

1

Echo A051001302

STARTER ASSY, RECOIL
(Superseded to A051002741)

Note: Includes items 2-9

$76.99

$

In Stock, only 2 left!

0

2

Echo P022036980

CASE, STARTER

$28.99

$

Usually ships in 2-4 days

0

3

Echo A506000460

REEL, ROPE

$17.99

$

In Stock, only 4 left!

0

4

Echo A507000110

PAWL CATCHER

$9.49

$

In Stock, only 2 left!

0

5

Echo V452001320

SPRING, TORSION

$10.99

$

In Stock, Qty 7

0

6

Echo P022001330

SPRING KIT, RECOIL

$18.99

$

In Stock, only 1 left!

0

7

Echo 17723661830

SCREW
(Superseded to V253000310)

$1.99

$

In Stock, Qty 20+

0

8

Echo P022008440

ROPE, STARTER 3.5×900

$5.99

$

In Stock, Qty 6

0

9

Echo P022005891

GRIP, STARTER

$7.49

$

In Stock, Qty 6

0

10

Echo V805000010

BOLT, TORX 5×20

$1.49

$

In Stock, Qty 20+

0

11

Echo A172000830

COVER, FAN
(Superseded to A172002180)

$10.99

$

Usually ships in 2-4 days

0

12

Echo X502000670

LABEL, ECHO

$4.99

$

Usually ships in 2-4 days

0
