CS-355 T - Echo Chainsaw (SN: C67415001001 - C67415999999) Chain Brake Parts Diagram

Chainsaw

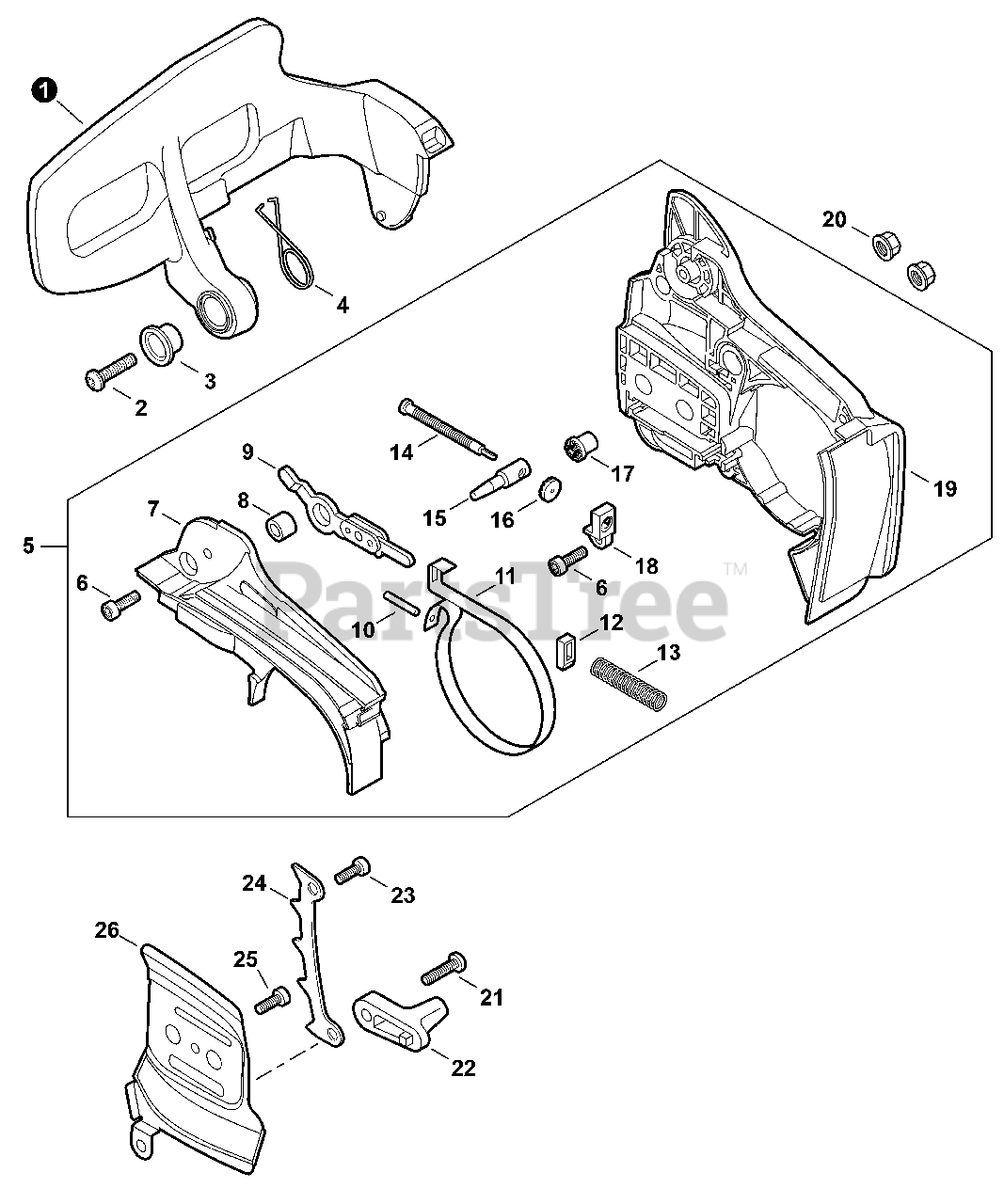

Chain Brake Parts Diagram

  • Title

1

Echo C320000501

LEVER, BRAKE

$34.99

$

In Stock, only 2 left!

0

2

Echo V805000240

BOLT, TORX 5×12

$0.99

$

In Stock, Qty 20+

0

3

Echo V356000430

COLLAR 10

$2.49

$

In Stock, only 2 left!

0

4

Echo V452001380

SPRING, TORSION

$2.49

$

In Stock, only 2 left!

0

5

Echo P021048810

BRAKE ASSY, CHAIN
(Superseded to P021048811)

Note: Includes Items 6-19

$103.99

$

In Stock, Qty 11

0

6

Echo V804000000

BOLT, TORX 4×12

$0.99

$

In Stock, Qty 10

0

7

Echo C345000520

COVER, BRAKE

$9.49

$

In Stock, only 2 left!

0

8

Echo 43311635430

SPACER 8×12×9

$5.99

$

In Stock, only 2 left!

0

9

Echo C334000290

CONNECTOR, BRAKE

$13.99

$

Usually ships in 2-4 days

0

10

Echo 9305030098

PIN, SPRING 3×9.8

$0.99

$

In Stock, Qty 20+

0

11

Echo C328000310

BAND, BRAKE

$12.99

$

In Stock, only 2 left!

0

12

Echo V376000450

GUIDE

$0.99

$

In Stock, Qty 8

0

13

Echo V450000070

SPRING, COMPRESSION

$2.99

$

In Stock, Qty 8

0

14

Echo V203000041

BOLT 5

$6.49

$

In Stock, Qty 20+

0

15

Echo C309000030

TENSIONER, CHAIN

$4.99

$

In Stock, Qty 20+

0

16

Echo V651000011

GEAR, BEVEL

$8.99

$

In Stock, Qty 20+

0

17

Echo V651000001

GEAR, BEVEL

$8.99

$

In Stock, Qty 6

0

18

Echo V355000140

COLLAR 8

$1.49

$

In Stock, Qty 15

0

19

Echo C300000952

GUARD, SPROCKET
(Superseded to C300000953)

$31.99

$

In Stock, only 2 left!

0

20

Echo V265000200

NUT 8

$1.99

$

In Stock, Qty 20+

0

21

Echo V805000010

BOLT, TORX 5×20

$1.49

$

In Stock, Qty 20+

0

22

Echo 43302635430

CHAIN CATCHER

$2.49

$

In Stock, Qty 20+

0

23

Echo V805000010

BOLT, TORX 5×20

$1.49

$

In Stock, Qty 20+

0

24

Echo C304000000

SPIKE, BUMPER

$4.99

$

In Stock, only 3 left!

0

25

Echo V804000000

BOLT, TORX 4×12

$0.99

$

In Stock, Qty 10

0

26

Echo C305000430

PLATE, GUIDE - INNER

$10.99

$

In Stock, Qty 20+

0
