CS-355 T - Echo Chainsaw (SN: C85015001001 - C85015999999) Engine Parts Diagram

Chainsaw

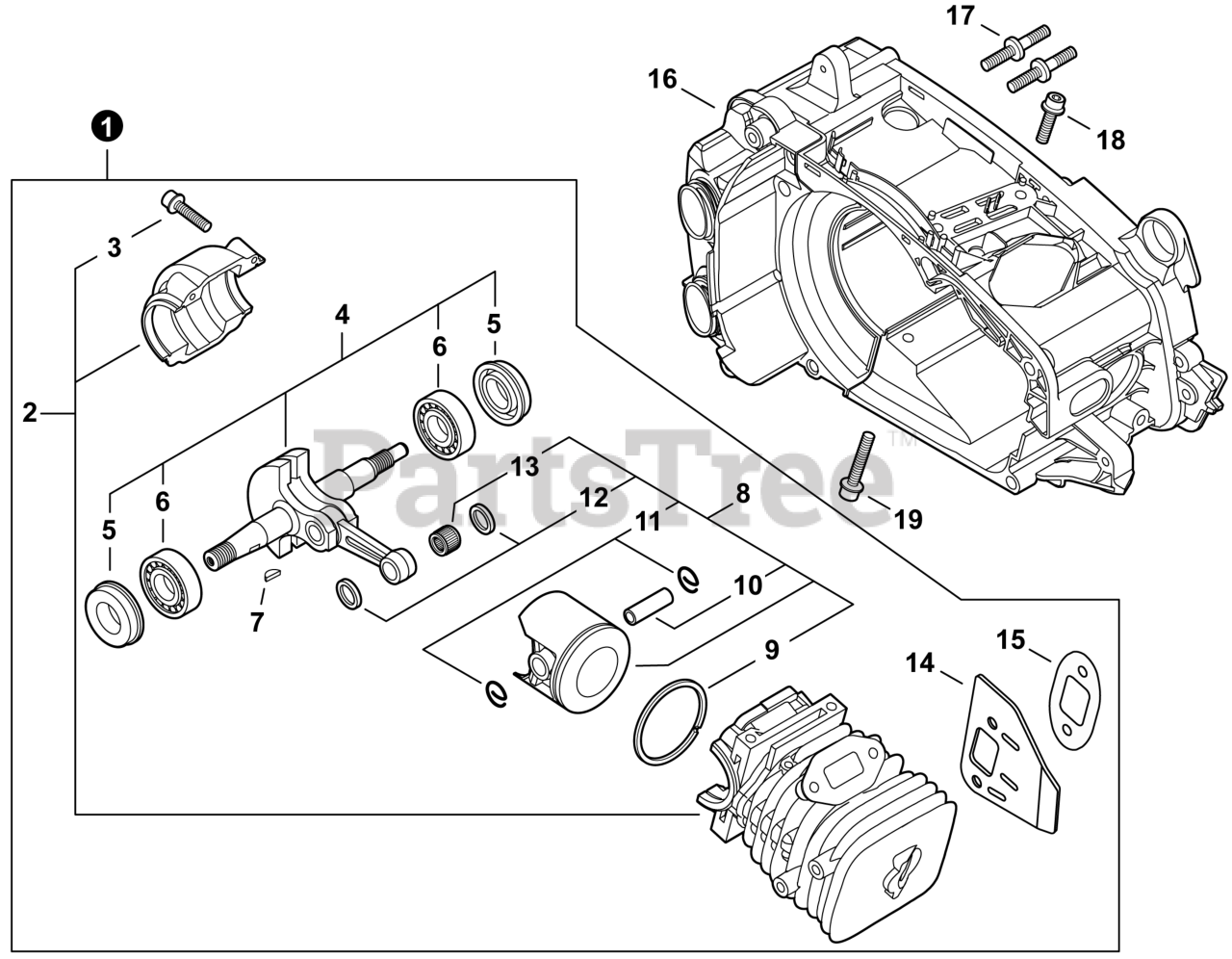

Engine Parts Diagram

  • Title

1

Echo SB1128

SHORT BLOCK

Note: Includes items 2-15

$222.99

$

Usually ships in 2-4 days

0

2

Echo P021041760

CRANKCASE SET

Note: Includes item 3

$161.99

$

Usually ships in 2-4 days

0

3

Echo V805000210

BOLT, TORX 5x20

$1.49

$

In Stock, Qty 20+

0

4

Echo P021039160

CRANKSHAFT ASSY

Note: Includes items 5-6

$165.99

$

Usually ships in 2-4 days

0

5

Echo V505000011

SEAL, OIL 12

$7.99

$

In Stock, Qty 9

0

6

Echo 9403536201

BEARING, BALL 6201

$7.99

$

In Stock, Qty 12

0

7

Echo 10014212330

KEY, WOODRUFF

$1.99

$

In Stock, Qty 20+

0

8

Echo P021041770

PISTON KIT

Note: Includes items 9-13

$67.99

$

Usually ships in 2-4 days

0

9

Echo A101000650

RING, PISTON

$7.99

$

Usually ships in 2-4 days

0

10

Echo 10001315330

PIN, PISTON

$6.49

$

Usually ships in 2-4 days

0

11

Echo 10001504630

RING, SNAP

$0.99

$

In Stock, Qty 20+

0

12

Echo 10001460930

WASHER, THRUST

$4.99

$

Usually ships in 2-4 days

0

13

Echo V553000130

BEARING, NEEDLE 8

$13.99

$

Usually ships in 2-4 days

0

14

Echo A312000070

HEAT SHIELD, EXHAUST

$5.49

$

Usually ships in 2-4 days

0

15

Echo V104001960

GASKET, EXHAUST

$4.99

$

Usually ships in 2-4 days

0

16

Echo A190001156

COVER, ENGINE

$66.99

$

In Stock, only 3 left!

0

17

Echo V225000262

STUD, GUIDE BAR

$3.99

$

Usually ships in 2-4 days

0

18

Echo V805000210

BOLT, TORX 5x20

$1.49

$

In Stock, Qty 20+

0

19

Echo V805000180

BOLT, TORX 5x30

$1.49

$

In Stock, only 3 left!

0
