CS-360 T - Echo Chainsaw (SN: C04412001001 - C04412999999) Engine, Short Block -- SB1086 Parts Diagram

Chainsaw

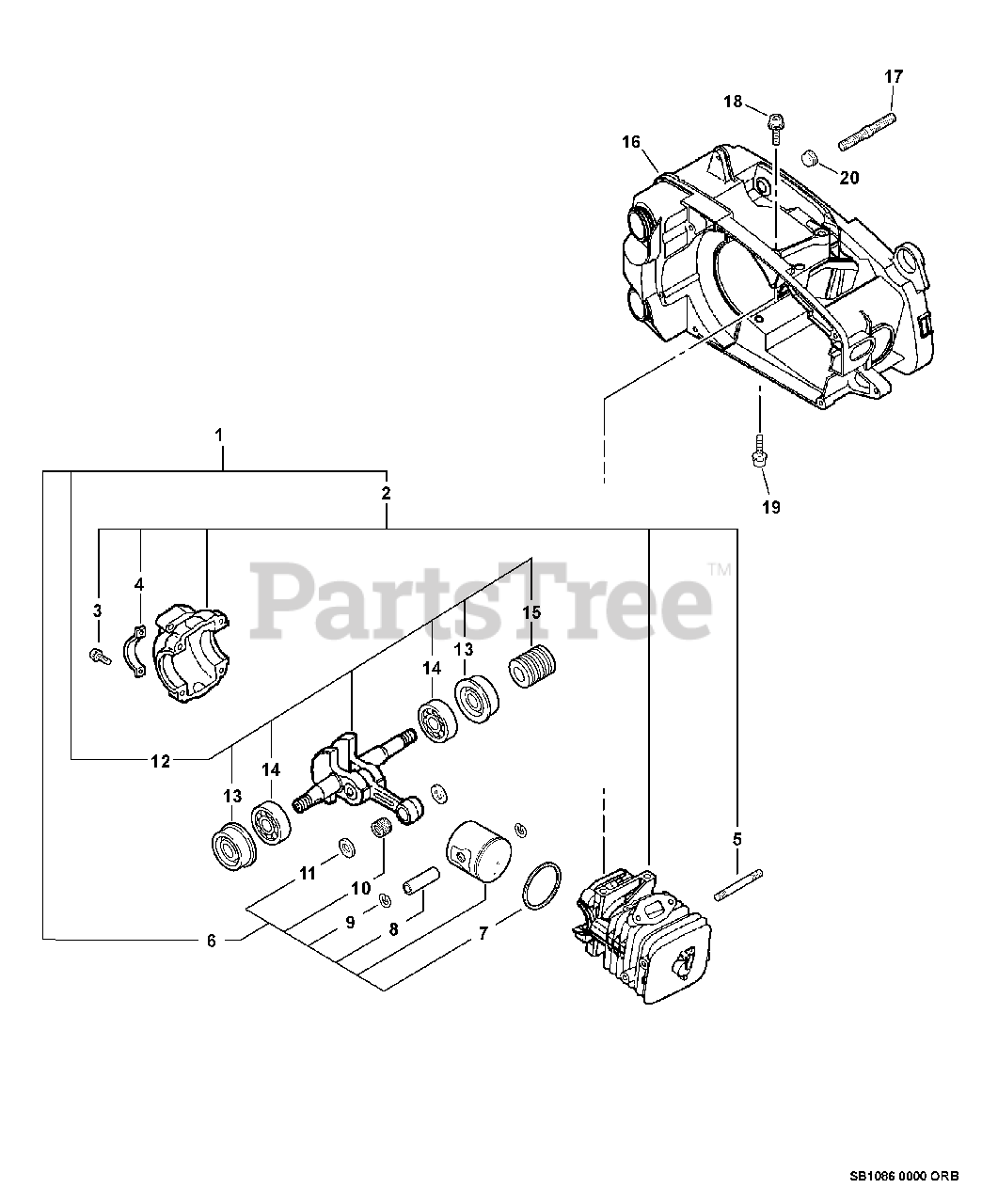

Engine, Short Block -- SB1086 Parts Diagram

  • Title

1

Echo SB1086

SHORT BLOCK -- SB1086

Note: Includes ITEMS 2-15

$241.99

$

Usually ships in 2-4 days

0

2

Echo P021009032

CRANKCASE KIT

Note: Includes ITEMS 3-5

$157.99

$

Usually ships in 2-4 days

0

3

Echo 9112805025

SCREW - 5X25

$1.49

$

Usually ships in 2-4 days

0

4

Echo V150001670

BRACKET, CRANKCASE

$2.49

$

Usually ships in 2-4 days

0

5

Echo V223000000

STUD

$4.49

$

In Stock, only 2 left!

0

6

Echo P021009040

PISTON KIT
(Superseded to Discontinued)

Note: Includes ITEMS 7-11

$

$

Not available

7

Echo A101000110

RING, PISTON

$6.99

$

In Stock, only 1 left!

0

8

Echo 10001315330

PIN, PISTON

$7.49

$

Usually ships in 2-4 days

0

9

Echo 10001504630

RING, RETAINING

$0.99

$

In Stock, Qty 20+

0

10

Echo V553000040

BEARING, NEEDLE - 8

$10.99

$

Usually ships in 2-4 days

0

11

Echo 10001460930

SPACER, PISTON

$5.49

$

Usually ships in 2-4 days

0

12

Echo P021008992

CRANKSHAFT ASSY
(Superseded to P021008993)

Note: Includes ITEMS 13-15

$180.99

$

Usually ships in 2-4 days

0

13

Echo V505000011

SEAL, OIL - 12

$8.49

$

In Stock, Qty 8

0

14

Echo 9403536201

BEARING, BALL - 6201

$8.99

$

In Stock, Qty 19

0

15

Echo V652000010

GEAR - WORM

$12.99

$

In Stock, only 2 left!

0

16

Echo A190000790

COVER, ENGINE - ORANGE
(Superseded to A190000791)

$34.99

$

In Stock, only 2 left!

0

17

Echo V224000031

STUD, GUIDE BAR

$1.99

$

In Stock, Qty 20+

0

18

Echo 90010605020

SCREW - 5X20

$1.49

$

In Stock, Qty 5

0

19

Echo 90010605030

SCREW - 5X30

$0.99

$

In Stock, Qty 5

0

20

Echo 16391130130

PLUG

$1.99

$

Usually ships in 2-4 days

0
