CS-360 T - Echo Chainsaw (SN: C09713001001 - C09713999999) Fuel System, Auto-Oiler S/N: C09713002801 - C09713999999 Parts Diagram

Chainsaw

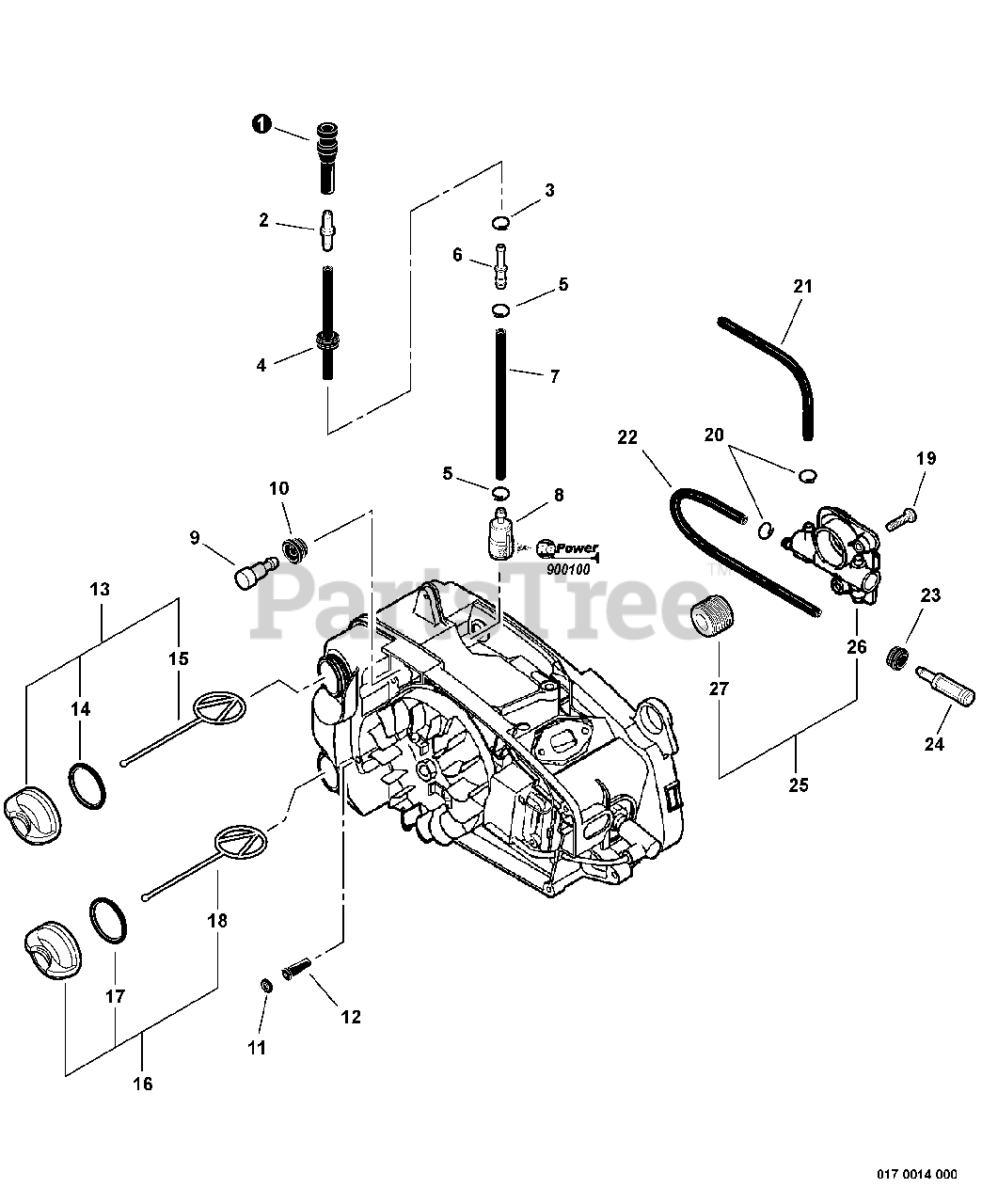

Fuel System, Auto-Oiler S/N: C09713002801 - C09713999999 Parts Diagram

  • Title

1

Echo V470000691

PIPE, FUEL

$3.49

$

In Stock, only 1 left!

0

2

Echo V186000510

CONNECTOR, PIPE

$1.99

$

In Stock, Qty 20+

0

3

Echo V490001271

CLIP 5

$0.99

$

In Stock, only 4 left!

0

4

Echo V470000712

PIPE ASSY, FUEL
(Superseded to V470000714)

$8.99

$

Usually ships in 2-4 days

0

5

Echo V490001240

CLIP Ø6

$0.99

$

In Stock, Qty 8

0

6

Echo V186000520

CONNECTOR, PIPE Ø5×Ø3.5

$0.99

$

In Stock, Qty 20+

0

7

Echo V471003820

PIPE, FUEL 3×5×95

Note: RePower BULK OPTION: 90014

$

$

Not available

8

Echo 13120514931

FILTER, FUEL
(Superseded to A369000470)

Note: Included In RePower KIT

$9.99

$

In Stock, Qty 20+

0

9

Echo A356000031

VENT ASSY

$9.49

$

In Stock, Qty 20+

0

10

Echo V137000000

GROMMET, FUEL
(Superseded to V137000001)

$1.99

$

In Stock, Qty 20+

0

11

Echo 900724-00004

O-RING S-4
(Superseded to 90072400004)

$1.99

$

In Stock, only 3 left!

0

12

Echo 436114-13930

VENT ASSY
(Superseded to 43611413930)

$7.49

$

In Stock, Qty 6

0

13

Echo P021038080

CAP ASSY, FUEL - ORANGE

Note: Includes ITEMS 11-12

$7.49

$

In Stock, Qty 8

0

14

Echo V581000590

O-RING

$1.49

$

In Stock, Qty 19

0

15

Echo A365-000050

CONNECTOR, CAP L= 60 MM
(Superseded to A365000050)

$2.49

$

In Stock, only 1 left!

0

16

Echo P021-005581

CAP ASSY - BLACK
(Superseded to P021005581)

Note: Includes ITEMS 14-15

$8.49

$

In Stock, Qty 13

0

17

Echo 90072000018

O-RING 18

$2.49

$

In Stock, only 1 left!

0

18

Echo A365-000050

CONNECTOR, CAP L= 60 MM
(Superseded to A365000050)

$2.49

$

In Stock, only 1 left!

0

19

Echo 900238-04012

SCREW 4×12

$0.99

$

In Stock, Qty 20+

0

20

Echo V490001230

CLIP Ø6.5 MM

$0.99

$

In Stock, Qty 20+

0

21

Echo V471000760

PIPE 3×6×90 MM
(Superseded to V471000761)

Note: RePower BULK OPTION: 90015

$1.99

$

In Stock, only 3 left!

0

22

Echo 13011005260

PIPE 3×6×185 MM BLACK
(Superseded to 13011005261)

Note: RePower BULK OPTION: 90014

$3.49

$

In Stock, Qty 20+

0

23

Echo 13211501461

GROMMET
(Superseded to 13211501462)

$1.99

$

In Stock, Qty 20+

0

24

Echo 43620502832

FILTER, OIL

$8.99

$

Usually ships in 2-4 days

0

25

Echo P021001980

AUTO-OILER KIT

Note: Includes ITEMS 23-24

$81.99

$

In Stock, only 1 left!

0

26

Echo C022000000

AUTO-OILER ASSY

$68.99

$

In Stock, only 2 left!

0

27

Echo V652000010

GEAR, WORM

$13.99

$

In Stock, only 2 left!

0

28

Echo 900100

REPOWER TUNE-UP KIT
(Superseded to 90159)

$27.99

$

In Stock, only 2 left!

0

28

Echo 900100C

REPOWER TUNE-UP KIT
(Superseded to 90159)

Note: CANADA MODELS

$27.99

$

In Stock, only 2 left!

0
