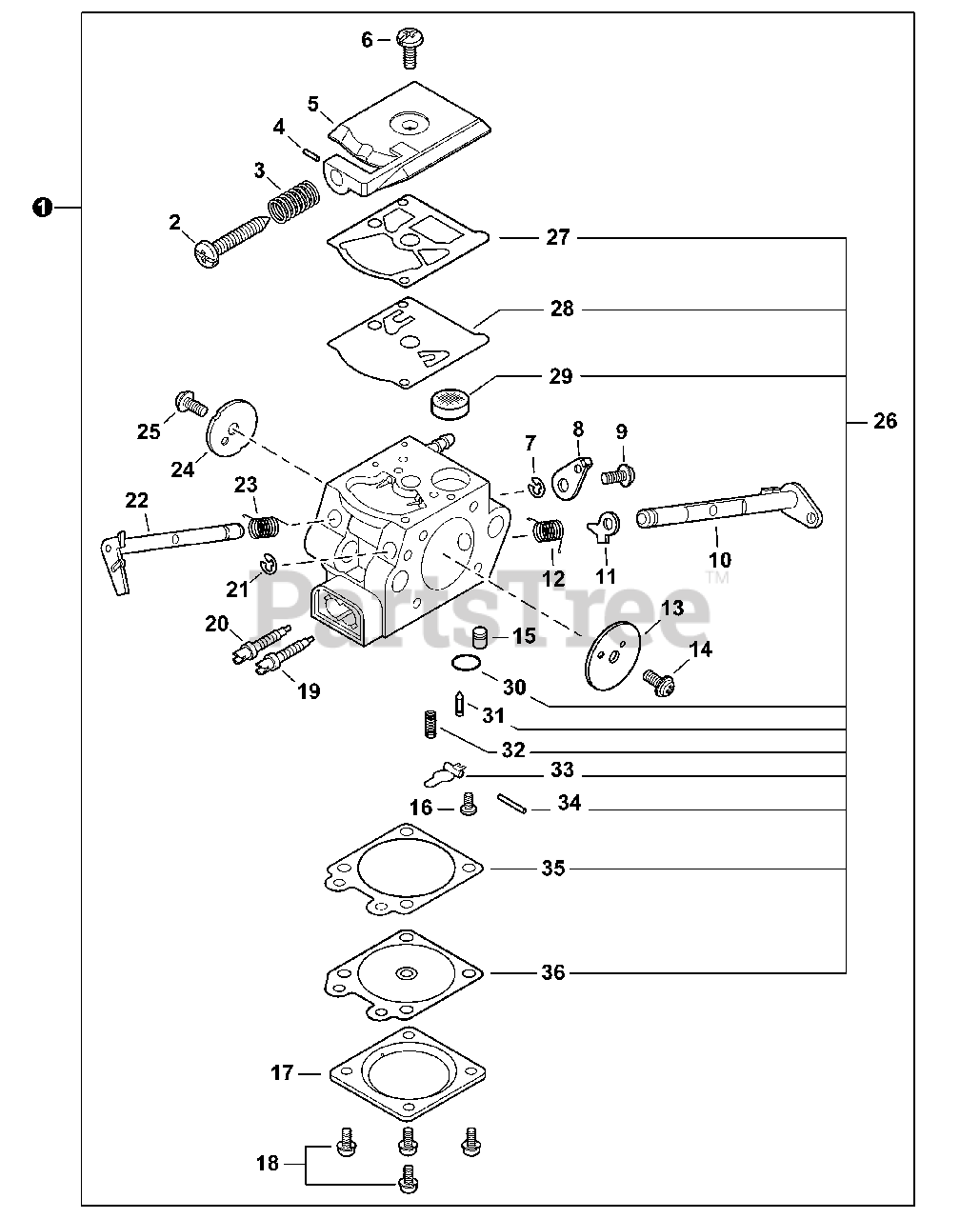

CS-360 TES - Echo Chainsaw (SN: 37001001 - 37999999) Carburetor Parts Diagram

Chainsaw

Carburetor Parts Diagram

  • Title

1

Echo A021004210

CARBURETOR C1Q-K120A

Note: Includes ITEMS 2-36

$106.99

$

Usually ships in 2-4 days

0

2

Echo 12534408560

SCREW

$4.49

$

Usually ships in 2-4 days

0

3

Echo 12533333330

SPRING

$1.99

$

Usually ships in 2-4 days

0

4

Echo 12537813930

PIECE, FRICTION

$1.99

$

Usually ships in 2-4 days

0

5

Echo P005003180

COVER, PUMP

$13.99

$

Usually ships in 2-4 days

0

6

Echo 12531013930

SCREW

$0.99

$

In Stock, only 1 left!

0

7

Echo 12532713930

CLIP

$0.99

$

In Stock, Qty 7

0

8

Echo P005003150

LEVER, THROTTLE

$

$

Currently unavailable

9

Echo 12534813930

SCREW

$0.99

$

In Stock, Qty 6

0

10

Echo P005002390

SHAFT, CHOKE

$16.99

$

Usually ships in 2-4 days

0

11

Echo P005003230

LEVER, CHOKE

$

$

Currently unavailable

12

Echo P005000880

SPRING, CHOKE RETURN

$4.49

$

Usually ships in 2-4 days

0

13

Echo P005003240

VALVE, CHOKE

$

$

Currently unavailable

14

Echo 12531451230

SCREW 3×4.5

$1.49

$

In Stock, only 1 left!

0

15

Echo P005003130

NOZZLE, CHECK VALVE

$

$

Currently unavailable

16

Echo 12533913930

SCREW

$1.99

$

In Stock, only 4 left!

0

17

Echo P005003210

COVER, METERING DIAPHRAGM

$12.99

$

Usually ships in 2-4 days

0

18

Echo P005003220

SCREW

$1.99

$

Usually ships in 2-4 days

0

19

Echo P005002370

NEEDLE, HIGH SPEED

$12.99

$

Usually ships in 2-4 days

0

20

Echo P005002380

NEEDLE, IDLE

$12.99

$

Usually ships in 2-4 days

0

21

Echo 12532715130

E-RING

$0.99

$

In Stock, Qty 7

0

22

Echo P005003140

SHAFT, THROTTLE

$

$

Currently unavailable

23

Echo P005000790

SPRING

$4.99

$

Usually ships in 2-4 days

0

24

Echo P005003160

VALVE, THROTTLE

$

$

Currently unavailable

25

Echo P005003170

SCREW

$1.99

$

Usually ships in 2-4 days

0

26

Echo P005003260

REPAIR KIT

Note: Includes ITEMS 27-36

$31.99

$

Usually ships in 2-4 days

0

27

GASKET, PUMP

$

$

Not available

28

DIAPHRAGM, PUMP

$

$

Not available

29

SCREEN, FUEL INLET

$

$

Not available

30

PLUG, WELCH

$

$

Not available

31

VALVE, INLET NEEDLE

$

$

Not available

32

SPRING, COIL

$

$

Not available

33

LEVER, METERING

$

$

Not available

34

PIN, METERING LEVER

$

$

Not available

35

GASKET, METERING DIAPHRAGM

$

$

Not available

36

DIAPHRAGM, METERING

$

$

Not available
